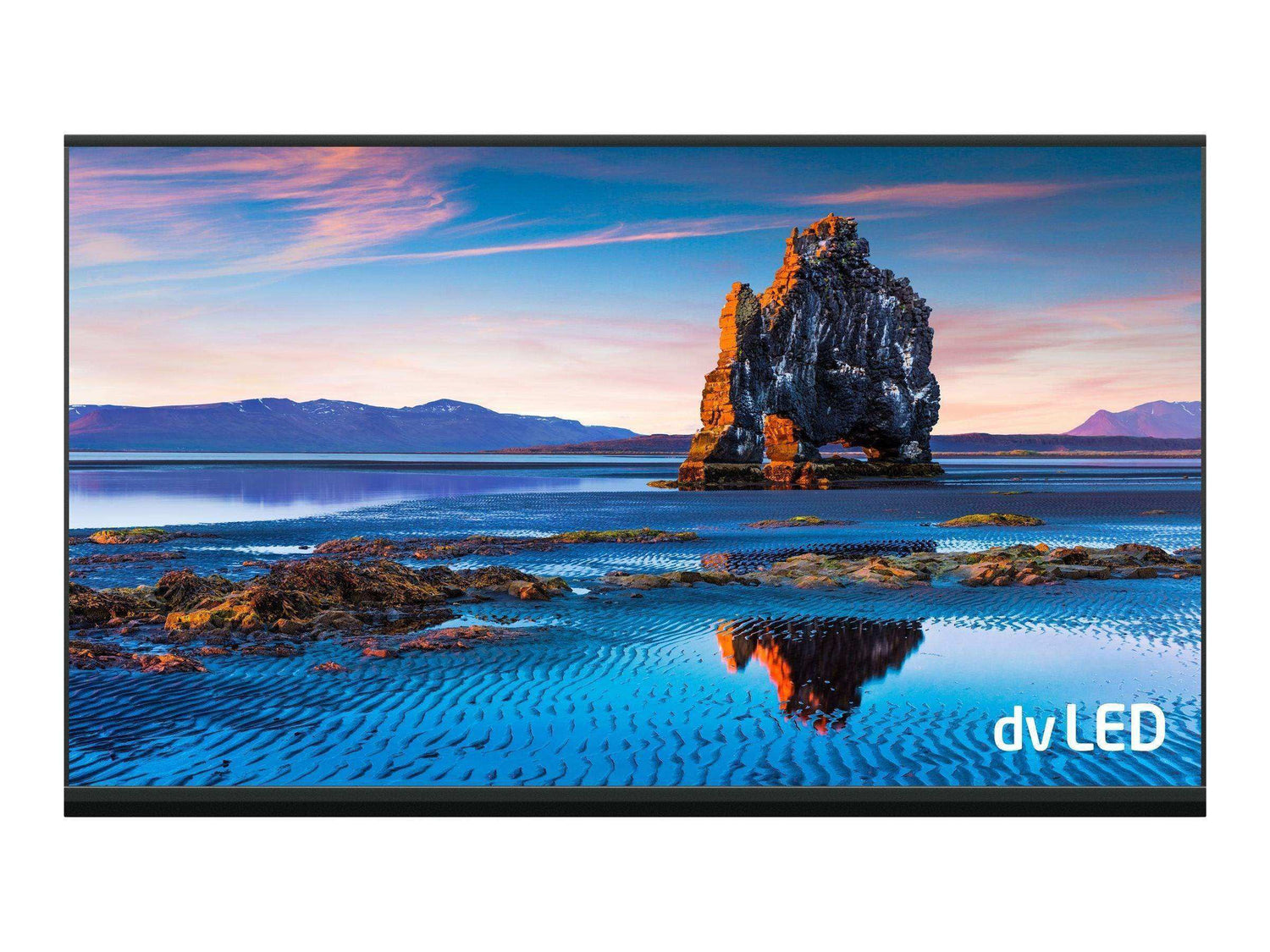

Sharp LED-FE015I3-137 – 137" FHD 1.58mm LED Video Wall Kit with Installation

Product Overview

The Sharp LED-FE015I3-137 is a 137-inch Full HD direct-view LED video wall kit that includes standard installation — making it one of the most accessible large-format LED video wall solutions available for commercial AV projects. Built on the FE-Series 1.58mm pixel pitch platform, this system delivers 1920x1080 resolution across a 16:9 seamless canvas at 700 cd/m² typical brightness. The installation-inclusive bundle reduces procurement complexity for organizations that need a single-vendor solution for both equipment and deployment, making it well-suited for boardrooms, auditoriums, training rooms, and government spaces with 8-foot or greater viewing distances.

Product Description

The LED-FE015I3-137 is built around Sharp's LED-FE015i2 module, a 1.58mm pixel pitch FE-Series cabinet with 3-1 SMD black pixel configuration and a 4000:1 contrast ratio. Brightness reaches 700 cd/m² typical with a 770 cd/m² peak, suitable for ambient-lit conference environments. Refresh rate reaches up to 3840 Hz, and the 256-level dimming capability allows precise brightness calibration for varied ambient conditions. The complete bundle includes all physical installation components — LED modules, LED controller, power bar, 5x5 wall mount, overframe kit, spare parts kit, and pixel card removal tool — plus standard installation labor. Front-serviceable modules and hot-swappable pixel cards provide long-term serviceability. At 3.2 inches installed depth, the system meets ADA clearance requirements. The 80°/80° horizontal and vertical viewing angles ensure consistent image quality across wide-angle seating arrangements typical in multi-row auditoriums and training rooms.

Key Features

• Standard Installation Included — Unlike most LED video wall bundles, the LED-FE015I3-137 includes standard installation labor, reducing total project cost and procurement steps.
• 137-Inch Seamless Canvas — Full HD 1920x1080 across a bezel-free 16:9 direct-view LED surface.
• 1.58mm Pixel Pitch — Appropriate for viewing distances of 3 to 8 feet in boardrooms, auditoriums, and multi-purpose spaces.
• 700 cd/m² Typical Brightness — 770 cd/m² peak for consistent visibility in ambient-lit commercial environments.
• 4000:1 Contrast Ratio — 3-1 SMD black pixel configuration delivers accurate color and depth.
• 80°/80° Viewing Angles — Wide-angle uniformity supports large room configurations with off-center seating.
• Up to 3840 Hz Refresh Rate — Clean motion rendering for video presentations, live feeds, and dynamic data.
• Front-Serviceable, Hot-Swap Pixel Cards — On-site maintenance without rear access or display shutdown.
• Complete Bundle — LED modules, controller, power bar, 5x5 wall mount, overframe kit, spare parts, and tools all included.
• 3.2" Installed Depth — ADA-compliant wall-mount profile.
• 100,000-Hour LED Lifetime — Long service life for permanent commercial installations.
• 16-Bit Color, 281 Trillion Colors — Accurate wide-gamut rendering across color temperature range of 3000K–9500K.

Typical Applications

• Boardroom
• Conference room
• All-hands room
• Training room
• Multi-purpose room
• House of worship
• Government space
• Lobby display

Technical Specifications

Frequently Asked Questions

What does "standard installation" include?
Standard installation covers mounting structure assembly, module installation, controller configuration, and basic commissioning at a standard commercial site. Non-standard structural conditions (concrete walls, high ceilings requiring lifts, conduit runs) may require supplemental labor quotes. Contact Creation Networks for a site-specific assessment.

What is the difference between LED-FE015I3-137 and LED-FE015I2-137?
Both use the same FE015i2 module and produce identical image performance. The I3 variant (this product) includes standard installation labor in the purchase price. The I2 variant (LED-FE015I2-137) is the hardware-only kit at a lower price point.

What is the optimal viewing distance for 1.58mm pixel pitch?
For the FE015 module, Sharp recommends 3 to 8 feet as the comfortable viewing range. At 137 inches, this covers typical boardroom and conference room seating arrangements.

Is rear wall access required for maintenance?
No. All modules are front-serviceable. Pixel cards are also hot-swappable, meaning individual cards can be replaced without powering down the display.

Can the system be expanded or tiled with additional modules later?
The LED-FE015I3-137 is a fixed 5x5 module configuration. Expansion requires a separate system design and installation. Contact Creation Networks for custom configuration support.
