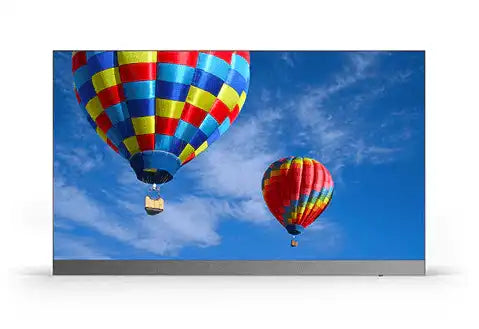

Sharp LED-E015i-135 – 135" FHD 1.56mm E-Series LED Video Wall Kit
Product Overview
The Sharp LED-E015i-135 is a 135-inch Full HD direct-view LED video wall kit from Sharp's cost-accessible E-Series platform. Using a 1.56mm pixel pitch module, it delivers 1920x1080 resolution across a seamless 16:9 canvas with standard installation included. The E-Series provides access to Sharp/NEC LED quality and commercial support at a competitive price point, making the 135-inch size a practical option for boardrooms, training rooms, multi-purpose spaces, and auditoriums with viewing distances of approximately 4 to 8 feet.
Product Description
The LED-E015i-135 uses a 1.56mm pitch 3-1 SMD black pixel module producing 1920x1080 FHD at 135 inches. Brightness is rated at 600 cd/m² typical and 660 cd/m² peak, with a 4000:1 contrast ratio and 70°/70° viewing angles. Refresh rate reaches 3840 Hz and 16-bit color processing supports 281 trillion displayable colors. The bundle includes LED modules, LED controller, power bar, wall mount, overframe kit, spare parts kit, and standard installation labor. All modules are front-serviceable and pixel cards are hot-swappable.
Key Features
- E-Series Value Platform — Sharp/NEC build quality and service support at a more accessible price than FE/FA-Series configurations.
- 135-Inch FHD Canvas — 1920x1080 seamless 16:9 direct-view LED at 135 inches diagonal.
- 1.56mm Pixel Pitch — Suitable for viewing distances of 4 to 8 feet in boardrooms and multi-purpose rooms.
- 600 cd/m² Typical Brightness — 660 cd/m² peak for consistent visibility in commercial environments.
- 4000:1 Contrast Ratio — Accurate color rendering and dark-level performance.
- Standard Installation Included — Installation labor is included with this kit.
- Front-Serviceable, Hot-Swap Pixel Cards — On-site maintenance from the front face during live operation.
- Up to 3840 Hz Refresh Rate — Flicker-free rendering.
- 100,000-Hour LED Lifetime — Long-life industrial LED components.
Typical Applications
- Boardroom
- Conference room
- Training room
- Multi-purpose room
- House of worship
- Lobby display
Technical Specifications
| Spec | Value |
|---|---|
| Model | LED-E015i-135 |
| Screen Size | 135 inches diagonal |
| Aspect Ratio | 16:9 |
| Resolution | 1920 x 1080 (Full HD) |
| Pixel Pitch | 1.56 mm |
| Pixel Configuration | 3-1 SMD (Black) |
| Module Resolution | 384 x 216 |
| Brightness (Typical) | 600 cd/m² |
| Brightness (Maximum) | 660 cd/m² |
| Contrast Ratio | 4000:1 |
| Refresh Rate | Up to 3840 Hz |
| Viewing Angle | 70° H / 70° V |
| Color Processing | 16-bit (281 Trillion colors) |
| Color Temperature Range | 3000K – 9500K |
| Dimming | 256 levels |
| LED Lifetime | 100,000 hours |
| Active Screen Area | 118 x 66.5 in. (3000 x 1688 mm) |
| Operating Temperature | -4° to 104°F (-20° to 40°C) |
| IP Rating | IP20 (Indoor) |
| Certifications | ETL, FCC, CE, RoHS |
| Warranty | 3 years |
| Installation | Standard installation included |
Frequently Asked Questions
What is the optimal viewing distance for this display?
Approximately 4 to 8 feet for the 1.56mm pixel pitch at 135 inches diagonal.
Is installation included?
Yes. Standard installation labor is included. For non-standard site conditions, contact Creation Networks for a supplemental quote.
How does E-Series compare to FE-Series?
E-Series is a cost-optimized LED tier from Sharp/NEC with slightly simplified module architecture. FE-Series uses cableless internal connectors and typically offers higher brightness specs. Both carry full 3-year Sharp/NEC commercial warranty and service support.
