Sharp LED-FE019i2-110 – 110" FE Series HD dvLED Video Wall Kit - Discontinued

Product Overview

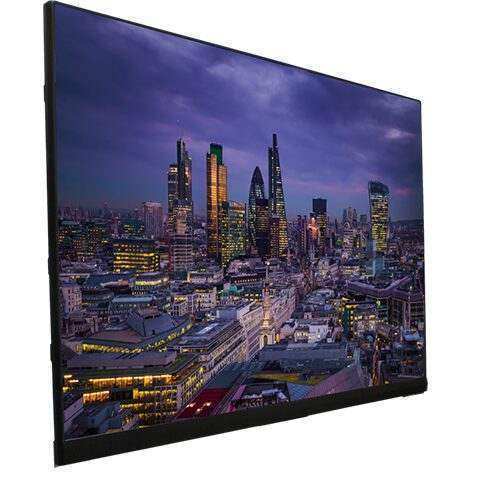

The Sharp LED-FE019i2-110 is a 110-inch HD direct view LED video wall kit built for boardrooms, auditoriums and premium commercial signage where a bezel-free image and a strong return on investment matter. Using Sharp/NEC's FE Series 1.90mm pixel pitch LED-FE019i2 modules, the kit delivers a 1280x720 image at 700 cd/m2 brightness, designed for viewing from 4 feet to an optimal 10 feet. The complete dvLED video wall bundle ships with the controller, power bar, framing, mounting structure and spare parts, giving AV integrators everything required for a finished commercial LED display installation in one SKU.

Product Description

The FE Series brings fine pitch dvLED imaging to cost-effective deployments in meeting spaces and exclusive signage. With a depth of just 3.2 inches installed and complete internal cabling — no external cables between cabinets — the wall presents a sleek profile and a bezel-free viewing experience that aging tiled LCD video walls cannot match. The 16:9 aspect ratio plays standard HD content natively, saving content creation time, and the small 16:9 modules give designers flexibility to fit the available wall space.

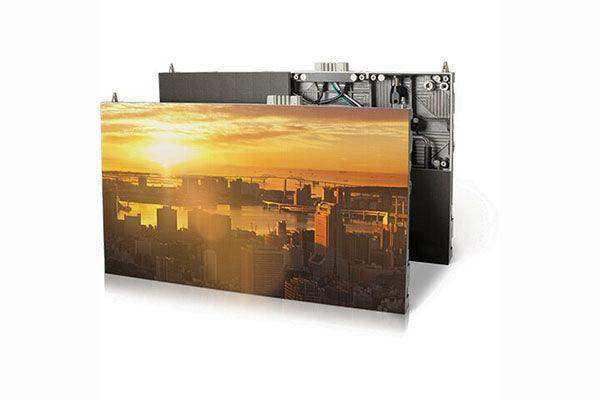

Designed and tested in Germany, the FE Series uses multi-color LEDs that deliver excellent viewing angles, consistent vibrant color and uniform brightness across the entire wall. The intelligent cabinet design even allows future upgrade to higher resolutions, protecting the investment as content requirements evolve. The complete kit includes the LED controller, 16 cabinets carrying 128 pixel cards, a 4x4 overframe kit, power bar, 4x4 wall mount, pixel card removal tool and a spare parts kit. Modules are fully front-serviceable, and pixel cards are hot-swappable so they can be replaced without turning the display off — critical for flush-mounted installations and always-on operations. HDMI, DVI-D and 3G-SDI inputs with LAN and GenLock control integrate cleanly with commercial AV control systems and signage players, and the kit is backed by a 3-year limited warranty.

Note: Price does not include installation. Contact Creation Networks for turnkey design, installation and commissioning pricing.

Key Features

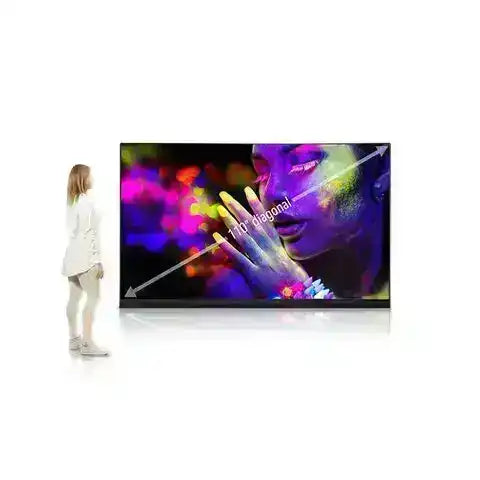

• 110" Bezel-Free HD Image — A single 1280x720 dvLED canvas replaces tiled LCD walls with a completely uniform picture.
• 1.90mm Pixel Pitch — Optimized for viewing from 4 feet to an ideal 10 feet, matching boardroom and auditorium sightlines.
• High Brightness — 700 cd/m2 typical output keeps content vivid in bright meeting rooms and retail interiors.
• Complete Video Wall Kit — Ships with LED controller, 16 cabinets, 128 pixel cards, 4x4 overframe, power bar, wall mount, removal tool and spare parts.
• Internal Cabling Design — No external cables between cabinets produces a clean build and fewer failure points.

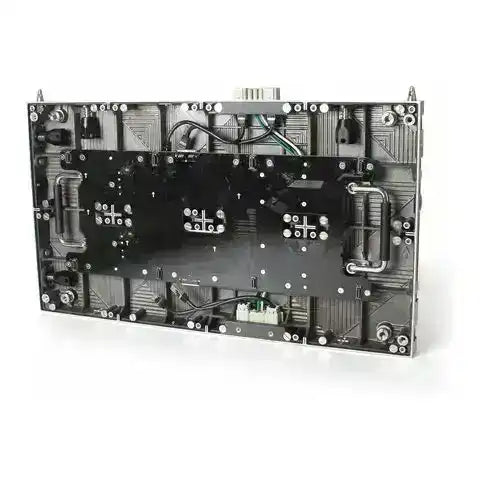

• Front-Serviceable, Hot-Swappable — Pixel cards are replaced from the front without powering down, enabling flush wall mounting.
• ADA-Compliant Depth — 3.2-inch installed depth meets ADA protrusion limits in corridors and public spaces.
• Upgrade-Ready Cabinets — The intelligent cabinet design supports future upgrades to higher resolution modules.
• 3-Year Limited Warranty — Commercial-grade coverage from Sharp/NEC with planning and maintenance support available.

Typical Applications

• Boardroom
• Auditorium
• Conference room
• Commercial meeting space
• House of worship
• Government space
• Training room

Technical Specifications

Frequently Asked Questions

What ships with the LED-FE019i2-110 dvLED kit?

The bundle includes the LED controller, 16 LED cabinets with 128 pixel cards, a 4x4 overframe kit, power bar, 4x4 wall mount, pixel card removal tool and a spare parts kit. Professional installation is required and not included in the product price; Creation Networks can quote turnkey installation.

Is 1280x720 resolution sufficient for a boardroom display?

For presentations, dashboards and video viewed from 4 to 10 feet on a 110-inch canvas, HD resolution at 1.9mm pitch produces a clear, uniform image. If your content demands Full HD at closer distances, consider the 110" FE Series 1.26mm Full HD kit.

Can the wall be upgraded to a higher resolution later?

Yes. The FE Series intelligent cabinet design allows upgrade to higher resolution pixel cards, protecting your investment as content requirements grow.

How does the kit integrate with an AV control system?

The included LED controller accepts HDMI, DVI-D and 3G-SDI sources and provides LAN and GenLock connections for integration with commercial AV control processors, signage players and centralized monitoring.

Can the display be serviced after flush wall mounting?

Yes. Modules are fully front-serviceable and pixel cards are hot-swappable, so technicians replace components from the front while the display stays powered — no rear access required.

What warranty covers the FE Series?

The LED-FE019i2-110 carries a 3-year limited warranty from Sharp/NEC. Contact Creation Networks for extended service plans and post-installation maintenance options.
