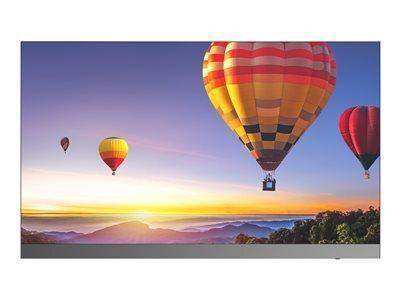

Sharp LED-FE012i2-110IN – 110" FE Series FHD dvLED Kit with Installation
Sharp LED-FE012i2-110IN – 110" FE Series FHD dvLED Kit with Installation is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sharp LED-FE012i2-110IN – 110" FE Series FHD dvLED Kit with In...
Product Overview
The Sharp LED-FE012i2-110IN is a 110-inch Full HD direct view LED video wall kit with standard installation included, making it one of the most straightforward paths to a turnkey dvLED display for boardrooms, broadcast environments and commercial signage. Built on Sharp/NEC's FE Series 1.26mm fine pixel pitch LED-FE012i2 modules, the kit delivers a 1920x1080 image at 700 cd/m2 brightness, designed for viewing from 3 to 7 feet. Everything required for a complete commercial LED video wall installation — modules, controller, mounting structure, overframe and spare parts — ships in one bundle, with professional installation built into the price.
Product Description
The FE Series brings fine pitch dvLED imaging to cost-effective deployments without sacrificing the performance commercial AV buyers expect. The 1.26mm pixel pitch resolves crisp Full HD detail at close viewing distances, suiting boardrooms, situational awareness rooms, broadcast studios, retail and airport signage, and museum installations. Improved multi-color LED performance delivers better contrast, viewing angles, brightness uniformity and color uniformity than earlier-generation budget dvLED products.
The module design requires no external cables between cabinets, simplifying installation and reducing potential failure points. All modules are front-serviceable, and pixel cards are hot-swappable so they can be replaced without turning the display off — essential for flush-mount installations and always-on operations. The shallow 3.2-inch installed depth and reduced weight allow flexible placement while meeting ADA protrusion requirements in public spaces. The included LED controller provides HDMI, DVI-D and 3G-SDI inputs with LAN, RS-232, USB and GenLock control for integration with commercial AV control systems and video processors. Because this IN-series SKU includes standard installation, project budgeting is simpler: one line item covers the hardware kit, spare parts and professional install, backed by a 3-year parts and labor limited warranty.
Key Features
- Standard Installation Included — Professional installation is built into the price, giving procurement teams a single turnkey line item.
- 1.26mm Fine Pixel Pitch — Resolves sharp Full HD content at 3 to 7 foot viewing distances for close-proximity environments.
- 110" Full HD Canvas — Native 1920x1080 resolution in 16:9 plays standard content without reformatting.
- Complete Video Wall Kit — Includes LED modules, controller, power bar, 4x4 wall mount, 4x4 overframe kit, pixel card removal tool and spare parts.
- Front-Serviceable Modules — All maintenance is performed from the front, enabling installation in areas without rear access.
- Hot-Swappable Pixel Cards — Cards are replaced without powering down the display, minimizing downtime.
- ADA-Compliant Depth — 3.2-inch installed depth meets ADA protrusion limits in corridors and lobbies.
- Improved LED Performance — Better contrast, viewing angles and brightness/color uniformity across the entire wall.
- 3-Year Parts and Labor Warranty — Commercial-grade coverage from Sharp/NEC.
Typical Applications
- Boardroom
- Conference room
- Broadcast studio
- Commercial meeting space
- Government space
- Auditorium
- Training room
Technical Specifications
| Panel Technology | Direct View LED |
| Viewable Image Size | 110 in. diagonal |
| Native Resolution | 1920 x 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 1.26 mm |
| Pixel Configuration | 3-in-1 SMD (Black) |
| Module Resolution | 480 x 270 |
| Brightness | 700 cd/m2 typical / 770 cd/m2 max |
| Contrast Ratio (typical) | 4000:1 |
| Viewing Angle | 80/80 horizontal, 80/80 vertical |
| Refresh Rate | Up to 3840 Hz |
| Dimming | 256 levels |
| Color Processing | Up to 16-bit (281 trillion colors) |
| Color Temperature | 3000–9500K (6500K typical) |
| Lifetime | 100,000 hours |
| Inputs | 1 x HDMI, 1 x DVI-D, 1 x 3G-SDI |
| External Control | LAN, RS-232, USB, GenLock |
| Power Consumption | 912 W typical / 2000 W max / 448 W min |
| Active Screen Area | 95.6 x 54 in. (2432 x 1368 mm) |
| Dimensions (WxHxD) | 95.6 x 58.6 x 3.2 in. (2432 x 1488 x 81 mm) |
| Net Weight | 401.3 lbs. (182 kg) |
| Operating Temperature | -4° to 104°F (-20° to 40°C) |
| Serviceability | Front service |
| IP Rating | IP20 (indoor) |
| Certifications | CCC, CE, ETL, FCC Class A, RoHS |
| Included Accessories | LED controller, 4x4 overframe kit, pixel card removal tool, power bar, spare parts kit, 4x4 wall mount |
| Warranty | 3-year limited (parts and labor) |
Frequently Asked Questions
Does this kit really include installation?
Yes. The LED-FE012i2-110IN is the installation-inclusive SKU of the 110-inch FE Series kit, covering standard professional installation in addition to the LED modules, controller, mounting structure, overframe, power bar and spare parts. Contact Creation Networks to confirm site requirements and scheduling.
How close can viewers be to a 1.26mm pixel pitch wall?
Sharp/NEC rates this kit for comfortable viewing from approximately 3 to 7 feet, making it suitable for boardrooms, control rooms and close-proximity signage where viewers stand near the display.
What sources and control systems does the wall support?
The included LED controller accepts HDMI, DVI-D and 3G-SDI inputs and provides LAN, RS-232, USB and GenLock connections, allowing integration with commercial AV control processors, room scheduling systems and centralized monitoring.
Can the display be serviced after flush wall mounting?
Yes. Modules are fully front-serviceable and pixel cards are hot-swappable, so technicians replace components from the front without powering down the wall or needing rear access.
What site preparation should I plan for?
Plan electrical service for up to 2000 W maximum draw (912 W typical) and a wall or structure rated for the 401.3 lb. display plus mounting hardware. Creation Networks coordinates site surveys as part of the included installation.
What warranty covers this dvLED kit?
The FE Series carries a 3-year limited parts and labor warranty from Sharp/NEC. Contact Creation Networks for extended service and maintenance plans.
