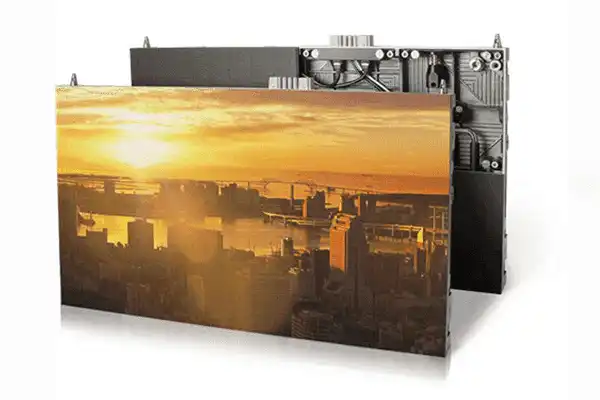

Sharp LED-FA012i2-110 – 110" HD 1.26mm FA-Series LED Video Wall Kit

Product Overview

The Sharp LED-FA012i2-110 is a 110-inch HD direct-view LED video wall kit built on the FA-Series platform with dual-controller redundancy. Designed for premium large-surface visualization in boardrooms, luxury retail environments, and control rooms, this system delivers 1280x720 native HD resolution at 800 cd/m² peak brightness with a 5000:1 contrast ratio across a seamless bezel-free 16:9 canvas. The FA-Series architecture adds built-in data and power redundancy — critical for mission-critical deployments requiring guaranteed uptime. The complete bundle includes dual LED controllers, a control PC, monitor, keyboard, and mouse, making it one of the most turnkey LED video wall packages available at this screen size.

Product Description

The LED-FA012i2-110 uses 1.26mm pixel pitch 3-in-1 SMD (Black) modules in a 4x4 cabinet configuration (16 cabinets, 128 pixel cards). The 170° x 170° viewing angles ensure consistent image quality across wide-angle seating arrangements in large conference rooms and auditoriums. Refresh rate reaches 3840 Hz for clean motion rendering. The 16-bit color processing engine supports 281 trillion displayable colors with adjustable gamma (1.0–4.0) and color temperature (3000K–9500K). At 5cm (approximately 2 inches) installed depth, the system presents a flush, low-profile appearance for premium interior environments. All modules are front-serviceable and pixel cards are hot-swappable for live maintenance. The bundle ships with everything needed for operation: 2x LED controllers, LED modules, overframe kit (4x4), wall mount (4x4), power bar, spare parts kit, pixel card removal tool, plus a complete control workstation (PC, monitor, keyboard, mouse).

Key Features

• Dual-Controller Redundancy — FA-Series architecture maintains continuous operation through single controller or power supply failure.
• 110-Inch Seamless HD Canvas — 1280x720 HD at 16:9 across a completely bezel-free direct-view LED surface.
• 1.26mm Pixel Pitch — Optimal for viewing distances of 3 to 7 feet in conference rooms and boardrooms.
• 800 cd/m² Peak Brightness — High output for visibility in brightly lit environments.
• 5000:1 Contrast Ratio — 3-in-1 SMD black pixel configuration for deep blacks and vivid color.
• 170° x 170° Viewing Angles — Near-panoramic coverage for wide-angle conference room seating.
• Up to 3840 Hz Refresh Rate — Flicker-free rendering for video and dynamic data content.
• Control PC Included — Bundle includes a full control workstation (PC, monitor, keyboard, mouse) not standard in FE-Series kits.
• Front-Serviceable, Hot-Swap Pixel Cards — All maintenance from the front face; cards replaceable during live operation.
• Slim 5cm Installed Depth — Flush wall integration with minimal standoff.
• 100,000-Hour LED Lifetime — Industrial-grade longevity for permanent installations.
• 16-Bit Color / 281 Trillion Colors — Wide-gamut rendering with fine calibration controls.

Typical Applications

• Boardroom
• Conference room
• All-hands room
• Government space
• Lobby display
• Retail environment
• Digital signage

Technical Specifications

Frequently Asked Questions

What is included in the FA012i2-110 bundle that sets it apart?
Beyond the standard LED hardware, this kit includes a complete control workstation: a control PC, monitor, keyboard, and mouse. Dual LED controllers are also standard, providing redundancy not found in FE-Series kits.

What is the optimal viewing distance?
The 1.26mm pixel pitch is optimized for 3 to 7 foot viewing distances, appropriate for boardrooms and conference rooms with standard table depths.

Does this bundle include installation labor?
No. Contact Creation Networks for installation services or a full project quote.

Are pixel cards replaceable during active operation?
Yes. All pixel cards are front-accessible and hot-swappable without powering down the display.
