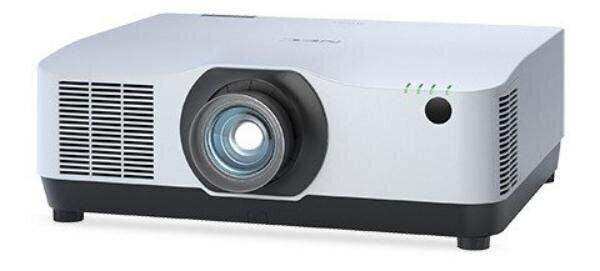

Sharp NP-PA1004UL-W – 10,000-Lumen WUXGA Laser 3LCD Projector, No Lens (White)

Product Overview

The Sharp NP-PA1004UL-W is a white-cabinet, 10,000-lumen WUXGA laser 3LCD professional installation projector in the no-lens configuration, designed for corporate, higher education, and museum AV deployments. The PA series sealed optical engine eliminates filter and lamp maintenance over its 20,000-hour laser lifespan, while built-in edge blending and stacking support multi-projector installations. Dual HDMI 2.0, HDBaseT with Repeater, and native control system integration with Crestron, AMX, Extron, and PJ Link provide the connectivity and control flexibility required for professionally managed commercial environments.

Product Description

The NP-PA1004UL-W features a WUXGA 1920x1200 3LCD panel accepting 4K input up to 4096x2160 with HDR10 and BT.2020 support. The no-lens configuration gives AV integrators full flexibility to select from the NP-series motorized zoom and ultra-short throw lenses based on installation geometry. TileMatrix supports seamless 4Kx2K display using four projectors via HDBaseT Repeater, and ProAssist software provides network-based multi-projector image alignment and calibration. The optional MultiPresenter Stick adds wireless presentation for up to 12 simultaneous devices.

Key Features

• 10,000 Lumens — High-output laser brightness for large conference rooms, auditoriums, and multi-purpose venues.
• No-Lens Configuration — Integrator-specified optics; compatible with NP40ZL, NP41ZL, NP43ZL, NP44ML, and NP50ZL lenses.
• Sealed Optical Engine — Filter-free, near-silent operation with 20,000-hour laser life.
• WUXGA 1920x1200 Native Resolution — 4K input with HDR10 and BT.2020 support.
• Built-In Edge Blending and Stacking — Native multi-projector support.
• HDBaseT Input and Repeater — Single-cable AV/control delivery with downstream cascading.
• TileMatrix — Seamless 4Kx2K display with four units.
• MultiPresenter Stick Compatible — Optional wireless presentation for up to 12 devices.
• Control System Integration — Crestron RoomView, AMX Beacon, Extron XTP, PJ Link; RS-232, IR, RJ-45.
• White Cabinet — Suited for bright academic and corporate venues where white equipment is preferred.
• 5-Year InstaCare Warranty — 5-year or 20,000-hour parts and labor with next-business-day exchange.

Typical Applications

• Auditorium
• Conference room
• Training room
• All-hands room
• Multi-purpose room
• House of worship

Technical Specifications

Frequently Asked Questions

Which lenses are compatible?

Compatible NP-series lenses include the NP40ZL (0.79–1.11:1), NP41ZL (1.30–3.02:1), NP43ZL (2.99–5.93:1), NP44ML ultra-short throw (0.32:1), and NP50ZL (0.60–0.76:1).

How does the PA1004UL-W differ from the PA804UL-W?

The PA1004UL-W delivers 10,000 lumens vs. 8,200 lumens on the PA804UL-W. Inputs, lens compatibility, and the sealed optical engine are shared.

What is the warranty?

Registered owners receive 5-year or 20,000-hour parts and labor with Sharp InstaCare next-business-day exchange.
