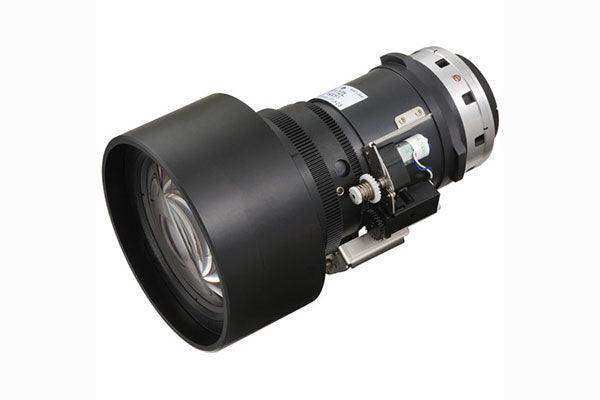

Sharp NP18ZL-4K – 1.71-2.25 Standard-Throw Zoom Lens for NP-PX1005QL
Product Overview
The Sharp NP18ZL-4K is a motorized standard-throw zoom lens with a 1.71-2.25:1 throw ratio and lens memory, designed for the NP-PX1005QL 4K UHD professional installation projector. The lens features motorized zoom, focus, and lens shift—with +50%/-30% vertical and +20%/-10% horizontal shift range—enabling precise off-axis image placement without electronic keystone correction. Lens memory stores up to three position presets for fast recall in multi-use venues.
Product Description
The NP18ZL-4K is the standard-throw lens in the NP-PX1005QL 4K-compatible lens family, covering the projection distance range most commonly required for mid-size conference rooms, classrooms, and auditoriums. At 1.71-2.25:1, the projector can be positioned approximately 12.3 to 16.2 feet from a 100-inch-wide screen. The 1.32x zoom range allows fine-tuning of image size without physical relocation. Motorized lens shift provides optical image offset that preserves the full 4K resolution without the degradation caused by digital keystone processing.
The NP18ZL-4K is sold separately from the NP-PX1005QL projector body. The bayonet-style mount allows quick lens exchange in the field.
Key Features
- 1.71-2.25:1 Throw Ratio — Standard-throw range for mid-size conference rooms, classrooms, and auditoriums at typical ceiling-mount depths.
- Motorized Zoom and Focus — Remote optical adjustment after ceiling installation for efficient commissioning.
- Motorized Lens Shift — +50%/-30% vertical, +20%/-10% horizontal optical offset for off-axis projector placement.
- Lens Memory — Stores lens position presets for instant recall in multi-use venues.
- 4K Optimized — Designed for the NP-PX1005QL 4K UHD projector to maintain full optical quality at 4K resolution.
- Bayonet Mount — Quick-exchange bayonet style for tool-free lens installation and field service.
Typical Applications
- Corporate conference room and boardroom
- Higher education classroom and lecture hall
- Commercial training room
- Multi-purpose room with 4K projection requirement
- House of worship main screen
Technical Specifications
| Specification | Value |
|---|---|
| Model | NP18ZL-4K |
| Throw Ratio | 1.71-2.25:1 |
| Focal Length | f = 26-34mm |
| Aperture | f/1.7-1.9 |
| Zoom | Motorized |
| Focus | Motorized |
| Lens Shift (Vertical) | -30% to +50% |
| Lens Shift (Horizontal) | -10% to +20% |
| Lens Memory | Yes |
| Projection Size | 40-500 inches diagonal |
| Dimensions (dia. x L) | 3.9 x 5.6 in / 100.0 x 141.4 mm |
| Weight | 1.8 lb / 0.82 kg |
| Compatible Projectors | NP-PX1005QL-B, NP-PX1005QL-W (and -18, -R variants) |
| Mount Type | Bayonet |
Frequently Asked Questions
- Q: Which projector is the NP18ZL-4K compatible with?
- The NP18ZL-4K is designed for the NP-PX1005QL 4K UHD professional installation projector and its variants.
- Q: What is the difference between the NP18ZL-4K and NP16FL-4K?
- The NP16FL-4K (0.76:1) is a fixed short-throw lens; the NP18ZL-4K (1.71-2.25:1) is a motorized zoom lens for standard-throw distances. Choose the NP16FL-4K for close-mount fixed installations; choose the NP18ZL-4K for standard room depths with the flexibility of motorized zoom and shift.
- Q: Is this lens sold with the projector?
- No. The NP18ZL-4K is sold separately from the NP-PX1005QL projector body.
- Q: Where can I purchase the NP18ZL-4K?
- Available at Creation Networks, an authorized Sharp commercial AV reseller.
