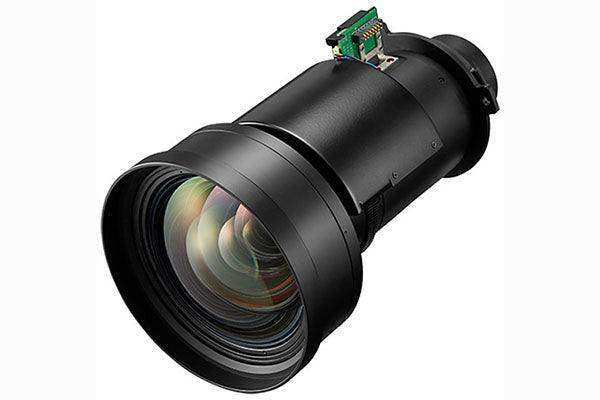

Sharp NP46ZL – 1.2-1.56:1 Short-Throw Zoom Lens for NP-PX2000UL Series

Product Overview

The Sharp NEC NP46ZL is a 1.2-1.56:1 short-throw zoom projector lens engineered for the NP-PX2000UL series of large-venue laser projectors, including the NP-PX2000UL, NP-PX2201UL, and their bundled variants. With motorized zoom, motorized focus, and lens shift, this interchangeable projector lens gives AV integrators precise image alignment during fixed installation without manual adjustment at the projector. It supports screen sizes from 40 to 500 inches, making it a strong fit for auditorium projection, staging, and large-venue AV system design where the projector must sit relatively close to the screen.

Product Description

The NP46ZL covers a throw distance of 2.5 to 68.5 feet (0.74 to 20.9 m), which lets system designers place an NP-PX2000UL series projector in tight projection booths, on truss rigs, or in shallow rear-projection spaces while still filling large screens. The optical assembly uses an f/2.18 to 2.66 aperture with a 21.8 to 49.8 mm focal length, delivering bright, evenly focused images across the zoom range. Motorized zoom and focus are controlled from the projector or its remote, so commissioning and recalibration can be handled without ladder access to the lens itself — a practical benefit in ceiling-mounted and rigged installations. Lens shift compatibility with the PX2000UL platform allows off-axis projector placement while keeping the image geometrically correct, reducing reliance on keystone correction that costs resolution. Because the NP46ZL is part of Sharp/NEC's interchangeable lens ecosystem, rental and staging companies can swap throw ratios across a fleet of PX2000UL series projectors as venue requirements change. The lens is rated for operation up to 4,200 m (13,780 ft) altitude and 5-40°C, supporting deployments in a wide range of commercial environments. At 4.45 lb (2.02 kg), it adds modest weight to rigging calculations. For longer-throw applications on the same projector platform, compare medium- and long-throw options in our Sharp/NEC lens lineup at Creation Networks.

Key Features

• 1.2-1.56:1 Short-Throw Ratio — Fills large screens from short projection distances, simplifying placement in shallow booths and rear-projection rooms.
• Motorized Zoom and Focus — Allows remote image adjustment from the projector control system, eliminating manual lens access after rigging.
• Lens Shift Support — Enables off-axis projector mounting on NP-PX2000UL series models while maintaining correct image geometry.
• 40 to 500 Inch Image Sizes — Scales from meeting-room screens to full auditorium and staging surfaces.
• 2.5 to 68.5 ft Throw Distance — Provides flexible projector positioning across a wide range of venue depths.
• Interchangeable Bayonet Design — Swaps quickly between PX2000UL series projectors for rental, staging, and multi-venue fleets.
• High-Altitude Rated — Operates at elevations up to 13,780 ft, supporting installations in high-altitude markets.

Typical Applications

• Auditorium
• House of worship
• Broadcast studio
• All-hands room
• Multi-purpose room
• Government space

Technical Specifications

Frequently Asked Questions

Which projectors is the NP46ZL compatible with?

The NP46ZL is designed for the Sharp/NEC NP-PX2000UL series, including the NP-PX2000UL, NP-PX2000UL-R, and NP-PX2201UL models and their lens-bundled variants. It is not compatible with the PA or PV series projector platforms.

Does the NP46ZL support lens memory?

The PX2000UL series platform stores lens position settings at the projector, so zoom, focus, and shift positions set with the NP46ZL can be recalled through the projector's control system for repeatable staging setups.

Can the lens be installed in the field?

Yes. The NP46ZL uses the projector's interchangeable lens mount and can be swapped by a trained technician without tools beyond the lens release. Always power down the projector before exchanging lenses and recalibrate after installation.

Is this lens suitable for rigged or inverted installations?

Yes. The PX2000UL series supports 360-degree orientation, and the NP46ZL's motorized zoom and focus allow image adjustment after the projector is rigged, which is standard practice in staging and auditorium installs.

What warranty applies to this lens?

Sharp/NEC covers the NP46ZL with a 1-year limited parts and labor warranty. Creation Networks can assist with warranty coordination and replacement sourcing for commercial deployments.
