Sharp NP16FL-4K – 0.76:1 Fixed Short-Throw Lens for NP-PX1005QL
Product Overview

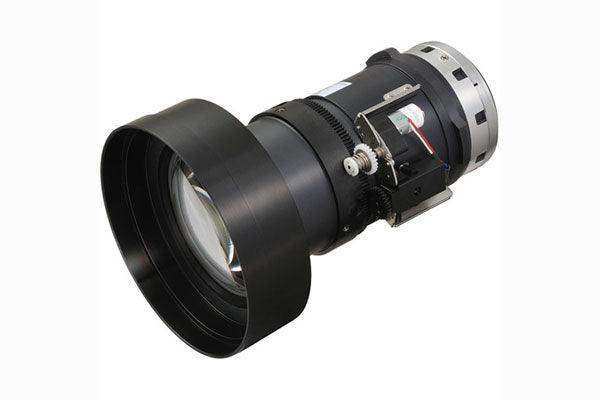

The Sharp NP16FL-4K is a fixed short-throw projector lens with a 0.76:1 throw ratio and motorized focus, designed exclusively for the NP-PX1005QL 4K UHD professional installation projector. As a fixed (non-zoom) lens, the NP16FL-4K delivers optimized optical performance at a single throw ratio, making it the correct choice for installations where the projector-to-screen distance is fixed and a wide image is required from a close mounting position. The bayonet-style mount enables quick, tool-free lens exchange.
Product Description
The NP16FL-4K is part of the 4K lens family for the NP-PX1005QL, which accepts 4K UHD input and delivers high-brightness large-venue projection. At 0.76:1, this fixed lens places the projector at approximately 0.76 times the screen width from the screen surface—enabling a 100-inch-wide image from approximately 5.5 feet away. This is the shortest-throw lens in the NP-PX1005QL-compatible lineup, suited for rooms where ceiling geometry or structural constraints prevent a longer throw distance.
The fixed design trades zoom flexibility for optimized optical quality at the target throw distance, making it appropriate for permanent installations where the projection geometry is fixed at commissioning. The NP16FL-4K is sold separately from the NP-PX1005QL projector body.
Key Features
- 0.76:1 Fixed Throw Ratio — Short-throw fixed lens for close-mount installations requiring a large image from a limited projector-to-screen distance.
- Motorized Focus — Focus adjustment is motorized for remote operation after ceiling installation.
- 4K Optimized Optics — Designed specifically for the NP-PX1005QL 4K UHD projector to maintain optical quality at full 4K resolution.
- Bayonet-Style Mount — Tool-free lens exchange for quick service and field replacement.
- Compatible with NP-PX1005QL — Designed exclusively for the Sharp NP-PX1005QL 4K UHD installation projector.
- Projection Range 40-500 inches — Supports screens from 40 to 500 inches diagonal at appropriate throw distances.
Typical Applications
- Corporate boardroom with close ceiling mount
- Higher education lecture hall with constrained ceiling geometry
- House of worship with tight projector-to-screen constraint
- Government facility with space-limited projection bay
- Large-venue installation requiring short-throw 4K projection
Technical Specifications
| Specification | Value |
|---|---|
| Model | NP16FL-4K |
| Throw Ratio | 0.76:1 |
| Focal Length | f = 11.6mm |
| Aperture | f/1.85 |
| Lens Type | Fixed Short-Throw |
| Focus | Motorized |
| Zoom | None (fixed) |
| Projection Size | 40-500 inches diagonal |
| Throw Distance | 1.6-182.9 ft / 0.49-55.75 m (for 500 inch screen) |
| Dimensions (dia. x L) | 4.0 x 6.3 in / 102.0 x 160.4 mm |
| Weight | 2.0 lb / 0.91 kg |
| Operating Temperature | -14 to 122 deg F / -25 to 50 deg C |
| Compatible Projectors | NP-PX1005QL-B, NP-PX1005QL-W (and -18, -R variants) |
| Mount Type | Bayonet |
Frequently Asked Questions
- Q: Which projector is the NP16FL-4K compatible with?
- The NP16FL-4K is designed exclusively for the NP-PX1005QL 4K UHD professional installation projector and its variants.
- Q: Why choose a fixed lens over a zoom lens?
- Fixed lenses typically provide optimized optical quality at their target throw ratio compared to zoom lenses of equivalent cost. If the installation geometry is fixed and will not change, a fixed lens is the appropriate choice. For installations requiring future flexibility in projector placement, a zoom lens such as the NP18ZL-4K is more practical.
- Q: Does the NP16FL-4K support keystone correction?
- No electronic keystone is applied by the lens itself. Keystone correction, if needed, must be applied via the projector's software. For off-axis placement, lens shift (available on zoom lens models) is the preferred method to avoid image degradation.
- Q: Where can I purchase the NP16FL-4K?
- Available at Creation Networks, an authorized Sharp commercial AV reseller.
