Sharp NP47ZL – 1.5-2.0:1 Standard-Throw Zoom Lens for NP-PX2000UL
Product Overview

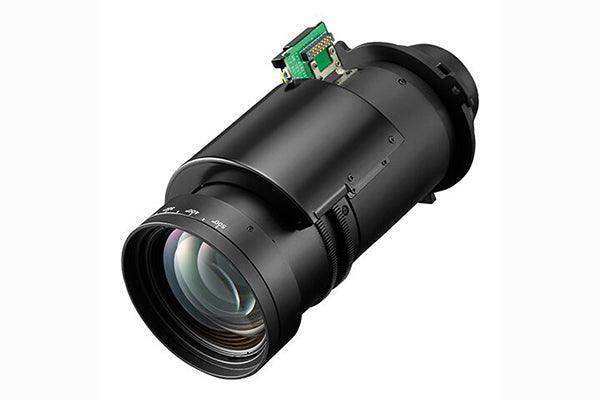

The Sharp NP47ZL is a motorized standard-throw zoom lens with a 1.5-2.0:1 throw ratio and 2.3x zoom, designed for the NP-PX2000UL, NP-PX2000UL-47ZL, and NP-PX2000UL-R professional installation projectors. This lens supports screen sizes from 40 to 500 inches diagonal and covers projection distances from 2.5 to 68.5 feet, making it appropriate for mid-size to large venues requiring standard-throw projection geometry. Motorized zoom and focus allow remote optical adjustment after ceiling installation.
Product Description
The NP47ZL is the standard-throw lens option for the NP-PX2000UL high-brightness installation projector platform, providing a broad 2.3x zoom ratio spanning 1.5-2.0:1 for versatile throw distance coverage. At a 100-inch-wide screen, the NP47ZL positions the projector between approximately 10.8 and 14.4 feet—covering most standard conference room and meeting space ceiling-mount depths. The focal length ranges from 21.8 to 49.8mm with an aperture of f/2.18-2.66. The projector can also be purchased as the NP-PX2000UL-47ZL bundle that includes this lens.
The NP47ZL is sold separately from the NP-PX2000UL projector body and can also be found as part of the NP-PX2000UL-47ZL bundle configuration.
Key Features
- 1.5-2.0:1 Throw Ratio — Standard-throw range for mid-size to large commercial venues at typical ceiling-mount depths.
- 2.3x Motorized Zoom — Broad zoom range with motorized control for remote adjustment after installation.
- 40-500 Inch Screen Support — Covers a wide range of screen sizes from small conference rooms to large venues.
- Designed for NP-PX2000UL — Engineered specifically for the NP-PX2000UL high-brightness installation projector.
- Focal Length 21.8-49.8mm — Standard zoom range providing versatile throw distance coverage.
Typical Applications
- Corporate all-hands room and boardroom
- Higher education lecture hall and auditorium
- House of worship main sanctuary projection
- Government facility large-format display
- Multi-purpose venue standard front projection
Technical Specifications
| Specification | Value |
|---|---|
| Model | NP47ZL |
| Throw Ratio | 1.5-2.0:1 |
| Focal Length | f = 21.8-49.8mm |
| Aperture | f/2.18-2.66 |
| Zoom Ratio | 2.3x |
| Zoom | Motorized |
| Focus | Motorized |
| Throw Distance | 2.5-68.5 ft / 0.76-20.88 m |
| Projection Size | 40-500 inches diagonal |
| Dimensions (dia. x L) | 4.4 x 11.2 in / 112 x 284 mm |
| Weight | 4.45 lb / 2.02 kg |
| Operating Temperature | 41-104 deg F / 5-40 deg C |
| Compatible Projectors | NP-PX2000UL, NP-PX2000UL-47ZL, NP-PX2000UL-R |
Frequently Asked Questions
- Q: Which projectors is the NP47ZL compatible with?
- The NP47ZL is designed for the NP-PX2000UL, NP-PX2000UL-47ZL bundle, and NP-PX2000UL-R projectors.
- Q: Is the NP47ZL available bundled with the projector?
- Yes. The NP-PX2000UL-47ZL bundle includes the projector and the NP47ZL lens. The lens is also available separately for installations where the NP-PX2000UL is already deployed.
- Q: When should I choose the NP47ZL over the NP48ZL?
- Use the NP47ZL (1.5-2.0:1) for standard-depth rooms and typical ceiling-mount configurations. The NP48ZL (2.0-4.0:1) is appropriate for rooms requiring longer projection distances.
- Q: Where can I purchase the NP47ZL?
- Available at Creation Networks, an authorized Sharp commercial AV reseller.
