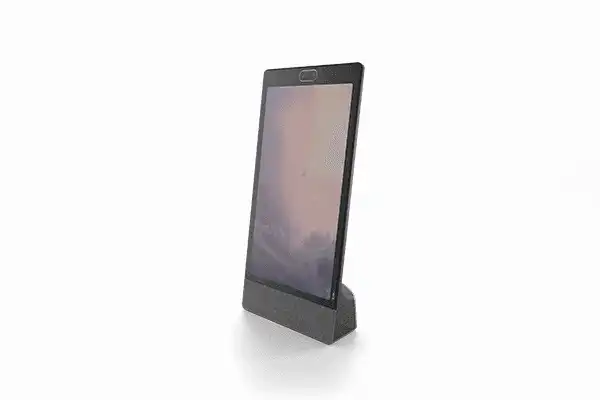

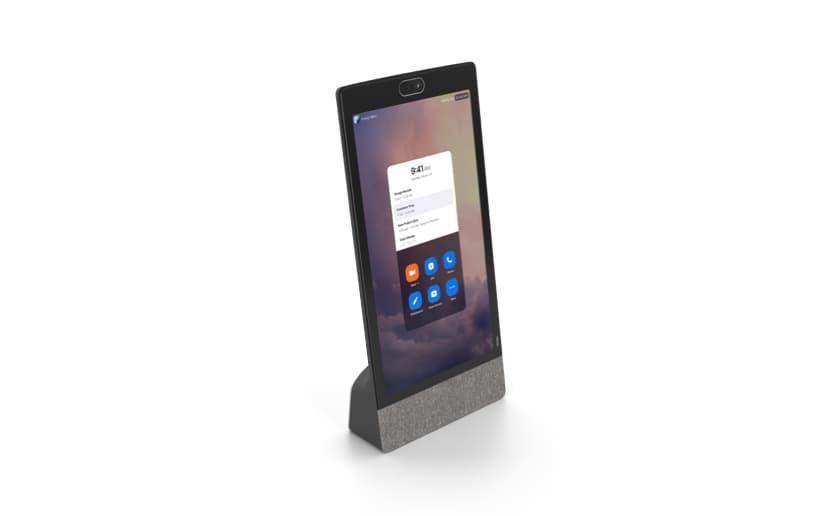

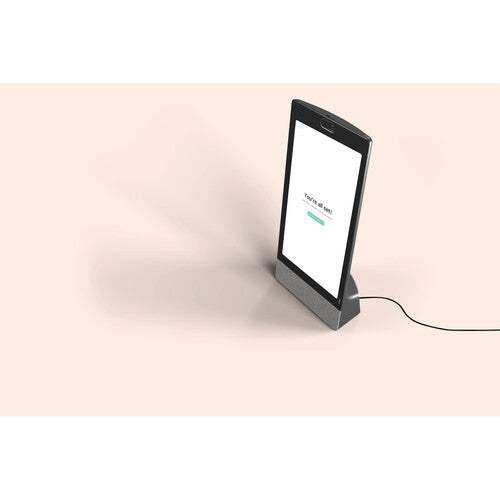

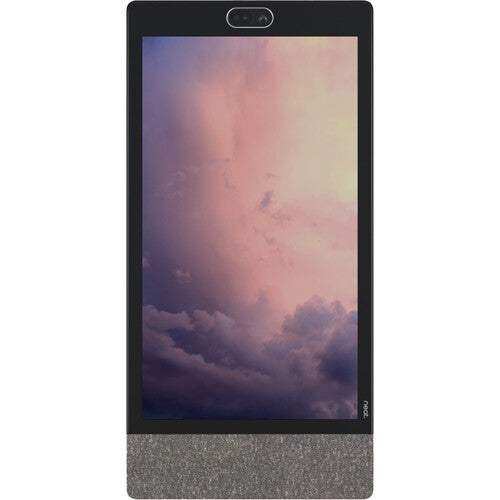

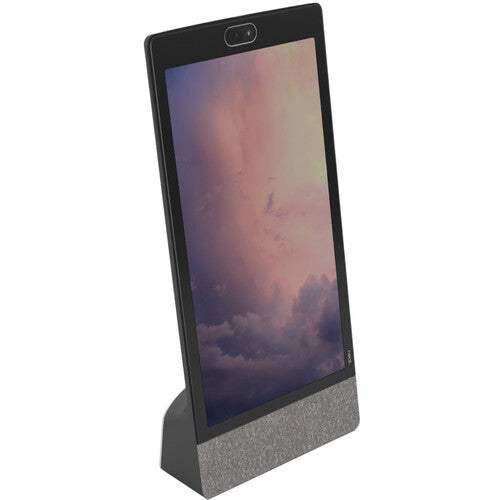

NEAT Frame Video Conferencing Device with Integrated Touchscreen

Professional Video Conferencing in a Compact Portrait Device

The NEAT Frame (NEATFRAME-SE) is a Microsoft Teams and Zoom-certified video conferencing device purpose-built for professional hybrid environments. Its 15.6-inch portrait-oriented touchscreen offers an intuitive, user-friendly layout designed to enhance engagement during video calls. By mimicking the vertical orientation of a person, the NEAT Frame facilitates natural eye contact and makes virtual meetings feel more personal and direct.

Built for commercial AV use, the NEAT Frame delivers seamless integration, superior audio-visual performance, and a sleek form factor that frees up your desktop for multitasking. Designed with integrated speakers, high-resolution video capabilities, and intelligent noise-canceling technology, the NEAT Frame is ideal for professional settings requiring reliable, high-quality conferencing.

Key Features

• Portrait-Oriented 15.6-Inch Multi-Touch Screen
  Full HD LED display with 450 nits brightness for crystal-clear visuals in any lighting.

• Professional-Grade Camera System
  50MP camera with 113° wide horizontal field of view and 8x digital zoom; includes automatic framing and image optimization for active participants.

• Studio-Quality Audio
  Front-facing tweeter and woofer with echo cancellation and dereverberation for lifelike voice reproduction.

• Advanced Microphone Array
  3-microphone end-fire array and 1 tracking mic with Neat's proprietary algorithms for voice isolation and noise suppression.

• Touchscreen Interface
  Anti-glare, anti-fingerprint capacitive touchscreen ensures easy interaction with meeting platforms.

• Compact All-in-One Design
  Frees up your computer for other tasks while serving as a standalone meeting solution.

• Environmental Sensors
  Includes sensors for temperature, humidity, air quality, and ambient light—ideal for smart space integration.

Technical Specifications

Display

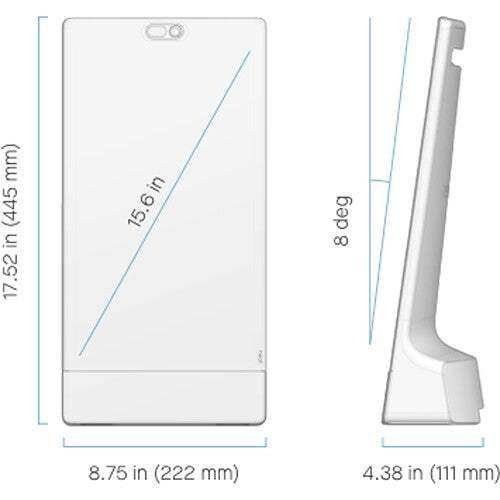

• 15.6-inch capacitive multi-touch LED screen

• 1080x1920 resolution @ 60Hz

• 450 nits brightness

• Anti-glare & anti-fingerprint coating

Camera & Video

• 50MP capture resolution

• 113° horizontal field of view

• 8x digital zoom

• Auto framing, distortion correction, and image optimization

• Up to 1080p / 30fps for people video

• Up to 720p / 60fps or 1080p / 30fps for shared content

Audio

• Front-facing tweeter + woofer system

• 3-microphone array with beamforming

• Tracking mic

• Echo cancellation and noise suppression

• Wired and wireless headphone support

• Automatic gain control and dereverberation

Sensors

• Camera LED, system LED

• Depth sensor (Time-of-flight VGA, 60° FOV)

• Ambient light, temperature, humidity, and air quality sensors

• Privacy shutter

Power & Environment

• Built-in power supply

• Operating: 32°F to 95°F (0°C to 35°C)

• Storage: -4°F to 140°F (-20°C to 60°C)

• Power consumption:

  • Idle: 10W

  • Screen off: 3.5W

  • In call: 14–16W

• Network standby: 8W

Mounting & Connectivity

• Tripod mount with 1/4-20 UNC threads

• Supports both wired and wireless headphones

• Microsoft Teams and Zoom Room license required (purchased separately)

Ideal Applications

Perfect for high-performance video communication in:

• Executive boardrooms

• Conference rooms

• Government offices

• Houses of worship

• Hybrid workspaces

• All-hands and multipurpose meeting rooms

• Remote learning and telehealth environments

• Huddle spaces in enterprise environments

Why Choose NEAT Frame Over Competitors?

• Portrait Display Advantage: Unlike traditional landscape displays, the portrait orientation improves visual alignment for remote face-to-face interaction.

• Purpose-Built for AV: Engineered with conferencing-first hardware and software—no need to configure separate AV systems.

• All-in-One Efficiency: Combines video, audio, and environmental sensing into a single device, streamlining deployment and minimizing cable clutter.

• Optimized Framing & Audio: Automatically adjusts framing and voice focus for every participant—no manual configuration needed.

• Smarter Integration: Built-in sensors and environmental awareness enable smart-building compatibility.

Comparison Table – NEAT Frame vs. Typical Video Conferencing Devices
