Middle Atlantic RM-LCD-PNLV – 3 RU Fixed VESA LCD Rackmount Panel

Product Overview

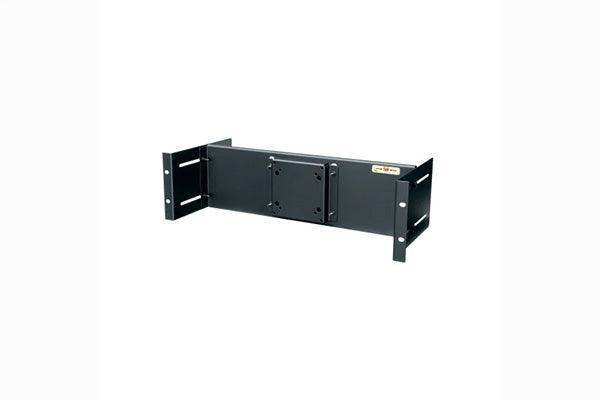

The Middle Atlantic RM-LCD-PNLV is a 3 RU fixed VESA LCD rack mount panel that secures a flat-panel monitor directly in a standard 19-inch equipment rack. It accepts displays with VESA 75 and VESA 100 mounting patterns, covering LCD screen sizes from 15 to 19 inches and some 20-inch monitors. Built from 16-gauge steel with a black powder coat finish, the panel supports loads up to 27 lb. It is the fixed-position member of Middle Atlantic's LCD rackmount panel family, which also includes tilting and articulating models.

Product Description

Rack-mounting an LCD monitor puts system status, camera feeds, or control interfaces at eye level inside the equipment rack instead of on a separate desk or wall. The RM-LCD-PNLV makes this straightforward: the monitor bolts to the panel using its standard VESA 75 or VESA 100 hole pattern, and the assembly occupies just 3 rack units. Generous front-to-back adjustment lets installers set the screen depth so the display sits flush with surrounding rack hardware. The fixed mounting style keeps the monitor rigidly in place, which suits monitoring positions where the viewing angle does not need to change. For applications that require pivot or tilt adjustment, Middle Atlantic offers the RM-LCD-PNLK in the same panel family. Sturdy 16-gauge steel construction carries monitors up to 27 lb, and the panel accommodates displays up to 17.38 inches in overall width. The black powder coat finish matches Middle Atlantic racks and rack panels, and the product carries RoHS and GREENGUARD listings. Overall panel dimensions are 19.0 x 5.3 x 8.2 inches, fitting any EIA-standard 19-inch rack rail.

Key Features

• 3 RU Fixed VESA Mount — Holds an LCD monitor rigidly in 3 rack spaces of any standard 19-inch rack.
• VESA 75 and VESA 100 Compatible — Works with the two most common flat-panel mounting hole patterns.
• Supports 15–19 Inch Displays — Also fits some 20-inch monitors up to 17.38 inches overall width.
• 27 lb Load Capacity — 16-gauge steel construction carries professional rackmount monitors with margin.
• Front-to-Back Adjustment — Generous depth adjustment positions the screen flush with the rack face.
• Durable Black Powder Coat — Matches Middle Atlantic rack enclosures and filler panels.
• RoHS and GREENGUARD Listed — Meets environmental and low-emission material standards.
