Middle Atlantic MRK-2431 24SP/31D MULTIBAY MRK

Product Overview

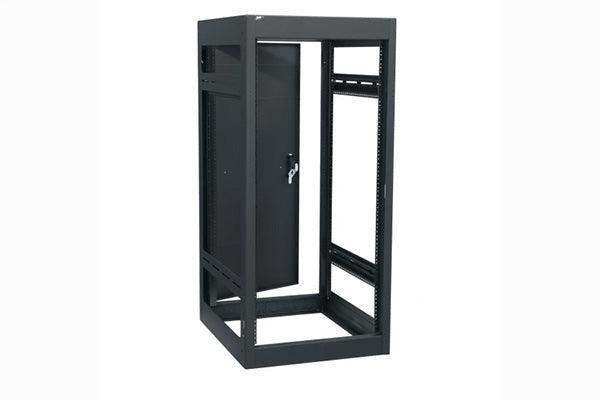

The Middle Atlantic MRK-2431 is a 24-space, 31-inch-deep multibay gangable AV rack designed for demanding systems integration environments. Built to gang with adjacent MRK enclosures, it supports high-density equipment configurations in permanent installations. The open-sided, bolt-together design simplifies field assembly and future equipment changes. Available from Creation Networks at creationnetworks.net.

Product Description

The MRK-2431 provides 24 rack spaces (42U equivalent is not applicable — this uses SP spacing) in a 31-inch depth footprint suited for deeper AV and IT gear. The gangable frame design allows multiple MRK enclosures to be bolted side-by-side, sharing structural load and creating a unified rack bay system without the bulk of individual floor-standing cabinets. Side panels are field-removable, making cable runs between bays straightforward. The 31-inch depth accommodates standard and extended-depth AV processors, amplifiers, and video distribution equipment. Threaded rack rails are included, eliminating the need for cage nuts on most equipment. The open construction promotes natural convection airflow, reducing thermal buildup in equipment-dense bays. Leveling feet provide stability on uneven floors common in older facilities and retrofit installations. Finish is Middle Atlantic's standard textured steel, consistent with other MRK family enclosures. The MRK-2431 is UL listed and meets applicable structural standards for permanent equipment installations. AV integrators specify this rack when floor space is fixed and bay-to-bay cable management must remain accessible post-install.

Key Features

• 24 rack spaces — Accommodates a full complement of AV and IT equipment in a single bay.
• 31-inch depth — Fits extended-depth amplifiers, switchers, and servers without forcing shallow compromises.
• Gangable frame — Bolts to adjacent MRK enclosures for multi-bay system builds with shared structural integrity.
• Removable side panels — Simplifies inter-bay cable management and field modifications.
• Threaded rack rails — Accepts standard rack screws; no loose cage nuts required.
• Open construction — Passive airflow keeps equipment temperatures in check without added fan infrastructure.
• Leveling feet — Ensures plumb installation on imperfect floors.
• UL listed — Meets safety standards for commercial AV installations.

Typical Applications

• Multi-bay AV control rooms requiring ganged rack enclosures
• Broadcast and production facilities with high equipment density
• Corporate AV system racks in data closets or dedicated equipment rooms
• Higher-education AV infrastructure buildouts with shared cable pathways
• Retrofit installations where floor space is fixed and depth is the primary variable

Technical Specifications

Frequently Asked Questions

Q: How many MRK-2431 enclosures can be ganged together?

A: Middle Atlantic does not publish a hard limit; practical installations typically gang two to six bays depending on floor loading and room layout. Consult your structural engineer for large deployments.

Q: Do side panels come included?

A: Side panels for the MRK series are ordered separately, allowing integrators to configure open or closed sides as the installation requires.

Q: Is the MRK-2431 compatible with Middle Atlantic's cable management accessories?

A: Yes. Standard MRK cable management panels, lacing bars, and horizontal managers mount directly to the rack rails.
