Middle Atlantic AX-SXR-23 – 23SP 20" Shallow AV Rack

Product Overview

The Middle Atlantic AX-SXR-23 is a 23-space, 20-inch-deep shallow rack that gives AV integrators and facilities managers a large-capacity Middle Atlantic AX-SXR shallow rack without the depth penalty of a standard enclosure. At 23U within a 20-inch deep rack mount, this unit handles demanding AV builds in commercial environments where depth is restricted. The AX-SXR-23 is particularly well suited to side-access rack commercial applications in wiring closets, back-of-house AV rooms, and equipment alcoves.

Product Description

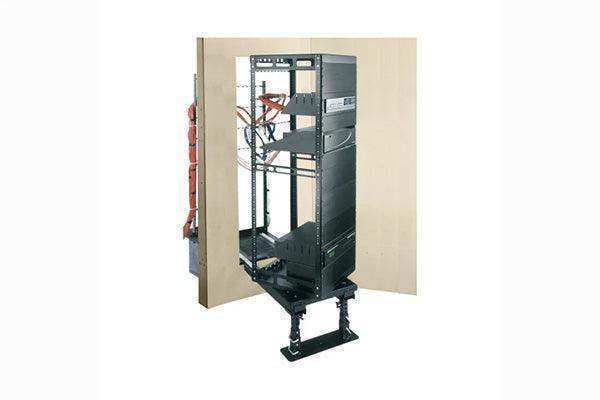

The AX-SXR-23 offers 23 rack spaces at 20" of usable depth, a combination that accommodates full AV system builds for mid-size auditoriums, large boardrooms, and multi-room hospitality AV installations. The Side-X-Rail construction delivers lateral access to 10-32 tapped rails — the same rail standard used in larger conventional racks — allowing technicians to work efficiently even in cramped back-of-house conditions. No cage nuts are required; standard 10-32 screws thread directly into all 23 rail positions. The heavy-gauge steel frame supports the full structural load of a populated 23U commercial AV rack, including large power amplifiers and multi-output signal processors. The AX-SXR-23 is a strong fit for integrators who regularly encounter depth restrictions in older commercial buildings where wiring closets were not designed for modern full-depth server or AV racks. Its specification aligns exactly with the rest of the AX-SXR series, making it straightforward to cross-reference with accessory part numbers from Middle Atlantic's AX catalog. Available at creationnetworks.net.

Key Features

• 23U Capacity — Large equipment capacity for mid-size auditoriums and boardrooms.
• 20" Usable Depth — Shallow form factor for older buildings and depth-restricted closets.
• Side-X-Rail Access — Lateral rail access for cramped commercial back-of-house spaces.
• 10-32 Tapped Rails — Direct-mount installation without cage nuts.
• 19" EIA-310 Standard — Accepts all standard professional rackmount equipment.
• Heavy-Gauge Steel — Supports full 23U commercial load in permanent installations.
• AX Series Accessory Ready — Compatible with Middle Atlantic AX-series panels, power, and blanks.

Typical Applications

• Mid-size auditorium AV equipment rooms
• Large boardroom and executive conference AV installations
• Multi-room hospitality AV back-end racks
• Depth-restricted wiring closets in older commercial buildings
• Side-access rack commercial deployments with lateral servicing requirements

Technical Specifications

Frequently Asked Questions

Is the AX-SXR-23 suitable for a multi-room hospitality AV installation?

Yes. Twenty-three rack spaces supports matrix switchers, amplifiers, DSP units, and network infrastructure for multi-room hospitality AV systems in a single shallow enclosure.

How does the AX-SXR-23 handle older building constraints?

The 20" depth fits within the narrower wiring closets common in older commercial construction, where modern 30" or 36" racks cannot be installed without structural modifications.

Can I add ventilation to the AX-SXR-23?

Yes. Middle Atlantic AX-series vented blanks and fan panels are compatible accessories. Contact creationnetworks.net for accessory options.

What is the space count difference between the AX-SXR-22 and AX-SXR-23?

One rack space: the AX-SXR-22 has 22U and the AX-SXR-23 has 23U. All other specifications are identical.

Where can I order the AX-SXR-23?

Order at creationnetworks.net.
