Middle Atlantic AVIP-FK1 1SP,AVIP 19"PNL,HORIZ
Product Overview

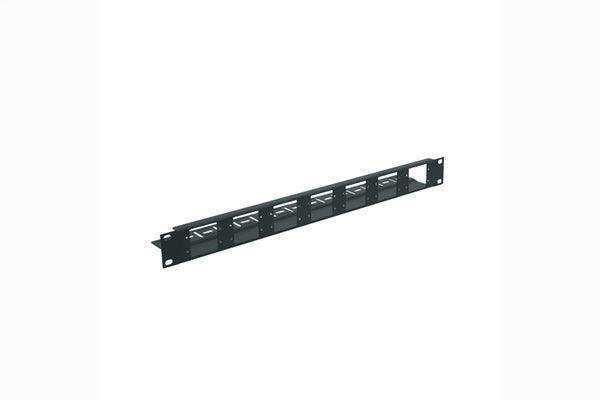

The Middle Atlantic AVIP-FK1 is a 1-space horizontal 19-inch rack panel designed to accept Wiremold AVIP, Extron MAAP, and FSR IPS connector device plates, providing a clean and organized signal connection interface in a standard rack bay. The panel accommodates up to 14 single or 7 dual connector plates and includes integrated strain relief and cable management features optimized for device plate installations. This panel is the preferred solution for AV integrators who need a rack-mount location for custom I/O panels built from standard connector plates.
Product Description
AV installations frequently require custom I/O panels with specific combinations of HDMI, VGA, audio, USB, and control connectors positioned at accessible rack locations. Rather than fabricating custom panels, integrators use standardized device plate systems from manufacturers like Wiremold, Extron, and FSR. The AVIP-FK1 provides a purpose-built rack panel that accepts these device plates without modification, supporting up to 14 single or 7 dual connector positions in a single rack unit of space. The built-in strain relief and cable management features keep signal cables organized behind the panel and prevent connector stress from cable weight or movement. At 1 rack space, the AVIP-FK1 is compact enough to be used as a dedicated signal interface row within any standard rack layout. Compatibility with Wiremold AVIP, Extron MAAP, and FSR IPS plates gives integrators flexibility to use their preferred connector plate supplier without changing the rack panel hardware.
Key Features
- Accepts Up to 14 Single or 7 Dual Connector Plates — High connector density in a single rack unit for signal-rich AV installations.
- Compatible with Major Connector Plate Systems — Works with Wiremold AVIP, Extron MAAP, and FSR IPS device plates.
- Integrated Strain Relief — Prevents connector stress from cable weight, protecting signal connections in permanent installations.
- Cable Management Optimized Design — Rear cable management features keep signal cables organized behind the panel face.
- 1-Space (1U) Form Factor — Compact height preserves rack real estate for equipment while providing a complete signal interface row.
Technical Specifications
| Specification | Value |
|---|---|
| Model | AVIP-FK1 |
| Rack Spaces | 1U |
| Orientation | Horizontal |
| Panel Width | 19" |
| Connector Plate Capacity | 14 single or 7 dual plates |
| Compatible Plates | Wiremold AVIP, Extron MAAP, FSR IPS |
| Includes | Strain relief and cable management |
| Manufacturer | Middle Atlantic |
