Meyer Sound HMS Half Yoke Kit - 40.227.031.01
Product Overview

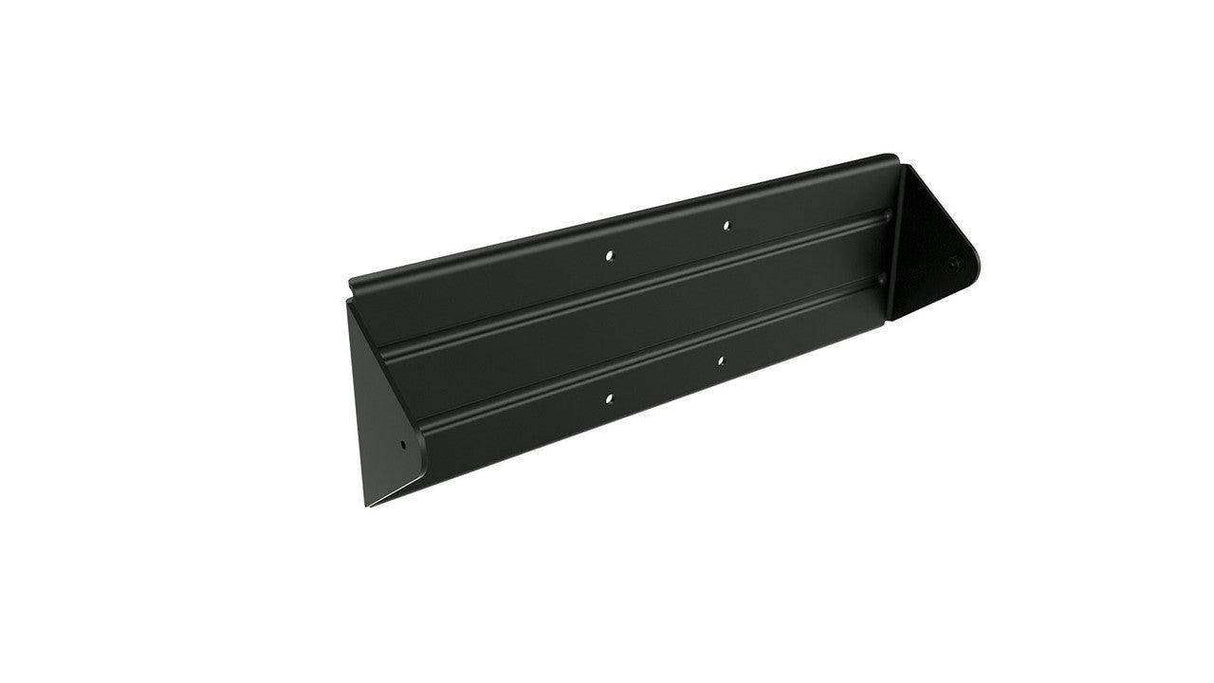

The Meyer Sound HMS Half Yoke Kit is the HY-HMS yoke for HMS cinema surround loudspeakers. It suspends the loudspeaker with a full 360 degrees of tilt, allowing precise vertical aiming in overhead and immersive surround placements. The yoke can attach directly to ceilings or accept C or G hanging clamps with standard 1/2-inch or 12 mm bolts. It is intended for suspended HMS surround channels.
Product Description
The HY-HMS yoke suspends an HMS cinema surround loudspeaker with a full range of tilt across 360 degrees, providing flexible vertical aiming for overhead and immersive surround positions. It can attach directly to a ceiling or accept C or G hanging clamps using standard 1/2-inch or 12 mm bolts, and it weighs 12.4 lb (5.6 kg). The HY-HMS yoke is compatible with the HMS-5, HMS-10, and HMS-12 loudspeakers, each supporting the full 360-degree tilt range. For HMS-15 and HMS-15AC suspension, the dedicated HMS-15 rigging yoke is available. This kit provides the yoke hardware needed to suspend an HMS surround loudspeaker with full tilt adjustment.
Key Features
- Full 360-Degree Tilt — Suspends HMS loudspeakers with a full range of tilt for precise vertical aiming in overhead positions.
- Direct or Clamp Mounting — Attaches directly to ceilings or accepts C or G hanging clamps with standard 1/2-inch or 12 mm bolts.
- HMS Compatibility — Compatible with the HMS-5, HMS-10, and HMS-12 loudspeakers, each at the full 360-degree tilt range.
- Suspension Hardware — Provides a half-yoke assembly for suspended surround and immersive loudspeaker placement.
- Defined Weight — Weighs 12.4 lb (5.6 kg) for secure overhead installation.
Technical Specifications
| Type | Suspension yoke (HY-HMS) |
| Tilt Range | 360° |
| Mounting | Direct to ceiling or C/G clamps with 1/2-inch or 12 mm bolts |
| Weight | 12.4 lb (5.6 kg) |
| Compatibility | HMS-5, HMS-10, HMS-12 (360° each) |
Specifications sourced from Meyer Sound. Subject to change without notice.
