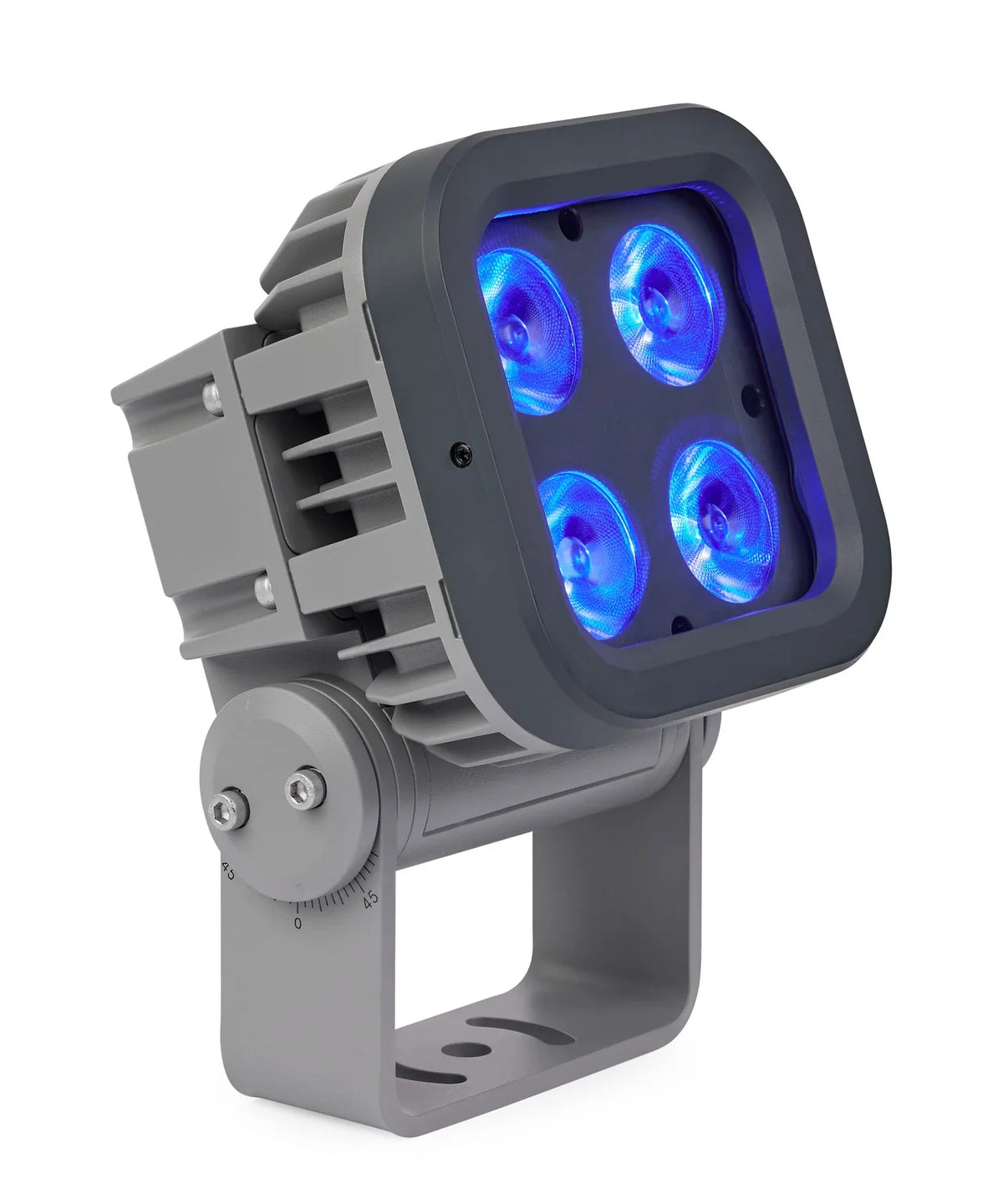

Martin Exterior Wash Pro S QUAD – Outdoor IP66 RGBW Wash, EU, White

Product Overview

The Martin Exterior Wash Pro S QUAD is an outdoor-rated RGBW wash light engineered to illuminate smaller structures, building features, and landscaping in permanent installations. As a compact IP66 RGBW outdoor wash fixture, it combines saturated color mixing, color boost technology, and a dedicated color temperature control channel for versatile architectural lighting. This EU, white-finish model blends into building exteriors while delivering high-intensity, narrow-beam output. Integrators specifying outdoor color-changing facade lighting will find it a flexible fit for long-term exterior projects.

Product Description

The Exterior Wash Pro S QUAD is part of Martin's logic family of four sizes and lumen packages (S, M, L, XL), giving designers a cohesive line to scale across a project. It uses four high-power RGBW LEDs behind a native 8-degree beam, with externally mounted micro lens diffusers and an optional baffle snoot for configurable beam control. Integrated color boost technology balances LED and PSU capacity to produce saturated and mixed colors up to three times brighter than previous models, while a dedicated color temperature control channel spans 1000K to 12,500K along the black-body curve. Factory color calibration with tight binning ensures consistency across an installed array. The fixture is controlled via DMX and RDM, with local diagnostics and focusing through an integrated magnetic sensor and stand-alone control of up to 20 scenes. Power and DMX IN/OUT cables are pre-mounted, with an optional hybrid IN/OUT cable solution available. The fully weatherized housing carries IP66, IK08, and C5 high-corrosion ratings, ships in FSC-certified cardboard packaging, and is backed by a five-year warranty. The cast aluminum housing is finished in traffic white RAL 9016.

Key Features

• RGBW color mixing — Four high-power RGBW LEDs deliver saturated and mixed colors with a full-gamut factory calibration.
• Color boost technology — A smart ratio between LED and PSU capacity produces saturated colors up to three times brighter than previous models.
• Color temperature control — A dedicated channel spans 1000K to 12,500K in 50K steps, following the black-body curve.
• IP66 outdoor rating — The fully weatherized housing carries IP66 ingress protection, IK08 impact resistance, and a C5 high corrosion rating for permanent exterior use.
• Configurable beam control — Externally mounted micro lens diffusers and an optional baffle snoot tailor the native 8-degree beam to the application.
• DMX and RDM control — The fixture supports DMX and RDM with a galvanic-isolated transceiver and stand-alone scene playback.
• Five-year warranty — Built for permanent outdoor installations and backed by a five-year warranty.

Typical Applications

• House of worship exterior and architectural accent lighting
• Auditorium and performing arts facade illumination
• Government and civic building exterior lighting
• Multi-purpose commercial and campus landscape lighting

Technical Specifications

Frequently Asked Questions

Is the Exterior Wash Pro S QUAD rated for permanent outdoor installation? Yes. It carries an IP66 ingress rating, IK08 impact resistance, and a C5 High corrosion rating, and it is designed and warrantied for permanent exterior use.

How is the fixture controlled in an AV or building system? It supports DMX and RDM with a galvanic-isolated RS-485 transceiver and stand-alone control of up to 20 scenes with individual fade and hold times.

Can the beam angle be changed after installation? Yes. Externally mounted Micro Lens Pro S diffusers (narrow, medium, wide, very wide, asymmetric) and an optional baffle snoot let you reconfigure beam coverage on site.

How is color consistency maintained across multiple units? Each fixture is factory color calibrated with tight color and flux binning for close matching across an installed array.

What power and data connections are provided? The fixture ships with pre-mounted power and DMX IN/OUT cable tails, with an optional hybrid IN/OUT cable solution available.

What warranty and support apply? This fixture is covered by Martin by HARMAN's manufacturer warranty; contact Creation Networks for terms and integration support.
