Martin Exterior Wash Pro S QUAD – IP66 LED Wash, EU Grey

Product Overview

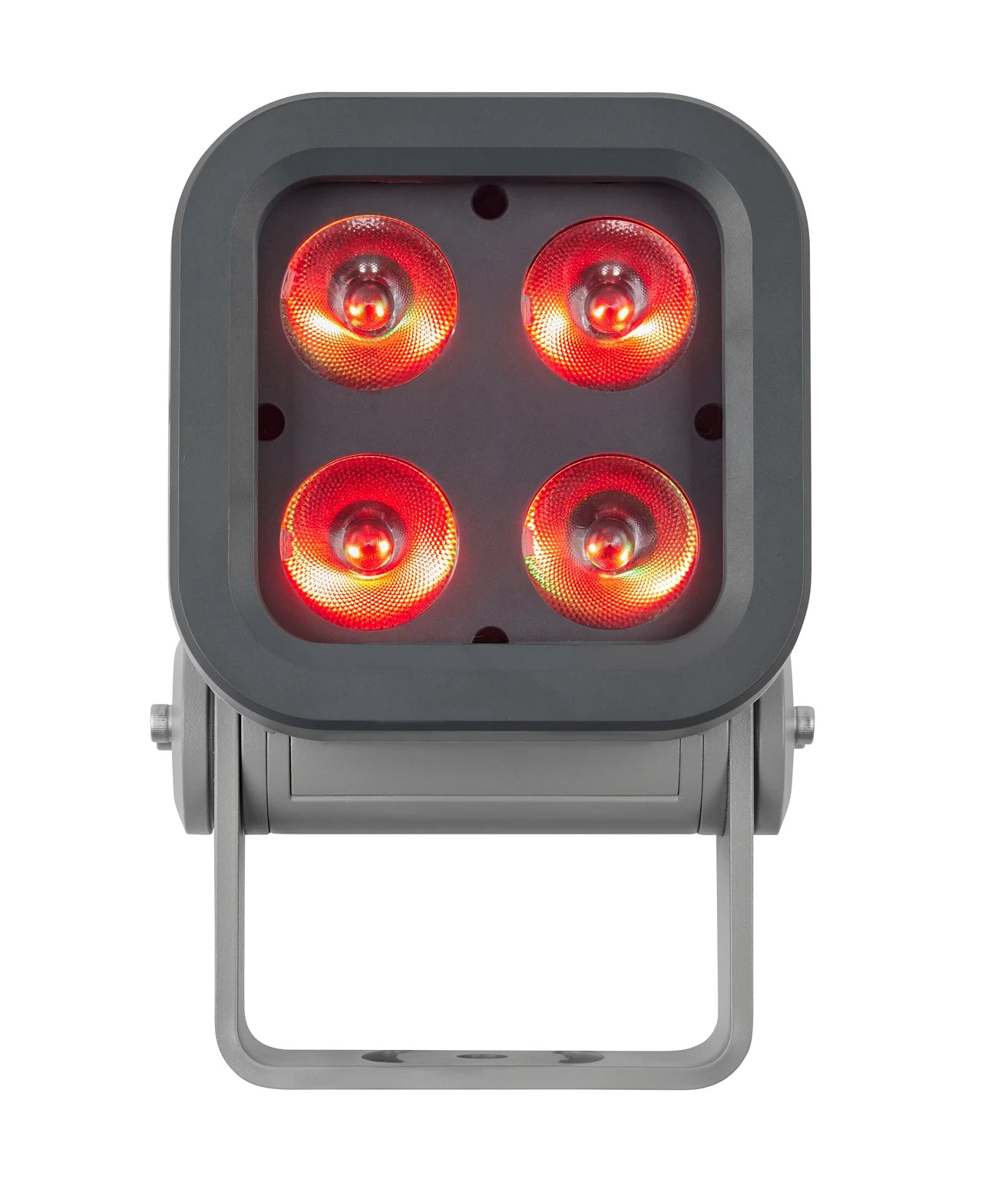

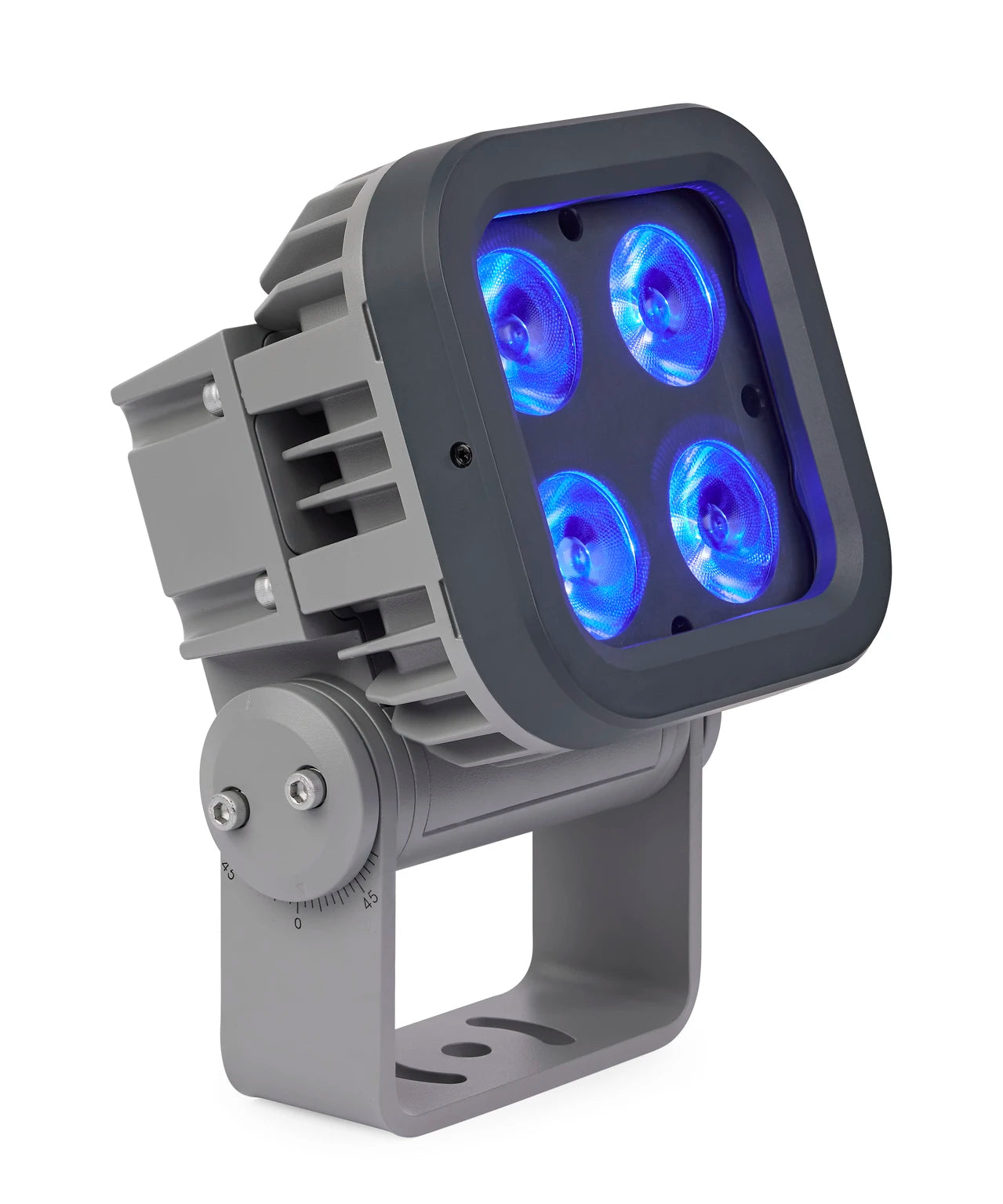

The Martin Exterior Wash Pro S QUAD is a compact IP66-rated RGBW LED wash light engineered for illuminating smaller structures, building features, and landscaping in permanent outdoor installations. This Martin Exterior Wash Pro S QUAD wash fixture uses RGB plus color temperature control to deliver saturated color and tunable white from a rugged, weatherproof housing. It is well suited to architectural and commercial facade lighting where durability and color flexibility are required. This model ships in the EU configuration with a traffic grey finish.

Product Description

The Exterior Wash Pro S QUAD is the small-format member of Martin's Exterior Wash Pro family, designed for harsh outdoor conditions and creative architectural lighting. It combines RGB color mixing with color temperature control (CTC) that ranges from 1000 K to 12500 K in 50 K steps, allowing both vivid color washes and precise white tuning. Intensity is continuously adjustable from 0 to 100 percent, and an extended control mode adds regular and random strobe effects. The fixture is housed in cast aluminum and measures 141 mm long, 155 mm wide, and 236 mm high, with a weight of 4.4 kg. It carries an IP66 ingress rating, an IK08 impact rating, and ISO 12944-6 C5 High corrosion resistance, making it suitable for demanding exterior environments. The housing is available in traffic grey (RAL 7042) or traffic white (RAL 9016), with other colors available on request; this unit is supplied in the EU grey finish. As part of the Exterior Wash Pro S range, the fixture accepts interchangeable Micro Lens Pro S optics to set the beam spread for each application. The result is a versatile, user-friendly wash solution for accenting smaller buildings, features, and landscape elements.

Key Features

• RGB plus CTC color — RGB color mixing with color temperature control from 1000 K to 12500 K in 50 K steps provides both saturated color and tunable white.
• IP66 weatherproofing — The IP66 ingress rating makes the fixture suitable for permanent outdoor installation.
• Impact and corrosion rated — An IK08 impact rating and ISO 12944-6 C5 High corrosion resistance support use in demanding environments.
• Cast aluminum housing — The cast aluminum enclosure is offered in traffic grey or traffic white; this model is the EU grey finish.
• Continuous dimming and strobe — Intensity adjusts continuously from 0 to 100 percent, with regular and random strobe available in extended mode.
• Compact footprint — At 141 by 155 by 236 mm and 4.4 kg, the fixture fits discreetly into architectural installations.

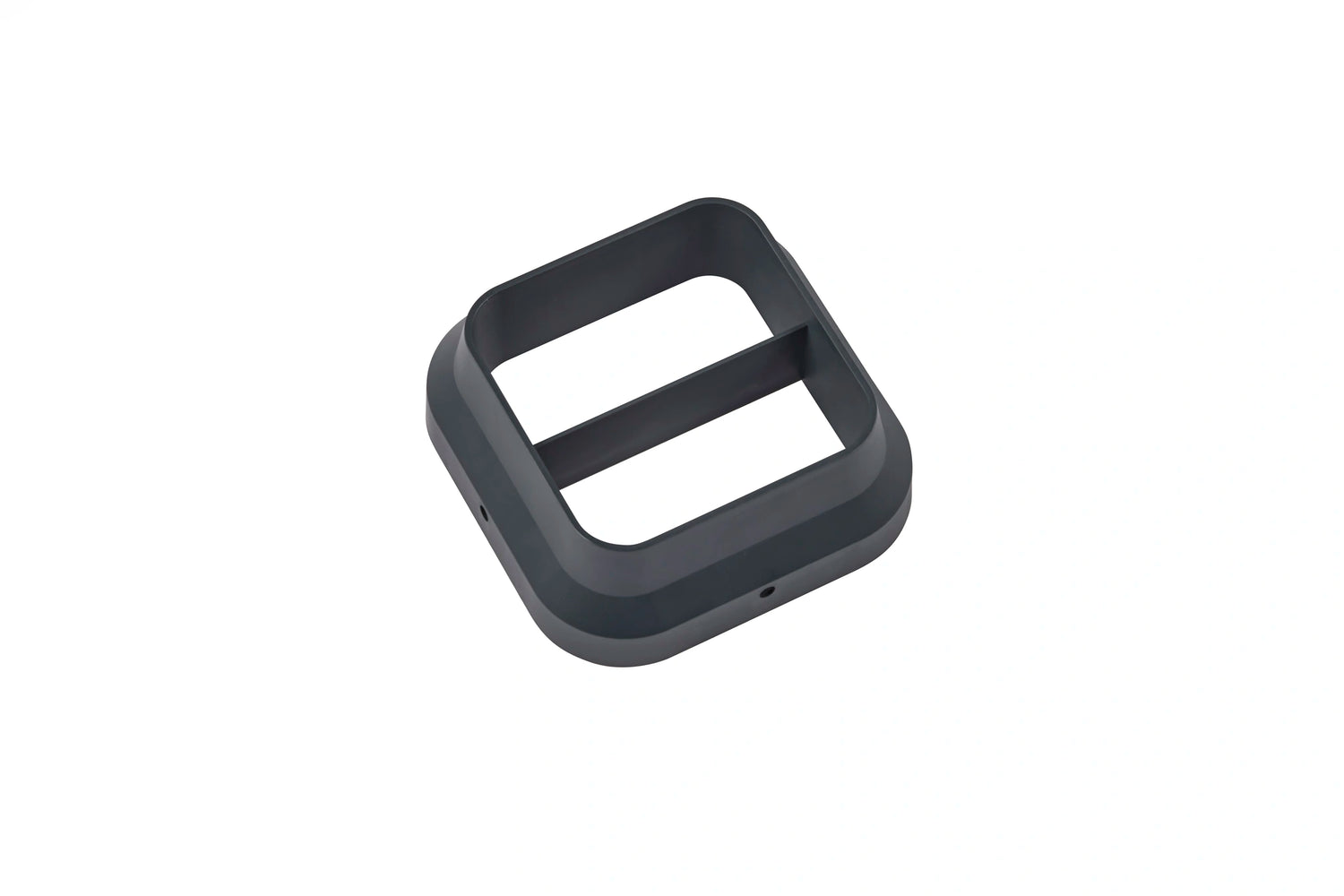

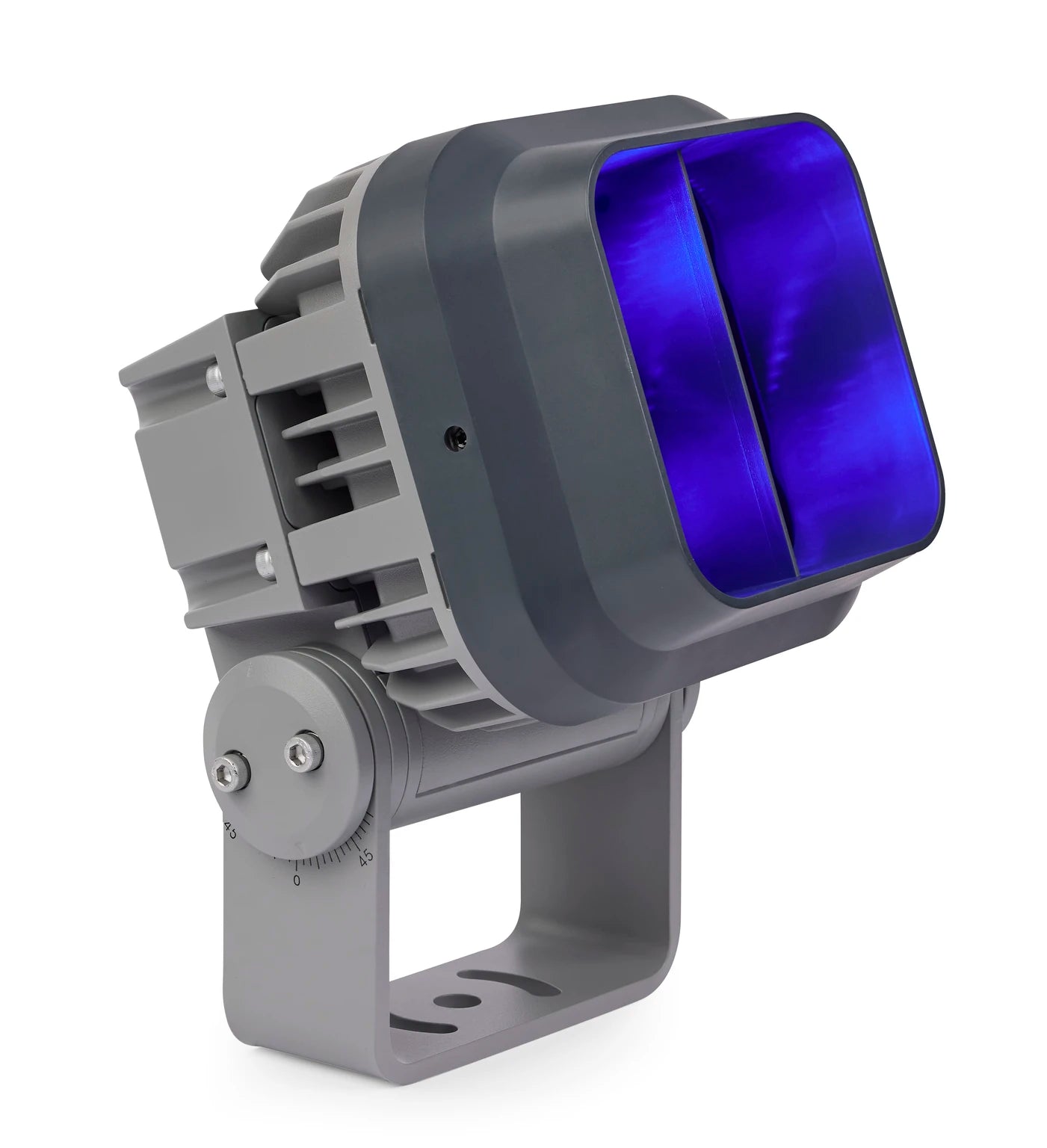

• Interchangeable optics — The fixture accepts Micro Lens Pro S optics to tailor beam spread to each application.

Typical Applications

• Government space
• Commercial meeting space
• House of worship
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Is the Exterior Wash Pro S QUAD rated for outdoor use? Yes. It carries an IP66 ingress rating, an IK08 impact rating, and ISO 12944-6 C5 High corrosion resistance for permanent exterior installation.

Can I change the beam angle? Yes. The fixture accepts interchangeable Micro Lens Pro S optics, so the beam spread can be set to suit the surface being lit.

How does it integrate into a control system? The fixture offers RGB plus CTC control and an extended mode with strobe, allowing integration with standard lighting control systems. Contact Creation Networks for guidance.

What finish does this model use? This is the EU configuration in cast aluminum traffic grey (RAL 7042); traffic white and other colors are available on request.

Is the fixture covered by a warranty? The fixture is covered by Martin by HARMAN's manufacturer warranty; contact Creation Networks for terms.

Where can I get installation and support assistance? Creation Networks can advise on optics selection, mounting, and control integration for the Exterior Wash Pro S QUAD.
