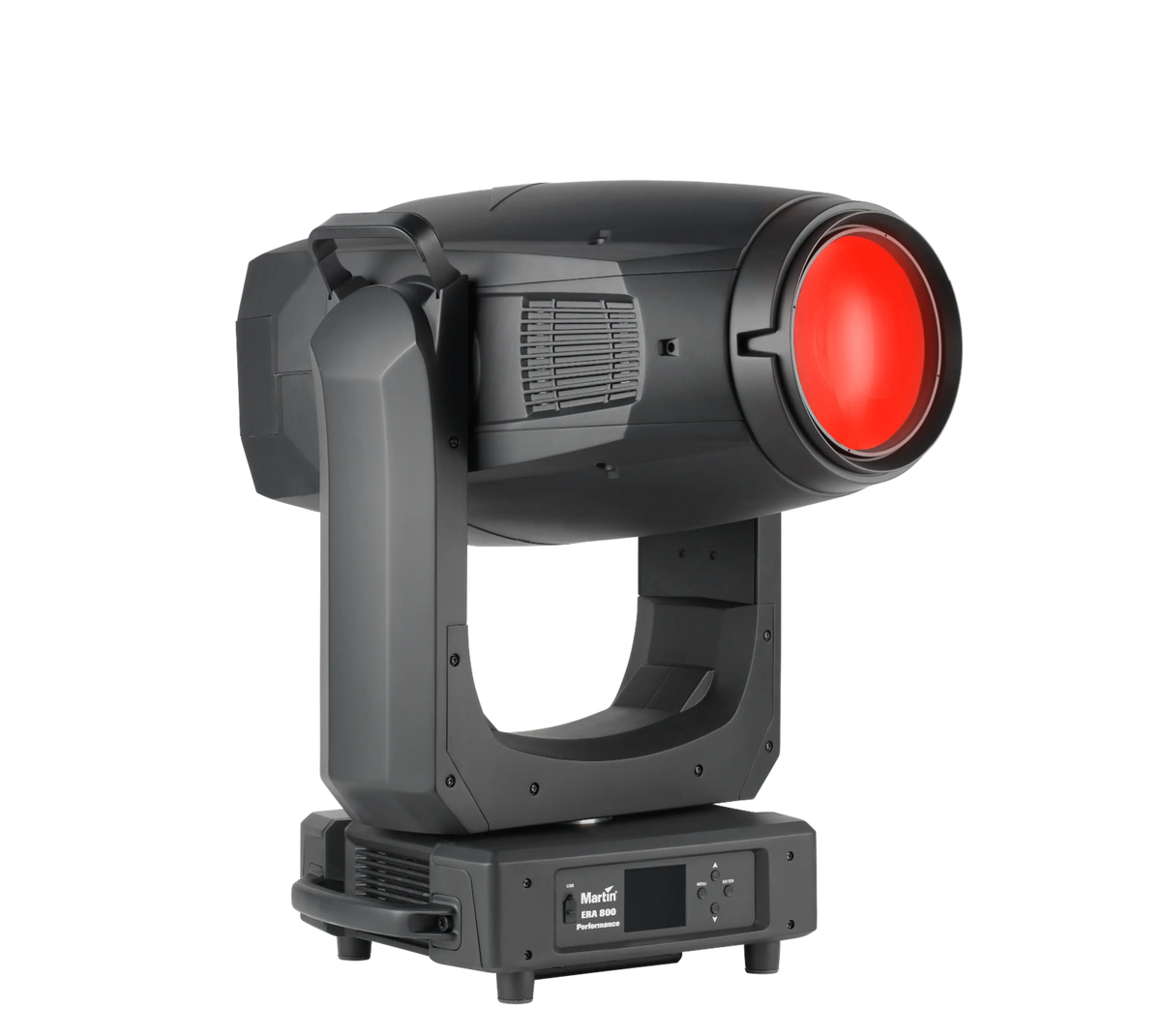

Martin ERA 800 Performance – 800W LED Profile with Framing

Product Overview

The Martin ERA 800 Performance is the flagship of the ERA moving head range: an 800 watt LED profile fixture with a full-curtain framing system and CMY color mixing, built for arena touring, large theatrical productions, and broadcast studios that need precise shuttering and high output from a single instrument.

Product Description

The ERA 800 Performance takes the ERA platform to its highest output tier and adds the framing capability that separates a performance fixture from a straight profile. Four individually controllable blades on a rotating module allow precise shuttering, complete blackout, and flexible shape generation — the tools stage and broadcast designers rely on to keep light off scenery, cycs, and camera positions.

An 800 watt white LED engine drives sharp, flat-field projection at long throw distances. Full CMY color mixing with a color wheel and linear CTO delivers everything from soft pastels to saturated primaries, with color temperature held consistent across the full dimming range. Static and rotating gobo wheels, prism, and frost extend the fixture from hard-edge projection through to wash-style looks.

Fully electronic dimming and shutter provide fast strobe, instant blackout, and smooth fades flat to zero. Control is over USITT DMX512 with RDM support and Ethernet-based protocols, and the modular construction keeps field service fast between shows.

Key Features

• 800W White LED Engine — Top of the ERA range, sized for arena trim heights and long throws.
• Full-Curtain Framing System — Four independent blades on a rotating module for precise shuttering, blackout, and shape generation.
• Full CMY Color Mixing with Linear CTO — Broadcast-accurate color with continuous color temperature correction.
• Static and Rotating Gobo Wheels — Deep texture library for scenic projection and morphing aerial effects.
• Prism and Frost — Expands beam, effect, and wash capability from one fixture.
• Electronic Dimming and Shutter — Fast strobe, instant blackout, flat field to zero percent.
• DMX / RDM / Ethernet Control — Clean integration into professional lighting control networks.
• Modular, Service-Friendly Build — Effect modules designed for quick swap-out between shows.

Typical Applications

• Arena and stadium concert touring
• Major theatrical and opera productions
• Broadcast studio key and effect lighting
• Performing arts centers and large auditoriums
• House of worship main-stage rigs
• Rental inventory for high-end production companies

Technical Specifications

For complete and current technical specifications, please refer to the official product page at martinlighting.com.

Frequently Asked Questions

What is the difference between the ERA 800 Performance and the ERA 800 Profile?

Both use the 800 watt LED engine. The Performance adds the full-curtain framing system with four individually controllable blades on a rotating module; the ERA 800 Profile (SKU: 9025123581) focuses on hard-edge beam control and gobo projection without framing.

How does it compare to the ERA 600 Performance?

The ERA 800 Performance uses an 800 watt engine against the ERA 600 Performance's 550 watt engine, providing higher output for larger venues while sharing the framing and color feature set.

Is it suitable for broadcast key lighting?

Yes. Flicker-free electronic dimming, linear CTO, and the framing system make it well suited to studio key and effect positions.

Is the fixture rated for outdoor use?

No. The ERA 800 Performance is an indoor fixture. For IP-rated outdoor applications, see the IP-rated models in the Martin ERA and MAC ranges.

What accessories are available?

Compatible accessories include the ERA 800 CRI Boost Filter (SKU: MAR-91614059) and the flight case for 2 x ERA 800 (SKU: 91512255).

What warranty and support are available?

Martin fixtures are covered by the manufacturer's limited warranty. Creation Networks provides commercial AV sales support and can assist integrators with specification, quantities, and compatible accessories.
