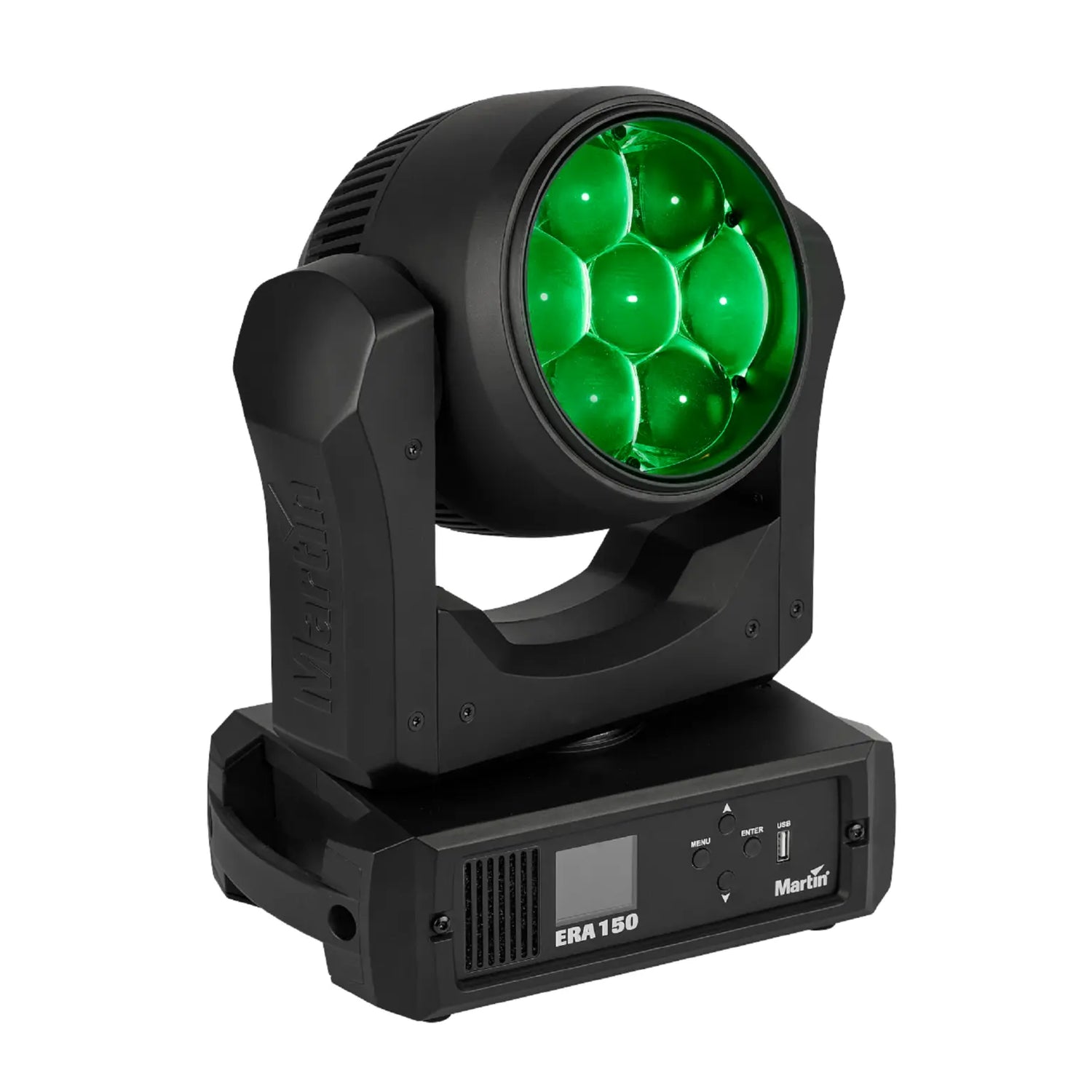

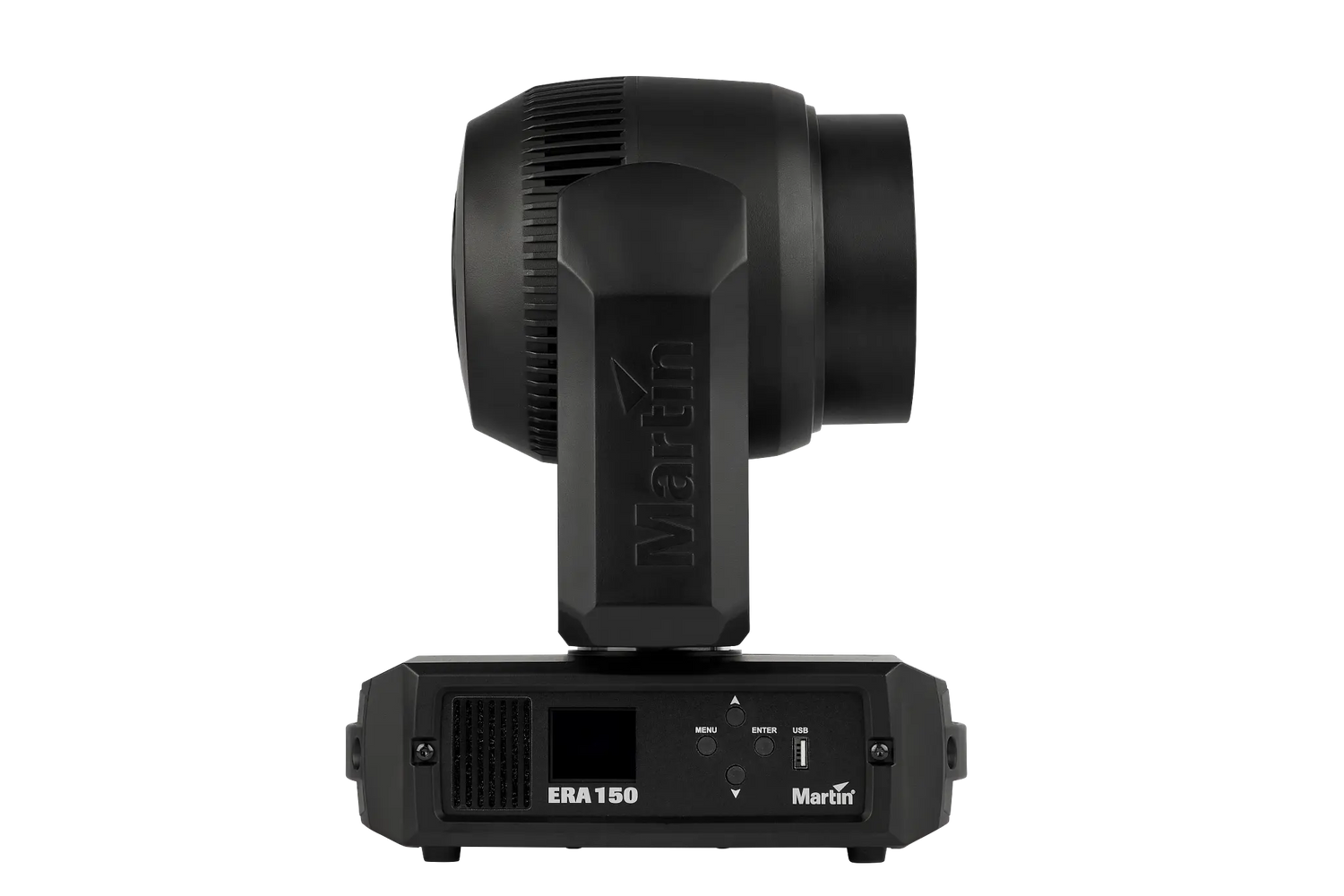

Martin ERA 150 Wash WHITE – Compact Moving Head LED Wash Fixture

Product Overview

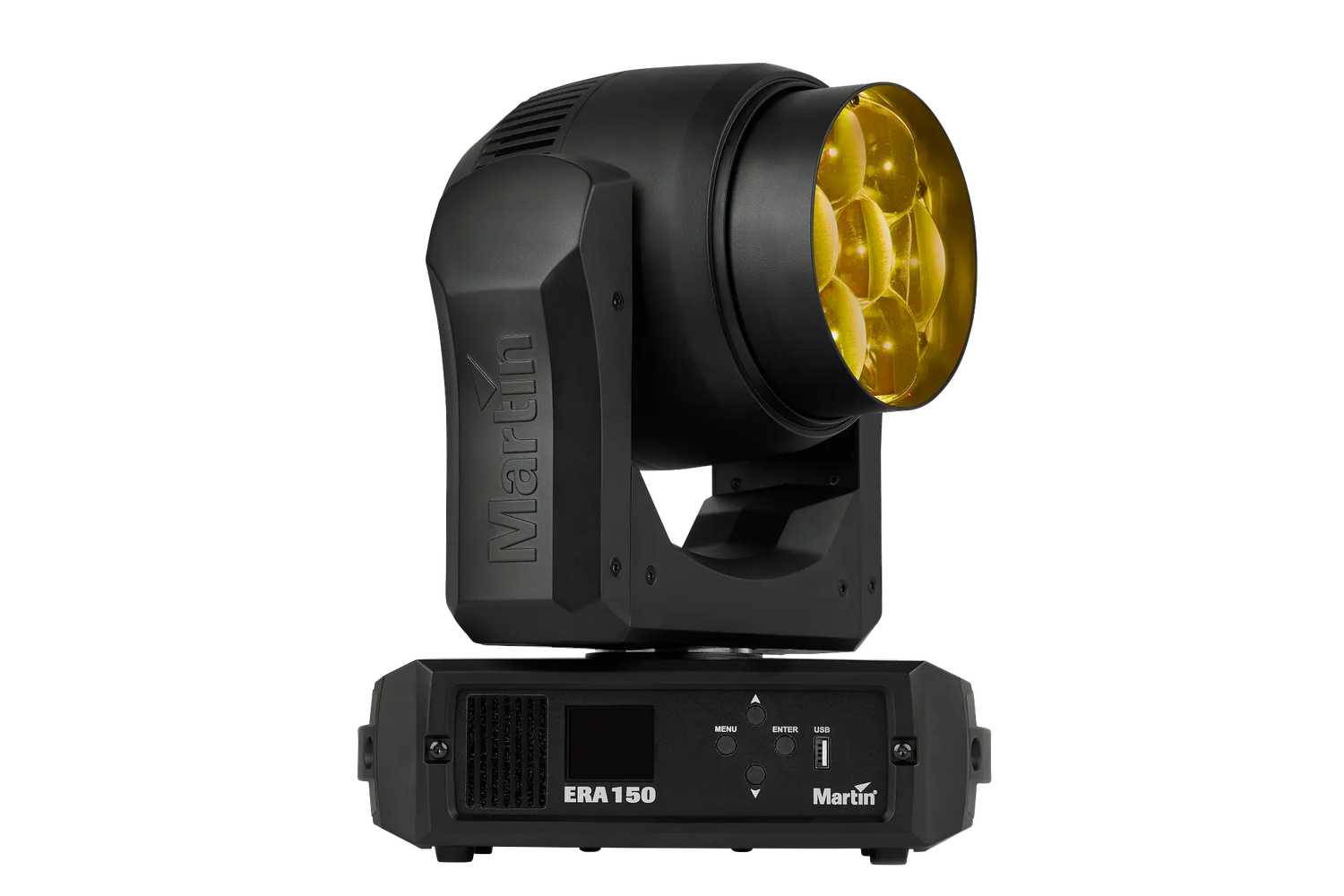

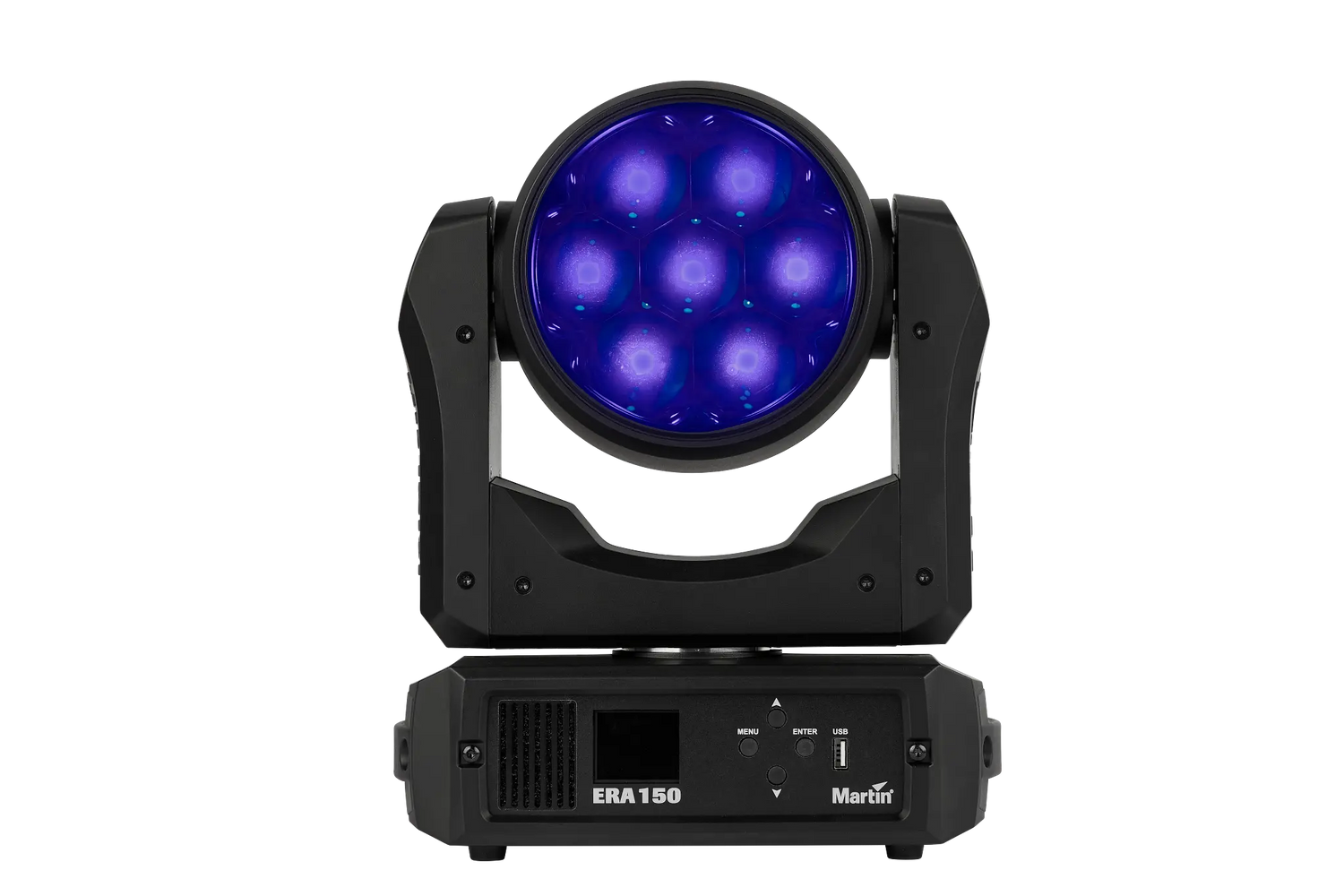

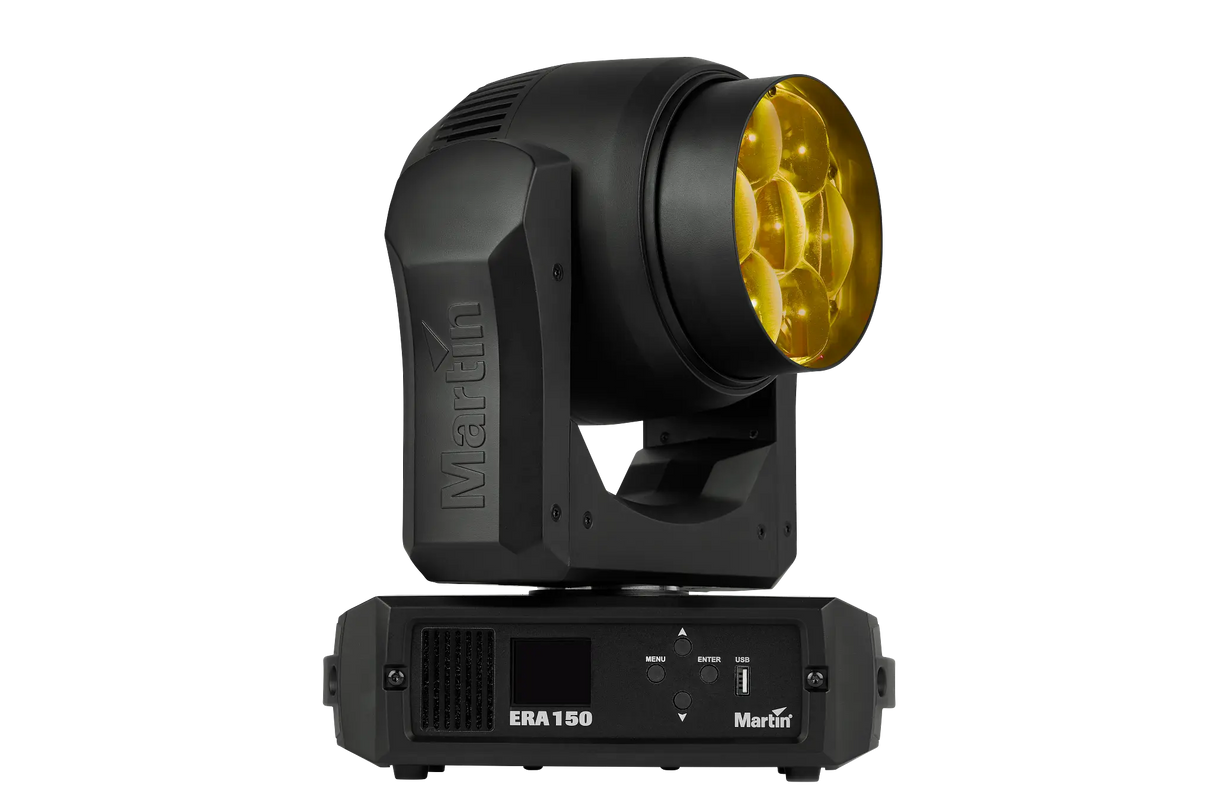

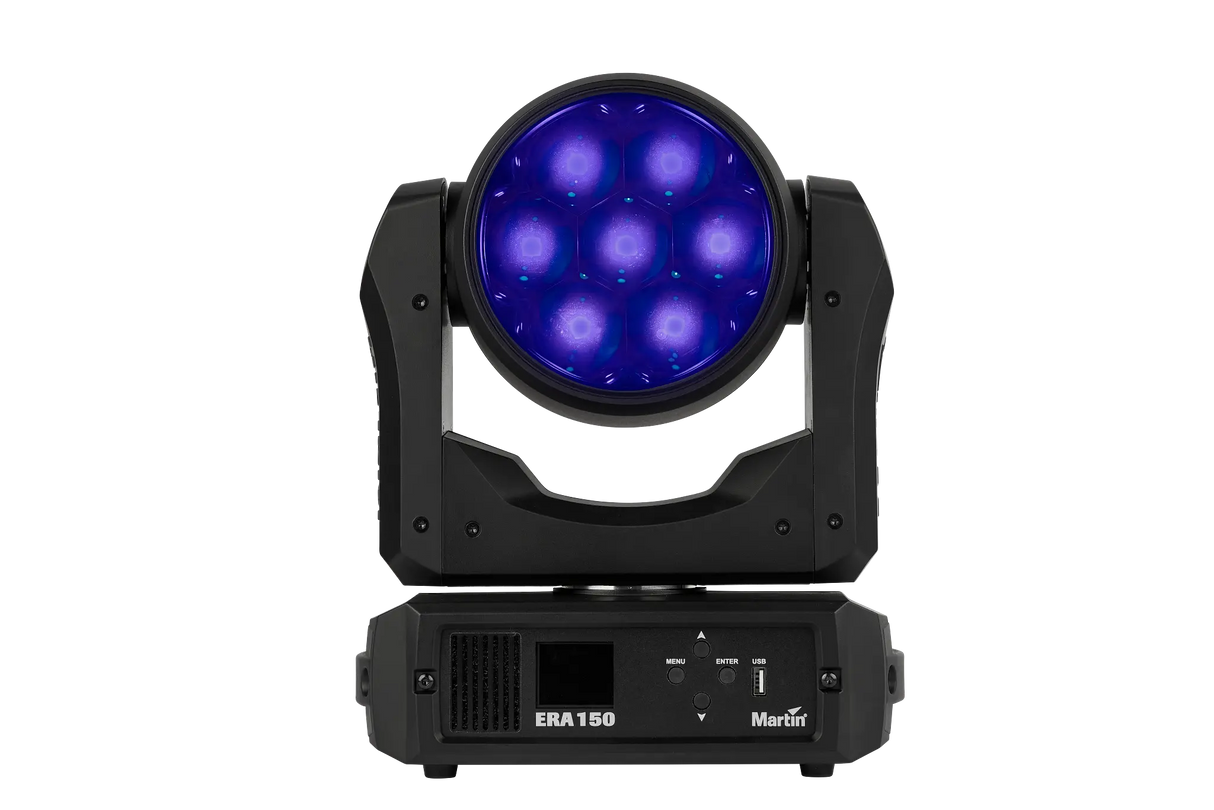

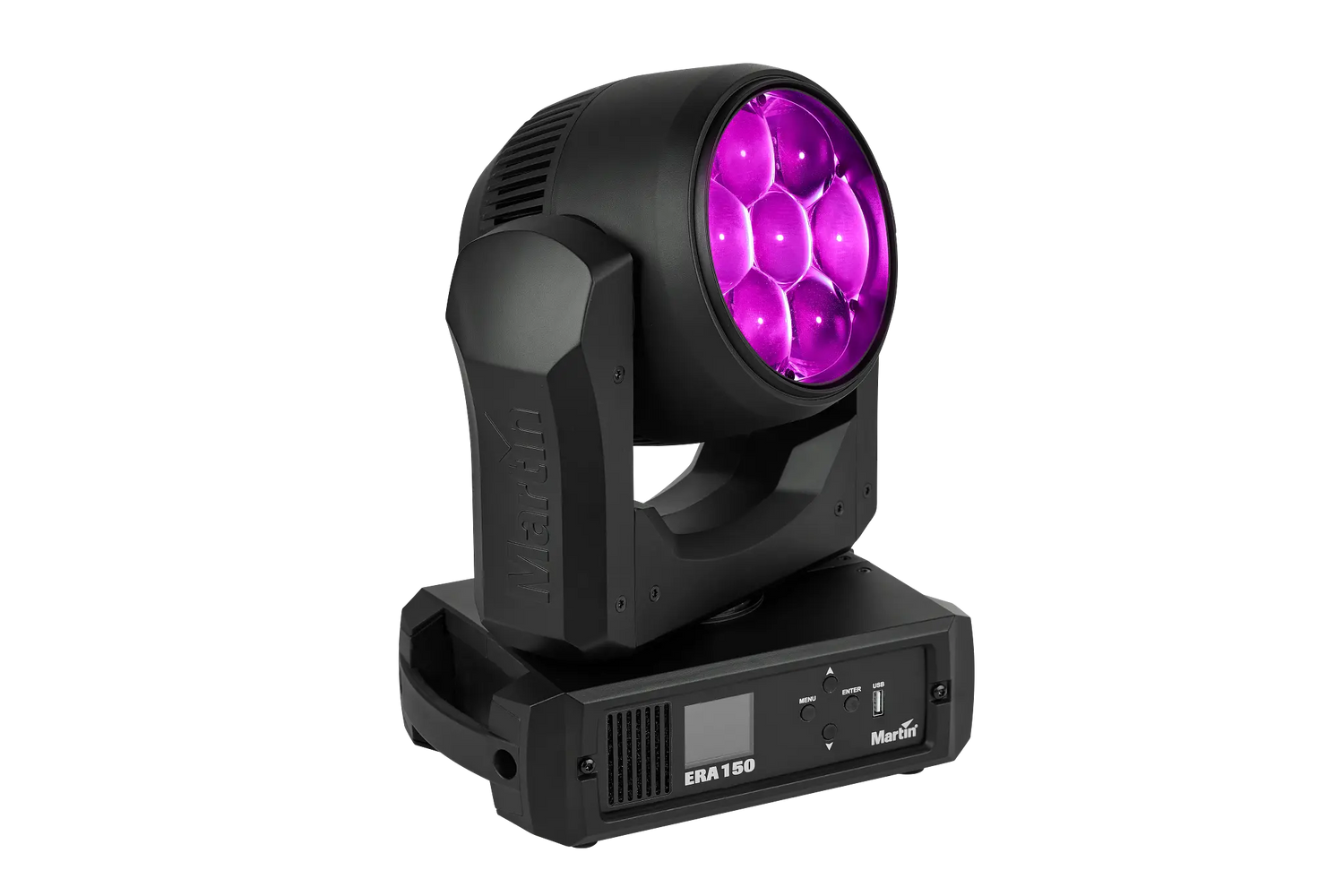

The Martin ERA 150 Wash is a compact moving-head LED wash fixture that delivers class-leading output and a wide zoom in a lightweight, affordable package. Its 7 x 40W RGBW engine produces 3,900 lumens with full-gamut color calibration and a 4.2° to 58° motorized zoom, making it a versatile workhorse for conference rooms, houses of worship, and theaters. A whisper-quiet Theatre Mode and accurate color temperature control make this compact moving head wash fixture equally at home on camera and on stage.

Product Description

The ERA 150 Wash brings high output and accurate color to a compact, budget-conscious moving head. A newly designed 7 x 40W RGBW light engine produces 3,900 lumens, roughly twice the brightness of the previous generation of compact wash moving heads, covering larger stages and longer throws than its size suggests. The 4.2° to 58° motorized zoom moves quickly between tight mid-air looks and broad even washes. A full-gamut color calibration system ensures consistent color reproduction from fixture to fixture and supports a dedicated color temperature control channel for dialing in a precise white point. In Theatre Mode the fixture runs at just 33 dB, quiet enough for the most demanding performing-arts and broadcast environments. The lightweight 7.3 kg chassis is durable and fast to rig, and practical touches such as USB firmware updates and a battery-backed display simplify setup and maintenance. Control is handled over 16-bit DMX with RDM, configured from an onboard LCD panel, so the fixture integrates cleanly into existing commercial AV and lighting control networks. This unit ships in a white finish for venues that prefer fixtures to blend into light-colored ceilings and trusses.

Key Features

• 7 x 40W RGBW Light Engine — Produces 3,900 lumens, roughly twice the output of the previous generation of compact wash moving heads.
• 4.2°–58° Motorized Zoom — A wide zoom range covers tight mid-air beams through broad stage washes from a single compact fixture.
• Full-Gamut Color Calibration — Delivers consistent, repeatable color fixture-to-fixture with a dedicated color temperature control channel.
• Whisper-Quiet Theatre Mode — Operates at just 33 dB, suitable for theaters, houses of worship, and quiet broadcast environments.
• Compact, Lightweight Chassis — At 7.3 kg the fixture is easy to rig in tight positions and high quantities.
• Practical Service Features — USB firmware updates and a battery-backed display simplify configuration and maintenance.
• DMX / RDM Control — 16-bit control over DMX with RDM support integrates cleanly into standard lighting networks.

Typical Applications

• Conference and Meeting Rooms — Compact, quiet wash coverage for corporate AV and presentation spaces.
• House of Worship — Low-noise Theatre Mode and accurate color suit worship production.
• Theater and Auditorium — Smooth color washes and quiet operation for performing-arts venues.
• Broadcast Studio — Repeatable, calibrated color for on-camera lighting.
• Multi-Purpose and All-Hands Rooms — Versatile, affordable wash light for flexible commercial spaces.

Technical Specifications

Specifications sourced from Martin (Harman Professional).

Frequently Asked Questions

How does the White version differ from the standard ERA 150 Wash?
It is functionally identical and shares all specifications; only the housing color differs, with a white finish to blend into light-colored ceilings and trusses.

How quiet is it for theater or broadcast use?
In Theatre Mode the fixture operates at about 33 dB, quiet enough for performing-arts venues, houses of worship, and on-camera environments.

What control protocols does it use?

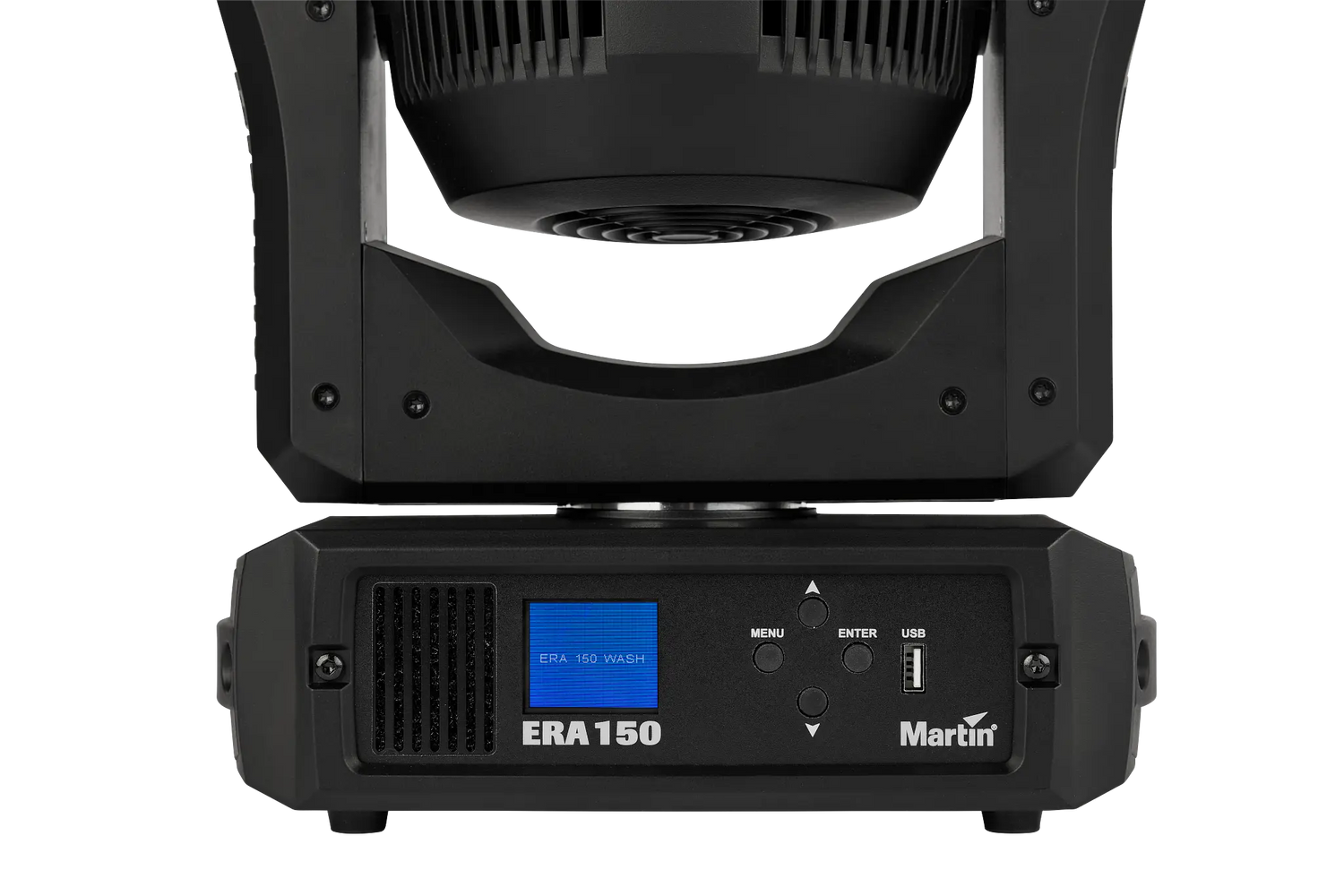

16-bit DMX with RDM support, configured from an onboard LCD panel; firmware can be updated over USB.

Does it maintain consistent color across multiple fixtures?
Yes. A full-gamut color calibration system provides repeatable color fixture-to-fixture, with a dedicated color temperature control channel.

How is it powered and rigged?

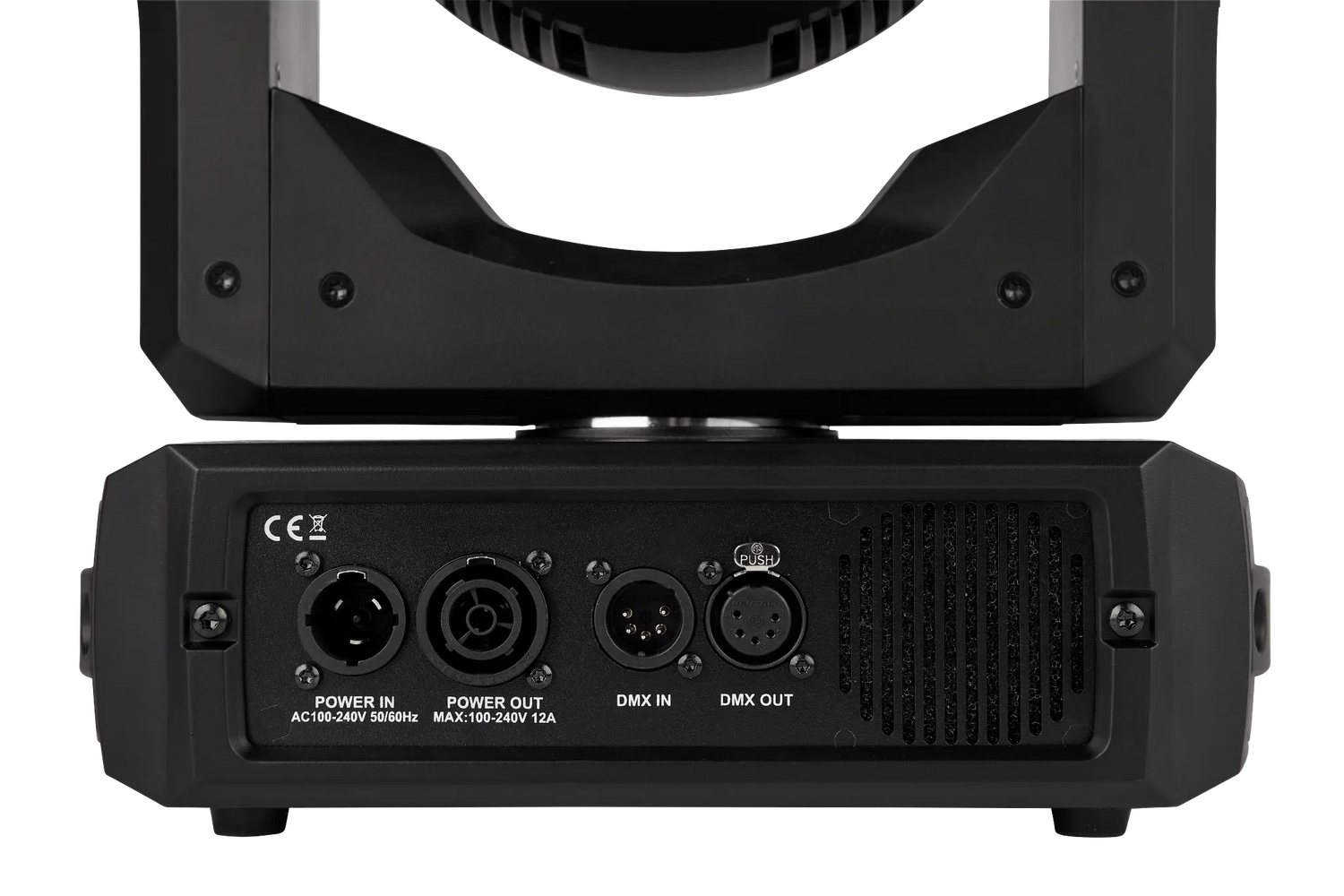

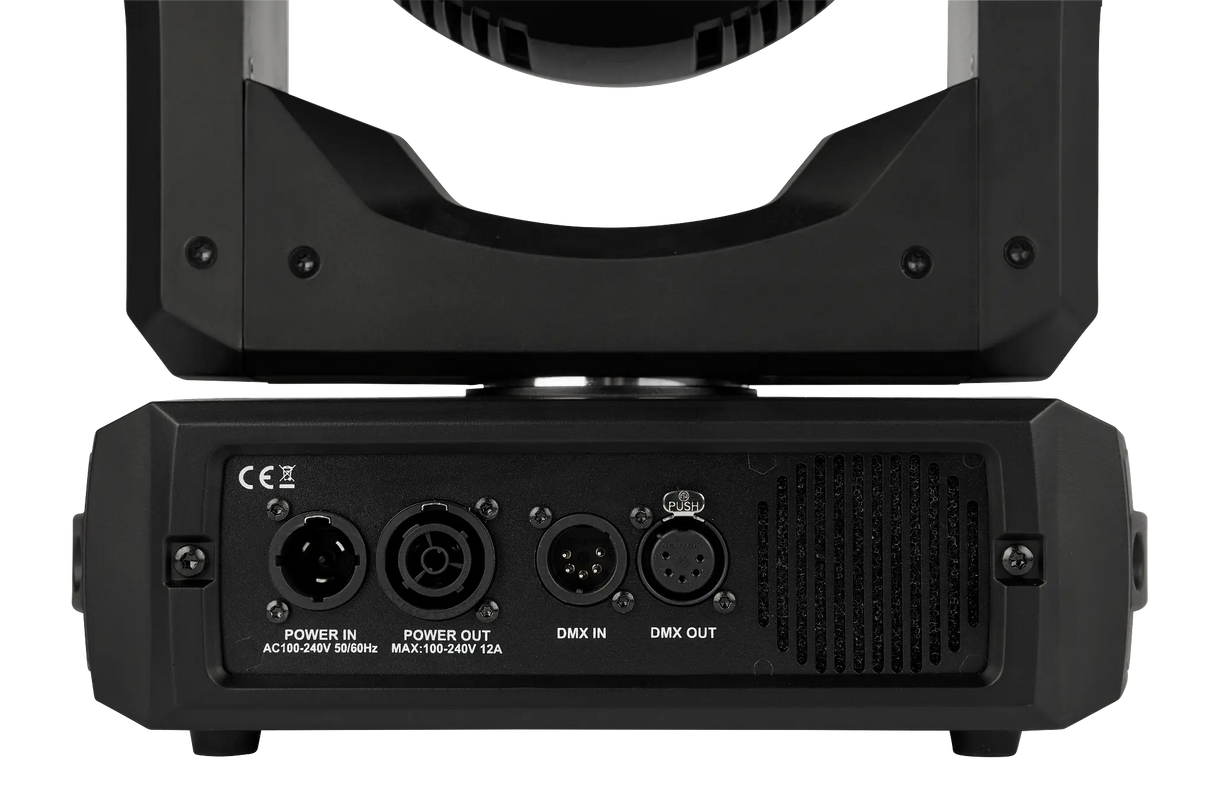

Power is via a Neutrik powerCON TRUE1 TOP connector. At 7.3 kg it mounts on a standard clamp bracket; always use a rated safety cable.

What warranty and support are available?
Martin fixtures carry the manufacturer's limited warranty, and Creation Networks supports integrators with specification and volume procurement.
