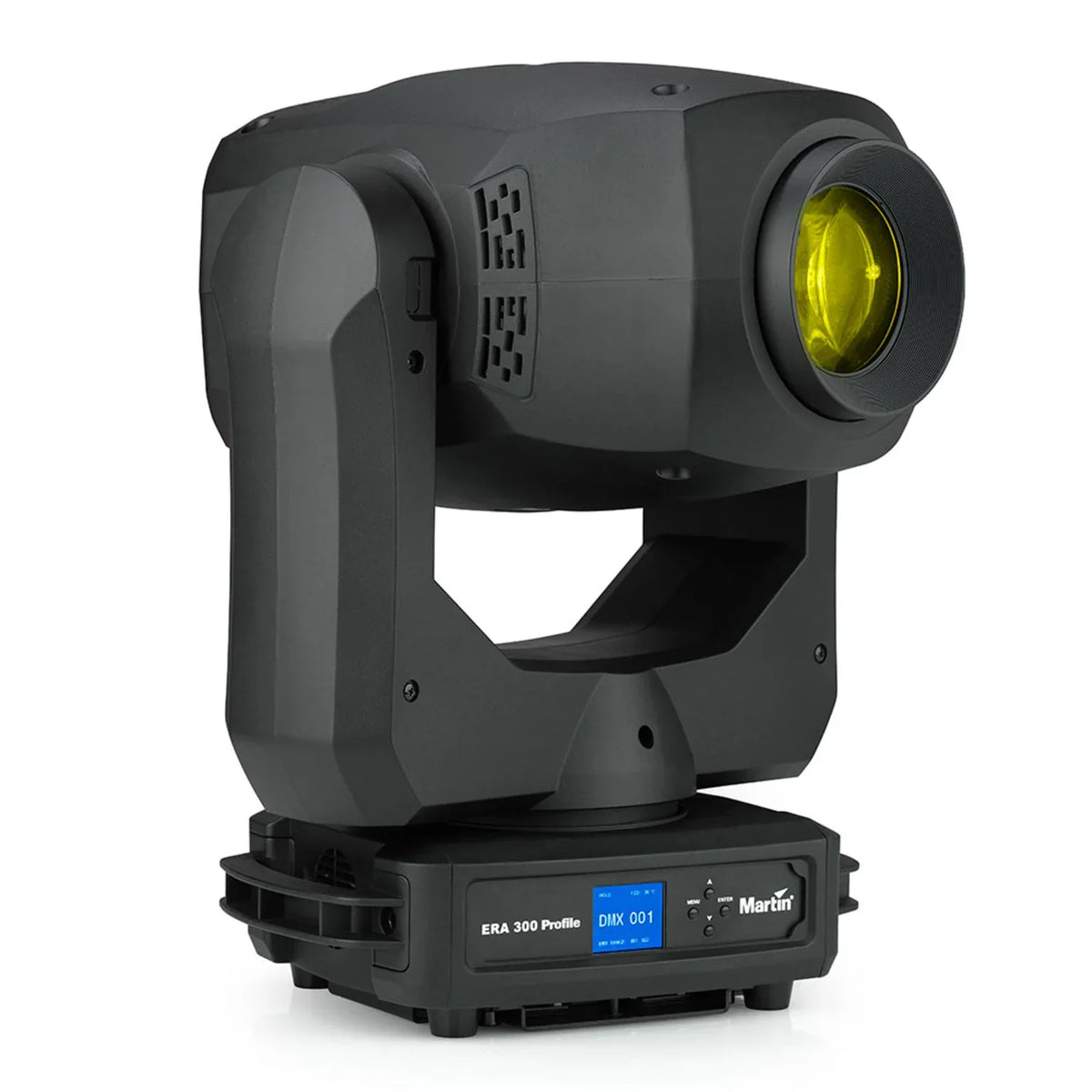

Martin ERA 300 Profile – Compact LED Moving Head

Product Overview

The Martin ERA 300 Profile is a compact LED moving head profile designed as an everyday workhorse fixture for theatres, houses of worship, and corporate event spaces. Built around a 260 W white LED engine, this Martin ERA 300 Profile moving head delivers full CMY color mixing, dual gobo layers, and a motorized zoom in a lightweight, road-ready package. It suits lighting designers who need a versatile profile spot moving head for repeatable, high-quality output. The fixture combines DMX and RDM control with a modular service design for fast maintenance.

Product Description

The ERA 300 Profile is a profile-style moving head built on a 260 W LED light engine rated at a 6500 K color temperature with a CRI of 74. It produces 9,500 lumens of output, with a peak intensity of 86 kcd and an efficacy of 30 lumens per watt. The optical system provides a motorized zoom range of 13 to 28 degrees together with a motorized focus lens for sharp framing of patterns and textures. Pan and tilt are driven across 540 degrees and 260 degrees respectively, using 16-bit coarse and fine control for precise positioning. Color tools include full CMY color mixing plus a color wheel, while two gobo layers offer seven user-replaceable rotating gobos and nine static gobos. Additional effects include an iris and a rotating prism for beam shaping and aerial looks. Overall intensity is adjustable from 0 to 100 percent with 16-bit electronic dimming and strobe. The fixture is a DMX-compliant device with RDM remote configuration, simplifying setup in larger rigs. Its modular design supports safe, quick, and easy maintenance, helping reduce downtime over the life of the fixture.

Key Features

• 260 W LED engine — A 260 W white LED source rated at 6500 K and a CRI of 74 drives the fixture's output.
• 9,500 lumen output — The fixture produces 9,500 lumens with a peak intensity of 86 kcd for strong projection.
• Motorized zoom and focus — A 13 to 28 degree motorized zoom paired with a motorized focus lens allows sharp gobo and beam framing.
• Full CMY color mixing — Continuous CMY color mixing plus a color wheel provides a wide palette of colors.
• Dual gobo layers — Seven user-replaceable rotating gobos and nine static gobos enable layered pattern projection.
• Beam effects — An iris and a rotating prism extend the fixture's beam-shaping and aerial effect capabilities.
• Wide pan and tilt — 540 degrees of pan and 260 degrees of tilt with 16-bit coarse and fine control support precise movement.
• DMX and RDM control — The fixture is DMX-compliant with RDM remote configuration for streamlined system integration.
• Modular maintenance — A modular design allows safe, quick, and easy servicing to reduce downtime.

Typical Applications

• House of worship
• Auditorium
• Broadcast studio
• Conference room
• Multi-purpose room
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

Is the ERA 300 Profile compatible with standard DMX consoles? Yes. The fixture is a DMX-compliant device and also supports RDM for remote configuration, allowing it to integrate with standard lighting control systems.

Can the gobos be changed in the field? Yes. The fixture includes seven user-replaceable rotating gobos, and its modular design supports quick access for service and gobo changes.

How does it fit into a larger AV or lighting system? Pan and tilt control, CMY color mixing, and RDM addressing let the ERA 300 Profile integrate alongside other moving heads in theatre, worship, and broadcast rigs. Contact Creation Networks for integration guidance.

What kind of maintenance does the fixture require? Its modular design allows safe, quick, and easy maintenance, simplifying routine servicing of optical and mechanical components.

Is the fixture covered by a warranty? The fixture is covered by Martin by HARMAN's manufacturer warranty; contact Creation Networks for terms.

Where can I get installation and support assistance? Creation Networks can advise on rigging, addressing, and system integration for the ERA 300 Profile.
