Logitech Tap IP Touch Controller 952-000085 (10.1", Graphite)

Product Overview

The Logitech Tap IP 952-000085 is a 10.1-inch PoE meeting room touch controller in Graphite, purpose-built for Logitech video conferencing room solutions. As a network-connected touch controller, Tap IP uses a single Power over Ethernet connection for both power and data, untethering the controller from the room compute and eliminating long USB runs. It delivers one-touch join across Microsoft Teams on Android and Zoom Rooms, with clean cable management and a range of table, riser, and wall mounts for flexible placement. Tap IP is a leading PoE touch controller for organizations standardizing room control over the network.

Product Description

Tap IP provides a consistent meeting room control experience with a spacious 10.1-inch IPS touchscreen running at 1280 x 800, 400 nits brightness, and a 1000:1 contrast ratio, finished with an oleophobic anti-fingerprint coating. A single PoE connection (IEEE 802.3af Type 1, Class 3) carries power and data, so the controller installs anywhere in the room without long cable runs to the compute. Built-in cable retention and a strain-relief system hide the PoE cable entirely within the enclosure and secure it against accidental disconnection. A comfortable 14-degree display angle and integrated PIR motion sensor provide always-on readiness, while integrated accelerometer, ambient light, and ultrasonic sensors support setup and management. Tap IP mounts via a 100mm VESA pattern with available table, riser, and wall mounts, and is managed through Logitech Sync, Microsoft Teams Admin Center, or Zoom Device Management. Hardware security includes AES-128 full disk encryption, device attestation, Arm TrustZone key protection, and a Kensington lock slot. This unit is the Graphite finish; a White variant (952-000088) is also available.

Key Features

• Single PoE Connection — One Power over Ethernet cable (IEEE 802.3af Type 1, Class 3) carries both power and data for flexible placement anywhere in the room.
• 10.1-Inch IPS Touchscreen — A 1280 x 800 IPS display with 400 nits brightness, 1000:1 contrast, 85-degree viewing angle, and 10-point multi-touch supports clear, responsive control.
• Clean Cable Management — A built-in retention and strain-relief system hides the PoE cable inside the enclosure and secures it against unwanted disconnections.
• Always-On Readiness — An integrated PIR motion sensor wakes the controller as a user approaches and conserves power when idle.
• Multiple Sensors — Integrated accelerometer, ambient light sensor, and ultrasonic speaker support installation and management.
• Flexible Mounting — A 100mm VESA FDMI pattern with available table, riser, and wall mounts allows placement near room participants.
• Platform Certified — Certified or compatible as a touch controller for Microsoft Teams on Android and Zoom Rooms.
• Hardware Security — AES-128 full disk encryption, device attestation, Arm TrustZone key protection, and a Kensington lock slot.
• Centralized Management — Monitored and managed through Logitech Sync, Microsoft Teams Admin Center, and Zoom Device Management.

Typical Applications

• Conference room touch control over a single PoE network connection
• Huddle room one-touch join for Teams Rooms and Zoom Rooms
• Boardroom and large-room control with the compute located remotely
• Multi-purpose rooms requiring flexible controller placement without USB runs
• Commercial meeting spaces standardizing room control over the network
• Training rooms and all-hands rooms managed centrally through Sync

Technical Specifications

Specifications sourced from the Logitech Tap IP datasheet.

Competitor Comparison

Tap IP competes directly with the Poly TC10 and Cisco Room Navigator as a single-cable PoE touch controller, with the advantage of native Logitech Sync management alongside Teams and Zoom platform tools.

Frequently Asked Questions

Does Tap IP require a separate power supply?
No. Tap IP draws power and data over a single PoE connection (IEEE 802.3af Type 1, Class 3), so it needs a PoE-enabled switch or PoE injector and an Ethernet cable.

Which platforms does Tap IP support?
Tap IP is certified or compatible as a touch controller for Microsoft Teams on Android and Zoom Rooms. Confirm current certifications at logitech.com/support/tap-compatibility.

How is Tap IP different from the USB Tap with Cat5e Kit?
Tap IP connects to the network over a single PoE cable, while the Tap with Cat5e Kit connects to a host PC over USB extended via Cat5e. Choose Tap IP for network-connected room solutions.

What cabling do I need?
A Cat5e or Cat6 Ethernet run to a PoE switch port or PoE injector. The internal retention system secures the cable within the enclosure.

What mounting options are available?

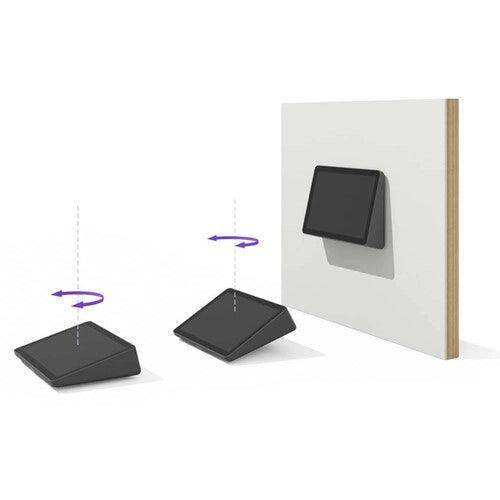

Tap IP uses a 100mm VESA pattern and supports optional table, riser, and wall mounts for placement near participants.

Is a White version available?
Yes. The same controller is offered in White as part number 952-000088. Contact Creation Networks for availability.
