Lightware HDMI-TPS226-H10 Bundle – HDMI TPS Extension Kit
Product Overview
The Lightware HDMI-TPS226-H10 Bundle is a complete TPS-based HDMI extension kit designed for professional AV integrators who need a verified, ready-to-deploy solution. It transmits 4K UHD HDMI, Ethernet, RS-232, and IR over a single CAT cable using the proven Lightware TPS technology. Suited for corporate meeting rooms, classrooms, and hospitality installations where distance, signal integrity, and installation time are critical factors.
Product Description

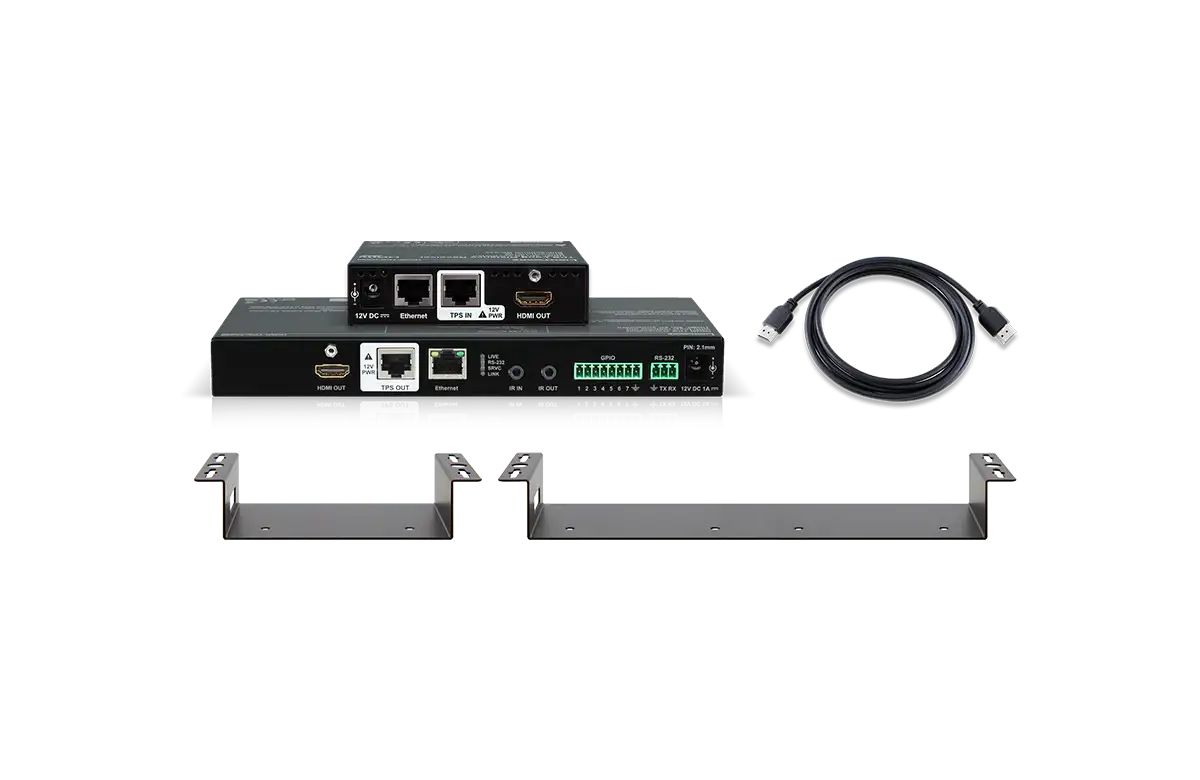

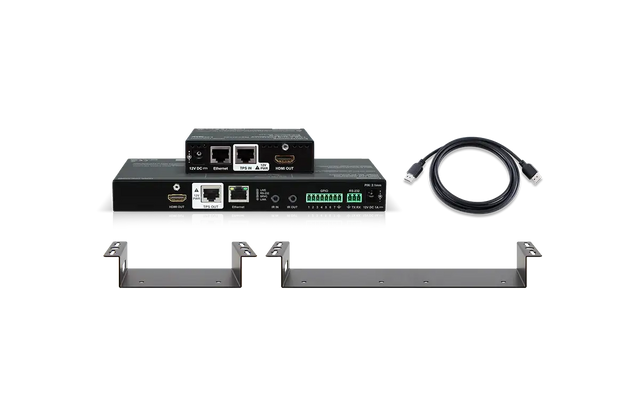

The bundle pairs a Lightware HDMI-TPS-TX226 transmitter with the HDMI-TPS-RX96 receiver, covering both ends of the extension link in a single purchase. The transmitter accepts HDMI input from a source device and converts it for reliable CAT cable transport, while the receiver decodes and outputs a clean HDMI signal to the display. Both units support 4K UHD video, HDCP compliance, and HDR formats, meeting the demands of modern content distribution.
The bundle also includes a UD Kit Double Mounting, a UD Kit Mounting accessory, and a 1m active HDMI cable — everything required to complete an installation out of the box. The mounting kits allow the TX and RX units to be installed under tables, behind displays, or in furniture recesses cleanly and without additional hardware purchases.
With RS-232 and IR pass-through across the same CAT cable, installers can route control signals to displays and source devices without running separate control wiring. Ethernet extension further reduces infrastructure requirements by allowing network-connected devices at the display end to share the existing cabling run.
Key Features
- Complete extension kit — TX226 transmitter and RX96 receiver included; no additional unit purchases required
- 4K UHD support — handles 4K video at 60Hz with full HDCP compliance and HDR format support
- Single CAT cable transport — carries HDMI, Ethernet, RS-232, and IR over one cable run
- Mounting hardware included — UD Kit Double Mounting and UD Kit Mounting for flexible installation locations
- 1m active HDMI cable included — immediate setup without sourcing additional cables
- HDCP compliant — passes protected content from Blu-ray, streaming devices, and corporate sources
- IR and RS-232 pass-through — control displays and sources over the extension link
- Lightware build quality — industrial-grade components rated for permanent installation
Typical Applications
- Corporate conference rooms and boardrooms with ceiling-mounted or wall-mounted displays
- University lecture halls and training rooms requiring HDMI extension from podium to display
- Hospitality suites and hotel meeting rooms with furniture-integrated AV
- Digital signage installations requiring 4K signal delivery over existing CAT infrastructure
- Rental and staging applications requiring a pre-verified, bundle-format extension solution
Technical Specifications
| Parameter | Value |
|---|---|
| Transmitter Model | HDMI-TPS-TX226 |
| Receiver Model | HDMI-TPS-RX96 |
| Signal Transport | Single CAT cable (TPS technology) |
| Video Standard | HDMI 2.0 |
| Max Resolution | 4K UHD @ 60Hz |
| HDCP Compliance | Yes |
| HDR Support | Yes |
| Control Pass-through | RS-232, IR |
| Ethernet Extension | Yes |
| Included Accessories | UD Kit Double Mounting, UD Kit Mounting, 1m Active HDMI Cable |
| Warranty | 3 years (Lightware) |
Competitor Comparison
| Criterion | Lightware HDMI-TPS226-H10 Bundle | Extron DTP2 HD 4K 230 Kit | Crestron HD-EXT3-C2 Kit | Kramer TP-789XL Bundle |
|---|---|---|---|---|
| Max Resolution | 4K UHD 60Hz HDCP | 4K 60Hz HDCP 2.2 | 4K 60Hz HDCP 2.2 | 4K 60Hz HDCP 2.2 |
| Bundle Format | TX + RX + mounts + HDMI cable | TX + RX only | TX + RX only | TX + RX only |
| Mounting Included | Yes — UD Kit Double and Single | No — purchased separately | No — purchased separately | No — purchased separately |
| Control Signals | RS-232 + IR over same cable | RS-232 + IR | RS-232 + IR | RS-232 + IR |
| Ethernet Pass-through | Yes | Yes | Yes | Yes |
| Manufacturer Ecosystem | Lightware — native LW3 control | Extron — GlobalViewer | Crestron — proprietary control | Kramer — K-NET |
| Warranty | 3 years | 3 years | 3 years | 3 years |
Frequently Asked Questions
- What cable type and length is supported for HDMI extension?
- The TPS system is optimized for CAT6 or CAT6A cable. Maximum extension distance depends on cable quality and resolution; refer to the Lightware HDMI-TPS-TX226 datasheet for specific distance tables.
- Does this bundle support HDCP 2.3?
- The HDMI-TPS-TX226 and HDMI-TPS-RX96 support HDCP. Verify the specific HDCP revision against your content source requirements in the Lightware product datasheet.
- Can RS-232 and IR be used simultaneously?
- Yes. Both control paths operate independently over the single CAT cable link, so display and source control can run concurrently.
- Is the bundle compatible with Lightware matrix switchers?
- Yes. The TPS transmitter can connect to Lightware matrix inputs that support TPS ports, allowing integration into larger switching systems.
- What is included in the UD Kit mounting accessories?
- The UD Kit Double Mounting supports two units side-by-side for under-desk or furniture installations. The UD Kit Mounting handles a single unit. Both use standard fastener patterns.
- Does the 1m active HDMI cable support 4K?
- Yes. The included active HDMI cable is rated for the full HDMI 2.0 bandwidth required for 4K UHD signals.
- Where can I purchase the HDMI-TPS226-H10 Bundle?
- The bundle is available directly from Creation Networks, an authorized Lightware distributor.
