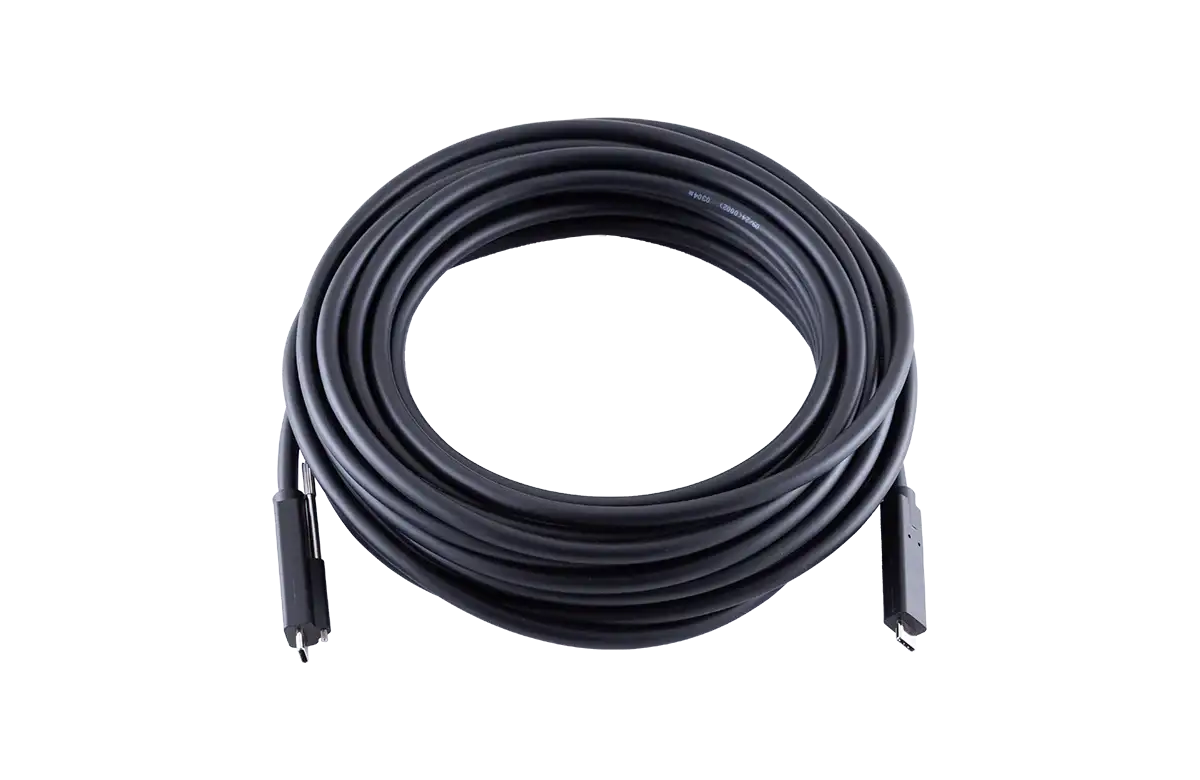

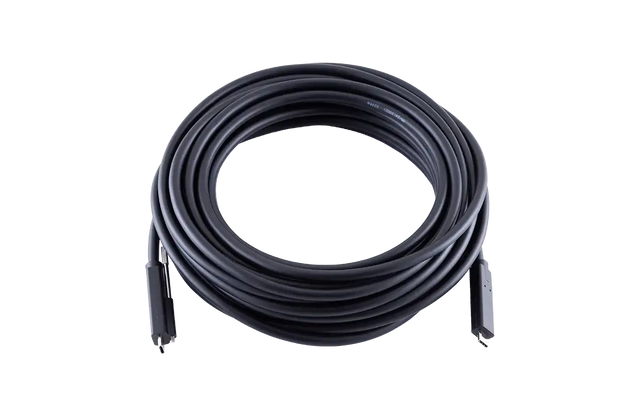

LightWare CAB-USBC-AOC1000E 9.8m (32.15ft) USB-C Active Optical cable for USB3.2 Gen 1x1, 4K Video, 2 lane DP ALT mode, 60W/3A Charging, 1 tier
LightWare CAB-USBC-AOC1000E 9.8m (32.15ft) USB-C Active Optical cable for USB3.2 Gen 1x1, 4K Video, 2 lane DP ALT mode, 60W/3A Charging, 1 tier is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
LightWare CAB-USBC-AOC1000E 9.8m (32.15ft) USB-C Active Optical cab...
Product Overview
The Lightware CAB-USBC-AOC1000E is a 9.8m (32.15 ft) USB-C Active Optical Cable engineered for installations where standard passive copper cables fall short. It delivers USB 3.2 Gen 1x1 data at up to 5 Gbps, 4K video via DisplayPort Alt Mode (2-lane), and 60W/3A USB Power Delivery over a single fiber-optic cable assembly with USB-C connectors at each end. The active optical construction eliminates EMI susceptibility and signal degradation across longer runs, making it a practical choice for display connections, docking stations, and AV source devices in fixed installations.
Product Description
Active Optical Cables (AOCs) use fiber-optic transmission between two active chipsets integrated into the connector housings. This means the cable itself does not require electrical signal integrity over its length — the active electronics handle conversion at each end. The result is a cable that behaves identically to a short passive USB-C cable from the perspective of connected devices, with no special drivers or configuration required. The CAB-USBC-AOC1000E supports 2-lane DisplayPort Alt Mode, enabling 4K resolution at standard refresh rates alongside simultaneous USB data and power delivery. With 60W charging capability, it can power connected laptops and tablets without a separate power adapter in many deployment scenarios.
Key Features
- 9.8m (32.15 ft) active optical USB-C cable
- USB 3.2 Gen 1x1 data transfer up to 5 Gbps
- 4K video via 2-lane DisplayPort Alt Mode
- 60W / 3A USB Power Delivery
- EMI-immune fiber-optic signal path
- No drivers required — plug-and-play operation
- USB-C connectors at both ends
- Suitable for fixed AV and IT installations
Typical Applications
- Connecting a laptop or PC at a conference table to a 4K display or docking station mounted on a wall or credenza
- Single-cable connections in boardrooms combining video, USB data, and charging
- AV over structured cabling replacements where USB-C endpoints are preferred
- University lecture podium connections to projection or display systems
- Digital signage players and kiosk installations requiring longer USB-C runs
- Broadcast and production desk-to-monitor connections beyond passive cable reach
Technical Specifications
| Specification | Detail |
|---|---|
| Model | CAB-USBC-AOC1000E |
| Cable Length | 9.8m (32.15 ft) |
| Cable Type | Active Optical Cable (AOC) |
| Connector Type | USB-C (both ends) |
| USB Standard | USB 3.2 Gen 1x1 (5 Gbps) |
| Video | 4K via 2-lane DisplayPort Alt Mode |
| Power Delivery | 60W / 3A |
| Signal Transmission | Fiber-optic (active electronics in connectors) |
| EMI Immunity | Yes — fiber path is immune to electromagnetic interference |
| Driver Requirement | None — plug-and-play |
| Manufacturer | Lightware |
Competitor Comparison
| Criteria | Lightware CAB-USBC-AOC1000E | Corning USB-C AOC (MXC) | Generic/Unbranded USB-C AOC |
|---|---|---|---|
| Cable Length | 9.8m — suited for standard room deployments | Available in multiple lengths including 10m+ | Typically 5m–10m but quality varies |
| USB Data Speed | USB 3.2 Gen 1x1 (5 Gbps) | USB 3.2 Gen 1 or Gen 2 depending on model | Often USB 3.0/3.1 Gen 1 only, speeds unverified |
| DisplayPort Alt Mode | 4K via 2-lane DP Alt Mode — confirmed and specified | DP Alt Mode on select models | DP Alt Mode claimed but often untested or unreliable |
| Power Delivery | 60W / 3A — sufficient for most laptops | Varies by model, not always specified | Inconsistent — often limited or unrated |
| EMI Immunity | Full fiber path — immune to interference | Full fiber path — immune to interference | Fiber path but active chipset quality unknown |
| AV Integration Support | Lightware ecosystem support and documentation | Enterprise IT focus, limited AV-specific support | No integration support |
| Warranty and Quality Assurance | Lightware commercial warranty and QA | Corning commercial warranty | Minimal or no warranty, inconsistent QA |
Frequently Asked Questions
- Does the CAB-USBC-AOC1000E support 4K 60Hz video?
- The cable supports 4K video via 2-lane DisplayPort Alt Mode. Maximum resolution and refresh rate depend on the source device and display capabilities. 4K at 60Hz is achievable on compatible hardware.
- Will this cable charge my laptop while transmitting video and data?
- Yes. The cable supports 60W / 3A USB Power Delivery simultaneously with video and USB 3.2 data, provided both connected devices support USB-C PD.
- Are there any drivers to install?
- No. The active optical cable operates transparently. Connected devices treat it as a standard USB-C cable.
- Can I use this cable in a conduit or in-wall installation?
- Consult local building codes and fire ratings before any in-wall installation. The cable is designed for fixed AV installations but verify the jacket rating is appropriate for your application.
- Is this cable directional?
- Active optical cables are typically directional. Check the cable connectors for any labeling indicating host/device orientation before installation.
- Where can I order this cable?
- The CAB-USBC-AOC1000E is available at creationnetworks.net. Contact our team for volume pricing or project-specific advice.
