LG 55" 1920 x 1080 2x2 55VSM5J-H w/Peerless mount - 55VSM5JW-4P

Product Overview

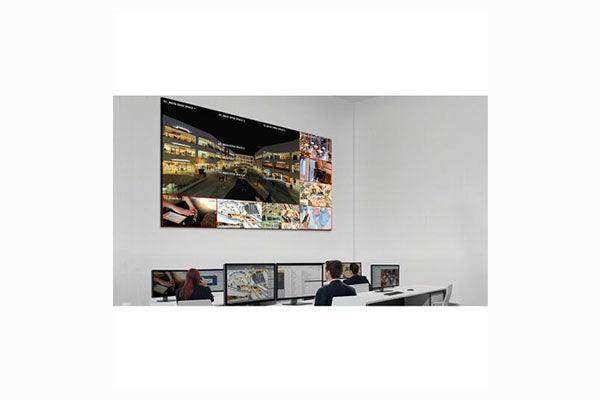

This LG 2x2 video wall bundle pairs four 55VSM5J-H 55-inch Full HD displays with a Peerless mount for a complete tiled solution. Each IPS panel features a Nemko-verified 0.44mm even bezel (0.88mm bezel-to-bezel) for near-continuous imaging, 500 cd/m2 brightness, and a built-in SoC running the LG webOS smart signage platform. Smart Calibration analyzes and matches color across connected displays automatically.

Product Description

The VSM5J series is engineered for tiled video walls, with a razor-thin 0.44mm even bezel and 0.88mm bezel-to-bezel gap verified by Nemko, so assembled content reads as a single image with minimal distortion. LG IPS panel technology provides wide and high viewing angles for uniform color even when the wall is mounted above eye level, and enhanced corner uniformity keeps the four corners of each panel consistent. An image gap reduction algorithm adjusts objects at bezel boundaries during video playback. Smart Calibration analyzes color differences within and between connected displays and corrects them in minutes from a remote, with optional scheduled recalibration and ambient-based brightness. A non-glare panel with 28% haze improves readability under bright lighting. A built-in SoC with webOS runs content without an external media player, supports HTML5 and an SDK for system integrators, and can play four videos simultaneously through web apps with CSS transition effects and real-time streaming. The bundle includes a Peerless mounting system configured for a 2x2 array. Connectivity spans two HDMI, DisplayPort, DVI-D, USB, RS-232C, RJ45, audio, and IR.

Key Features

• Four 55-inch Full HD panels — A complete 2x2 array of IPS displays at 1920 x 1080.
• 0.44mm even bezel — Nemko-verified 0.88mm bezel-to-bezel for near-continuous imaging.
• Smart Calibration — Automatic color matching within and between displays from a remote.
• 500 cd/m2 brightness — Clear viewing in typical indoor lighting.
• Wide IPS viewing angle — Uniform color from nearly any position, including above eye level.
• Non-glare 28% haze panel — Improves readability under bright lighting.
• Built-in SoC with webOS — Runs content without an external media player.
• Flexible content — Up to four simultaneous videos via web apps with CSS effects and streaming.
• Comprehensive connectivity — 2x HDMI, DisplayPort, DVI-D, USB, RS-232C, RJ45, audio, IR.
• Peerless mount included — A complete 2x2 mounting system ships with the bundle.

Typical Applications

• Corporate lobbies and reception — Tiled messaging in high-traffic entrances.
• Conference rooms and boardrooms — Shared presentation across a video wall.
• Retail and showrooms — Promotional content that captures attention.
• Control and operations rooms — Multi-source monitoring on a tiled array.
• Broadcast and event spaces — Tiled backdrops and live content walls.

Technical Specifications

Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

What is included in this bundle?
Four LG 55VSM5J-H 55-inch Full HD displays and a Peerless mounting system for a complete 2x2 video wall.

How thin is the bezel?
A Nemko-verified 0.44mm even bezel with a 0.88mm bezel-to-bezel gap.

Does it need an external media player?
No. A built-in SoC running webOS plays content directly and supports HTML5 and an SDK.

How is color matched across panels?
Smart Calibration analyzes and corrects color within and between connected displays in minutes from a remote.
