LG 49UH7J-H – 49-inch 700-nit UHD Signage Display

Product Overview

The LG 49UH7J-H is a 49-inch 700-nit UHD signage display for high-ambient-light environments such as airports, retail floors, and shopping centers. The high-brightness IPS panel keeps content legible against window glare and overhead lighting, while the embedded webOS 6.0 platform runs a complete commercial signage deployment without an external media player. IP5X dust certification and a conformal-coated power board protect the unit in dust- and humidity-prone locations. USB-C connectivity and Crestron Connected support make it a practical fit for managed AV integration.

Product Description

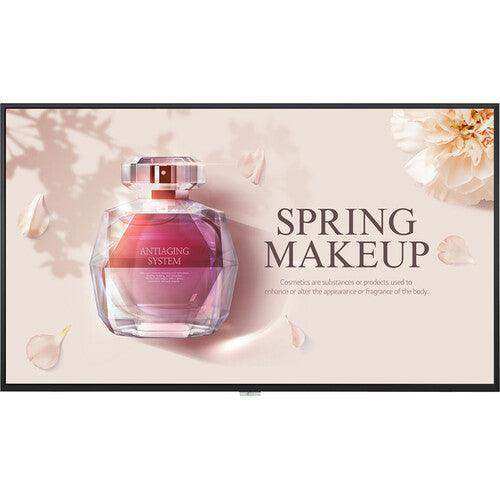

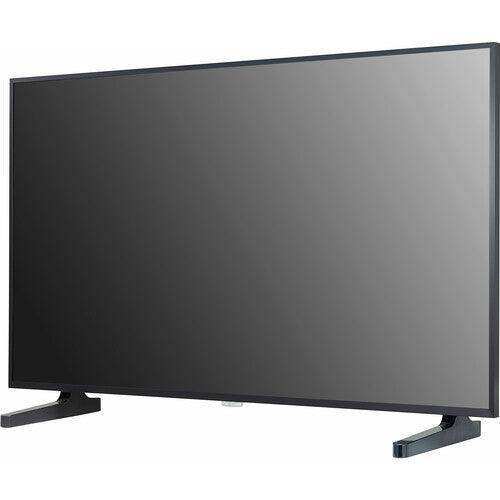

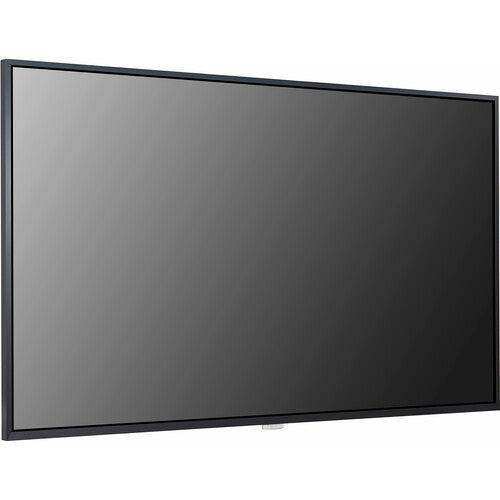

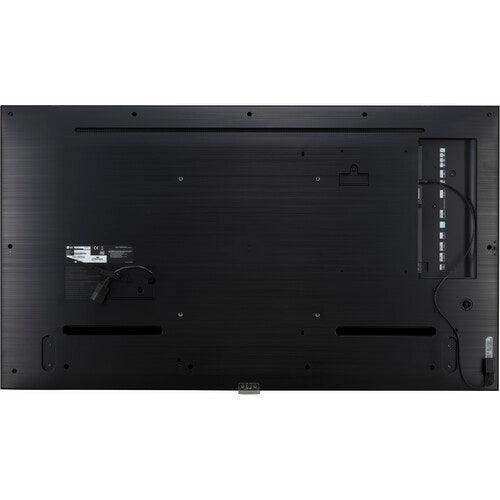

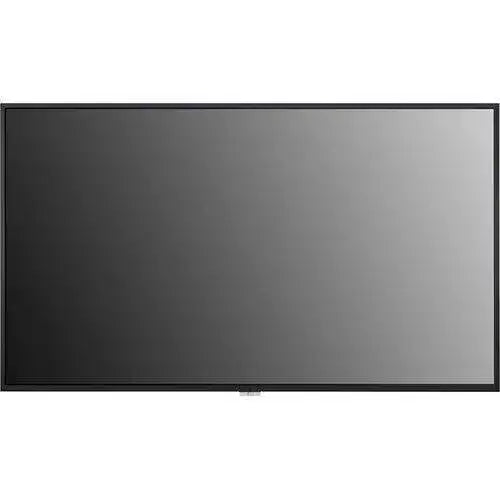

As shown in the product images, the 49UH7J-H is a thin-bezel UHD digital signage display engineered for demanding public spaces. The 3840 x 2160 IPS panel pairs 700-nit brightness with a non-glare coating and 10-bit color across 95% of the BT.709 gamut, delivering detailed, accurate content for marketing and wayfinding. A conformal coating on the power board guards against salt, dust, iron powder, and humidity, and the IP5X rating reduces the risk of performance degradation in exposed installations. Source connectivity is broad for a signage-class panel: two HDMI inputs, two DisplayPort inputs, one DVI input, and a USB-C interface for single-cable connection to laptops and tablets. RS-232C serial control, Ethernet, and Wi-Fi support centralized command in managed environments, and Crestron Connected support integrates the display into professional AV control systems for automated operation. The unit is TAA compliant, Energy Star qualified, and backed by a 3-year limited warranty. For a standard-brightness alternative on the same platform, compare the LG 49UH5N-E.

Key Features

• 700-nit High Brightness — The 700-nit IPS panel holds legibility in airports, retail floors, and other high-ambient-light spaces.
• UHD 4K Resolution — The 3840 x 2160 panel with 10-bit color and 95% BT.709 coverage renders detailed, accurate marketing content.
• webOS 6.0 Platform — The embedded SoC runs signage content and apps directly, removing the need for an external media player.
• IP5X and Conformal Coating — Dust-resistant IP5X certification and a conformal-coated power board protect the unit against dust, salt, iron powder, and humidity.
• USB-C Connectivity — A USB-C interface allows single-cable connection to laptops, video devices, and tablets.
• Broad Source Connectivity — Two HDMI inputs, two DisplayPort inputs, and one DVI input support multi-source signage and presentation setups.
• Crestron Connected and RS-232C — Crestron Connected support with RS-232C serial control enables automated operation from a centralized AV system.
• TAA Compliant and Energy Star — TAA compliance and Energy Star qualification support government procurement and energy-efficiency requirements.

Typical Applications

• Commercial meeting space — High-visibility messaging display for bright corporate common areas.
• Conference room — Source-switching presentation display with RS-232C and network control.
• Training room — High-brightness 4K display for instructional content in well-lit rooms.
• Government space — TAA-compliant wayfinding and public-information signage for lobbies and service centers.
• Multi-purpose room — Flexible signage for rooms with variable lighting and changing functions.

Technical Specifications

Frequently Asked Questions

Is 700 nits bright enough for window-facing placement?
At 700 nits the 49UH7J-H is intended for bright interior environments and shaded storefront positions. For direct sun-facing window installations, a dedicated high-bright window display is the better fit.

Does it require a separate media player?
No. The embedded webOS 6.0 SoC runs signage content and apps directly, so a standard deployment needs no external player or PC.

What does the USB-C port support?
The USB-C interface allows single-cable connection to laptops, video devices, and tablets for source input and content loading.

How does it integrate with an AV control system?
The display provides RS-232C serial control and Crestron Connected support, so power, input, and volume can be managed from a centralized control processor.

Is it suitable for government procurement?
Yes. The unit is TAA compliant and Energy Star qualified, which supports government and energy-efficiency purchasing requirements.

What warranty and support options apply?
It includes a 3-year limited commercial warranty. Contact Creation Networks for current warranty terms and extended coverage options.
