ViewSonic LDS138-151-TAA – 138-Inch TAA Portable LED Solution Kit

Product Overview

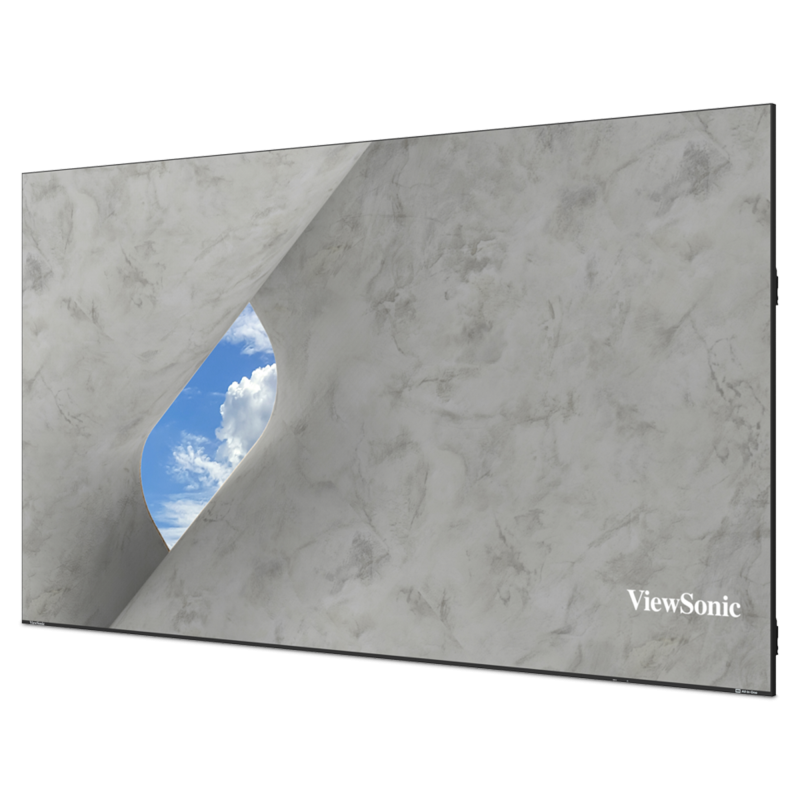

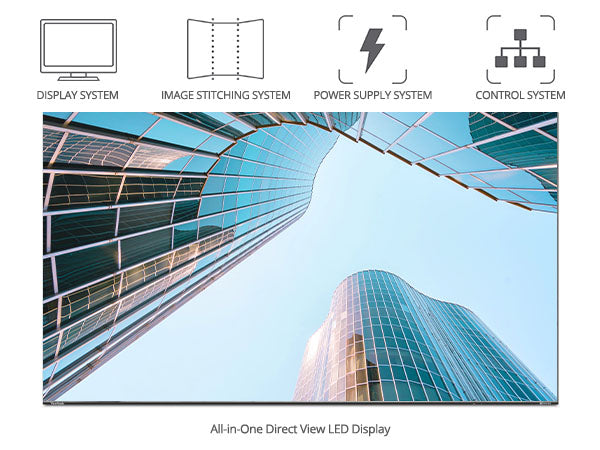

The ViewSonic LDS138-151-TAA is a 138-inch all-in-one direct view LED display solution kit designed for portable and semi-permanent large-format deployments. Delivering Full HD 1920x1080 resolution at a 1.588mm pixel pitch, this dvLED display ships as a complete, preassembled kit with integrated stand hardware, allowing AV integrators and event production teams to deploy a commercial-grade LED video wall without permanent wall mounting. The TAA-compliant designation qualifies it for government and institutional procurement. A built-in Android 9.0 media player, IP54-rated COB-style panel protection, and dual 30W speakers make it a self-contained platform for presentations, digital signage, and live event applications.

Product Description

The LDS138-151-TAA fills a specific niche in commercial AV: a large-format direct view LED display that does not require a permanent wall installation. The solution kit format provides both the display system and the stand hardware in a single part number, making it practical for organizations that need a high-impact screen in multiple rooms or event spaces over time. At 138 inches diagonal with a 1.588mm pixel pitch, the panel produces sharp Full HD imagery at viewing distances starting at approximately 5 feet, appropriate for town halls, all-hands meetings, training rooms, and trade show environments. The 600-nit brightness and 6,500:1 contrast ratio maintain image quality under ambient lighting without requiring window treatments or room dimming. Four HDMI 2.0 inputs with HDCP 2.2 accommodate video conferencing codecs, presentation laptops, and media players, while the built-in RK3399 Android 9.0 player handles standalone digital signage without an external playback device. IP54 ingress protection on the front panel provides resistance to dust and splashes, extending usable service life in event environments that expose equipment to more varied conditions than a fixed boardroom. The 3,840Hz refresh rate eliminates flicker for screen-captured content and professional video recording. RS-232 and dual Ethernet LAN ports allow integration with third-party control systems for permanent installations where room automation is required. TAA compliance makes this kit eligible for federal, state, and local government procurement via GSA schedule vehicles. The 3-year on-site service warranty covers parts, labor, and field service.

Key Features

• 138-Inch Portable Direct View LED Kit — Includes display and stand hardware in one SKU for deployments that do not require permanent wall mounting.
• 1.588mm Pixel Pitch, Full HD 1920x1080 — Delivers sharp imagery at close to moderate viewing distances in boardrooms, training rooms, and event spaces.
• 600 Nits / 6,500:1 Contrast Ratio — Maintains readable, vivid visuals under ambient room lighting without additional light control measures.

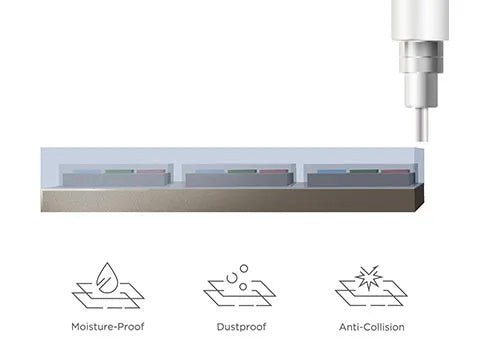

• IP54 Front Panel Protection — Provides resistance to dust ingress and moisture, extending service life in variable environments.
• 3,840Hz Refresh Rate — Eliminates flicker artifacts for video capture, broadcast, and screen-share applications.

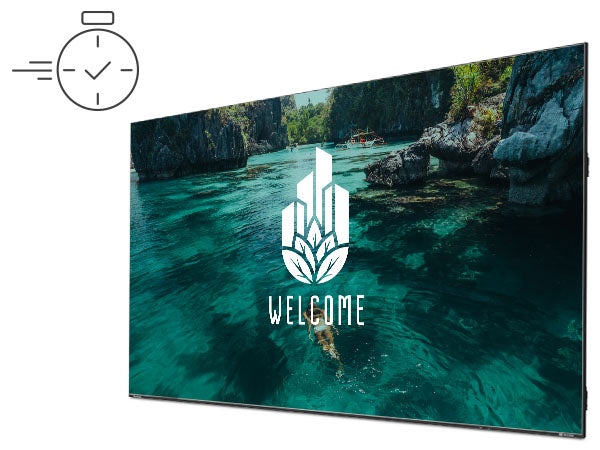

• Built-in Android 9.0 Media Player (RK3399) — Supports standalone digital signage playback without a separate media player or PC.
• 4x HDMI 2.0 Inputs with HDCP 2.2 — Connects multiple video sources including laptops, conferencing codecs, and streaming devices.
• Dual 30W Internal Speakers — Provides integrated audio for presentations and events without requiring a separate sound system.
• TAA Compliant — Eligible for government and institutional procurement via GSA schedules and federal contracts.
• Wi-Fi 2.4GHz / 5GHz — Supports wireless network connectivity for content management and remote administration.
• 100,000-Hour LED Life — Commercial-grade longevity reduces replacement frequency and long-term operating costs.
• 3-Year On-Site Service Warranty — Includes on-site repair service, minimizing downtime in active-use environments.

Typical Applications

• All-hands room
• Training room
• Multi-purpose room
• Conference room
• Auditorium
• Government space
• House of worship
• Lobby / atrium

Technical Specifications

Frequently Asked Questions

• Is this a wall-mounted or freestanding display? The LDS138-151-TAA is a solution kit that includes an integrated stand system, making it freestanding and portable. It does not require permanent wall mounting, though wall installation may be possible with appropriate hardware. The included stand supports height-adjustable positioning.
• Is the LDS138-151-TAA TAA compliant? Yes. The TAA suffix confirms Trade Agreements Act compliance, qualifying this display for GSA schedule procurement and federal government purchase orders.
• What is the minimum recommended viewing distance for this display? The 1.588mm pixel pitch is suitable for viewing distances starting at approximately 5 feet, making it appropriate for training rooms, all-hands spaces, and conference rooms.
• Can the display operate as a standalone digital signage player? Yes. The built-in Android 9.0 player (RK3399, 4GB RAM, 32GB storage, Wi-Fi) supports standalone content playback and digital signage without an external media player or PC.
• What AV control systems are compatible? The RS-232 serial port and dual Ethernet LAN ports support integration with Crestron, AMX, Extron, and other third-party control systems. ViewSonic provides RS-232 command documentation for system programmers.
• What is the power requirement? The LDS138-151-TAA requires a 100–120V / 20A circuit. Maximum draw is 1,745W; typical operating consumption is 581W.
• Does the display support HDCP-encrypted content? Yes. All four HDMI 2.0 inputs support HDCP 2.2, enabling playback from protected sources including streaming devices, Blu-ray players, and HDCP-encrypted video conferencing systems.
• What warranty coverage is included? ViewSonic provides a 3-year limited warranty covering parts and labor with on-site service.
