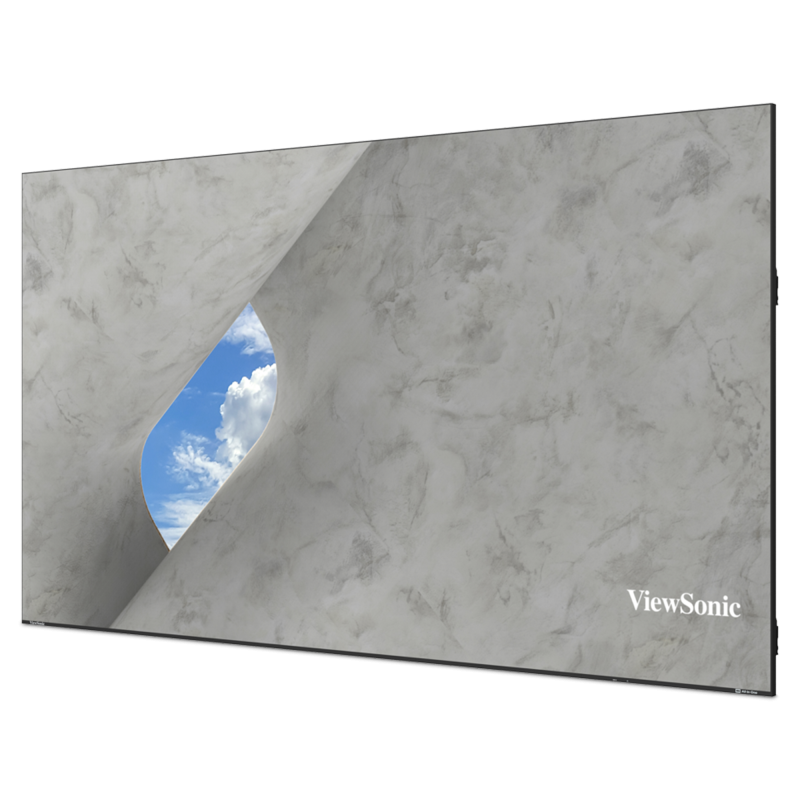

ViewSonic LDM163-182-TAA – 163-Inch TAA Modular Direct View LED

Product Overview

The ViewSonic LDM163-182-TAA is a 163-inch all-in-one direct view LED display delivering Full HD 1920x1080 resolution at a 1.875mm pixel pitch, designed for large-format commercial AV installations in auditoriums, corporate lobbies, government spaces, and command centers. As a TAA-compliant dvLED display, it qualifies for GSA schedule procurement and federal contracts. The all-in-one form factor consolidates display panels, image processing, power distribution, and wall-mount hardware into a single part number, giving AV integrators a streamlined specification and installation path. With 600-nit brightness, 24/7 operation certification, and a built-in Android 9.0 media player, the LDM163-182-TAA is engineered for continuous commercial deployment.

Product Description

At 163 inches diagonal, the LDM163-182-TAA occupies the mid-tier of ViewSonic's large-format direct view LED lineup — larger than a standard conference room display but smaller than stadium-scale installations, making it appropriate for auditoriums, large multi-purpose rooms, and high-traffic lobby areas where visual impact is a priority. The 1.875mm pixel pitch produces clear Full HD imagery at viewing distances starting around 6 feet, covering typical seat-to-screen distances in medium-to-large meeting spaces and lecture halls. A 600-nit brightness level ensures the display remains readable under overhead fluorescent or LED ambient lighting, which is a practical requirement for government briefing rooms and corporate training centers that operate without blackout window treatments. The 6,500:1 static contrast ratio delivers sharp distinction between bright and dark content areas, preserving text legibility and video clarity across presentation formats. Four HDMI 2.0 inputs with HDCP 2.2 and an HDMI output support integration into larger AV systems and distribution networks, while three Ethernet LAN ports, RS-232, and USB connections provide flexible connectivity for control systems and media management. The onboard RK3399 processor running Android 9.0 enables standalone content playback for digital signage applications without an external media player. Wi-Fi 2.4GHz/5GHz connectivity supports wireless content management and network administration. Dual 30W internal speakers provide in-room audio coverage for spaces without a separate distributed audio system. The display is rated for 24/7 continuous operation with a 100,000-hour LED backlight life, meeting the uptime requirements of command centers, public-facing installations, and government facilities. Wall mount hardware ships with the unit, reducing the sourcing burden on the installation team.

Key Features

• 163-Inch Direct View LED Panel — Large-format bezel-free display suitable for auditoriums, government briefing rooms, and corporate lobby installations.
• 1.875mm Pixel Pitch, Full HD 1920x1080 — Produces clear imagery at medium-to-large room viewing distances.
• 600 Nits Brightness (100 Adjustable Levels) — Readable under ambient room lighting without blackout window treatment requirements.
• 6,500:1 Static Contrast Ratio — Maintains text and image clarity across diverse content types and lighting conditions.
• 3,840Hz Refresh Rate — Eliminates flicker artifacts for video capture, broadcast, and live-feed applications.
• 24/7 Operation Certified — Designed for continuous commercial use in command centers, public lobbies, and mission-critical spaces.

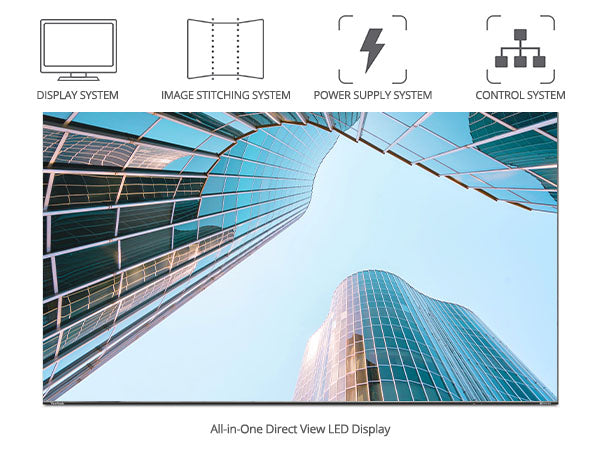

• All-in-One Integration — Display, image processor, power distribution, and wall mount hardware included in a single SKU.
• Built-in Android 9.0 Media Player (RK3399) — Supports standalone digital signage playback without an external media player.
• 4x HDMI 2.0 Inputs with HDCP 2.2 — Connects multiple video sources including conferencing systems, laptops, and media servers.
• Dual 30W Internal Speakers — Provides integrated audio for rooms without a separate sound system.
• TAA Compliant — Eligible for government and institutional procurement via GSA schedules and federal contracts.
• Wi-Fi 2.4GHz / 5GHz — Wireless network connectivity for content management and remote administration.

Typical Applications

• Auditorium
• Command center
• Government space
• Lobby / atrium
• All-hands room
• Multi-purpose room
• Training room
• House of worship

Technical Specifications

Frequently Asked Questions

• Is the LDM163-182-TAA eligible for government procurement? Yes. The TAA suffix indicates Trade Agreements Act compliance, making this display eligible for GSA schedule purchases and federal, state, and local government contracts.
• What is the minimum recommended viewing distance for a 1.875mm pixel pitch display? The 1.875mm pixel pitch is appropriate for viewing distances starting at approximately 6 feet, making it well suited for medium to large meeting rooms, auditoriums, and briefing rooms where the audience is seated several rows back from the display.
• Does this display require an external media player for digital signage? No. The built-in Android 9.0 player (RK3399, 4GB RAM, 32GB storage, Wi-Fi) supports standalone digital signage content playback without additional hardware.
• What is the power circuit requirement for installation? The LDM163-182-TAA requires a 100–120V / 30A dedicated circuit. Maximum power draw is 2,642W; typical operating consumption is 919W. Coordinate with a licensed electrician before installation.
• What control system interfaces does this display support? RS-232 serial and three Ethernet LAN (RJ45) ports support integration with Crestron, AMX, Extron, and other third-party control systems. ViewSonic provides RS-232 command code documentation for system programmers.
• Is wall mount hardware included? Yes. A wall mount bracket, LAN cable, IR extender, power cord, and remote control ship with the display.
• Can this display run 24 hours per day, 7 days per week? Yes. The LDM163-182-TAA carries a 24/7 operation rating and a 100,000-hour LED backlight life, meeting the uptime requirements of command centers, public lobbies, and government facilities.
• What warranty is included? ViewSonic covers the LDM163-182-TAA with a 3-year limited warranty on parts and labor.
