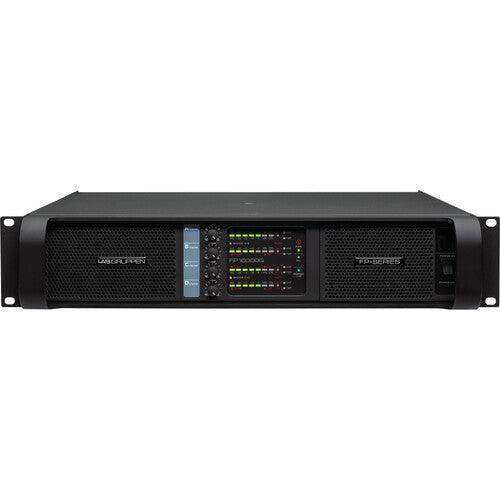

Lab Gruppen FP 10000Q SP 10,000W 4-Channel Amplifier with NomadLink Networking (speakON) - FP10000Q/SP

Product Overview

The Lab Gruppen FP 10000Q SP is a 10,000W four-channel professional power amplifier built on Lab Gruppen's patented Class-TD output stage, with NomadLink network monitoring and Neutrik speakON NL4 speaker outputs. Delivering 4 x 2,500W at 2 ohms, it is the quad-channel FP series amplifier suited for touring systems requiring four independent channels of high-output amplification in a 2 RU chassis. The speakON connectors provide secure twist-lock connections standard in professional live sound touring, and NomadLink Ethernet ports enable remote monitoring of amplifier status across a system network.

Product Description

The Lab Gruppen FP 10000Q SP brings the FP series' proven Class-TD amplifier topology to a four-channel format, offering 10,000W of total output across four independent channels. With 2,500W per channel at 2 ohms, it provides substantial drive capability for a variety of touring speaker loads — including mid-range arrays, high-frequency drivers, or multiple speaker cabinets per channel. The four-channel format is particularly useful for systems where a single amplifier must power a full top speaker system per side, or drive a multi-way speaker cabinet with a biamplified or triamplified configuration using the amplifier's four channels. The Class-TD output stage maintains the sonic characteristics Lab Gruppen is known for, combining transparency and low distortion with the power efficiency needed for sustained touring operation. Each channel accepts a balanced XLR input, and four speakON NL4 outputs are provided for individual per-channel speaker connections. The Voltage Peak Limiter (VPL) is adjustable per channel, enabling the output to be optimized for the specific load connected to each channel, from subwoofers to high-frequency compression drivers. NomadLink Ethernet connectivity via two etherCON RJ45 ports allows remote monitoring of amplifier status and fault conditions. The FP 10000Q SP also supports bridged mono operation on paired channels, increasing output for high-demand single-load applications. Comprehensive circuit protection including DC, short-circuit, thermal, and overload safeguards covers all four channels. The 2 RU chassis ships with a power cord and rear rack support brackets.

Key Features

• 10,000W Total Output Power — Four independent channels at 2,500W each (2 ohms) for high-output touring applications.
• Class-TD Amplifier Topology — Lab Gruppen's patented design combining Class-B sonic transparency with Class-D thermal efficiency across all four channels.

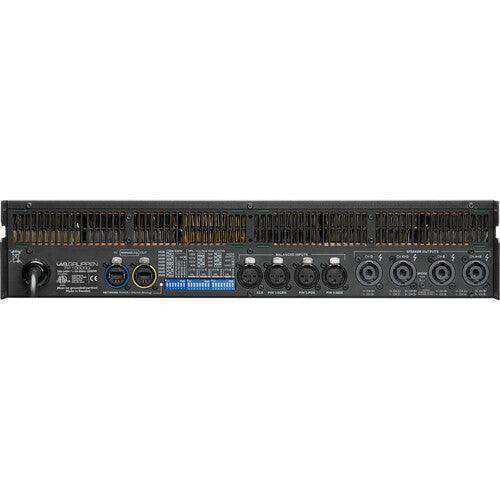

• speakON NL4 Outputs — Four Neutrik speakON NL4 twist-lock speaker outputs, one per channel, for secure touring connections.
• NomadLink Network Monitoring — Two etherCON RJ45 ports for remote monitoring and control over Ethernet.
• Bridged Mono Operation — Channel pairs can be bridged for higher output into a single load.
• Voltage Peak Limiter (VPL) — Per-channel adjustable limiter optimized for any speaker load type.
• Selectable Input Gain — Per-channel gain control for system level alignment.
• Comprehensive Circuit Protection — DC, short-circuit, thermal, and overload protection on all four channels.
• 2 RU Rack-Mount Chassis — Ships with power cord and rear rack support brackets.

Typical Applications

• Auditorium
• House of worship
• Multi-purpose room
• Broadcast studio

Technical Specifications

Frequently Asked Questions

Q: What is the practical advantage of the FP 10000Q SP's four-channel format over a two-channel amplifier?

A: A four-channel amplifier allows a single rack unit to power four independent speaker loads — for example, one side of a biamplified main speaker system per channel, or four separate monitor wedges from a single unit. This reduces rack space and total amplifier count compared to using two two-channel units for the same application.

Q: Does the FP 10000Q SP include onboard DSP?

A: No. The FP 10000Q SP does not include onboard DSP. Loudspeaker management including crossovers, EQ, delay, and limiting must be handled by an external DSP processor connected upstream. NomadLink provides remote monitoring of the amplifier's operational status, not audio processing.

Q: Can channels be bridged on the FP 10000Q SP?

A: Yes. Adjacent channel pairs can be bridged for mono operation, delivering up to 5,000W into 4 ohms or 4,200W into 8 ohms per bridged pair, suitable for high-power subwoofer or full-range speaker applications requiring more output than a single channel provides.

Q: What does NomadLink provide on this amplifier?

A: NomadLink is Lab Gruppen's proprietary Ethernet-based monitoring protocol. It allows system operators to monitor amplifier status, channel operation, and fault conditions from a connected PC. It does not carry audio and is not a Dante or AES audio network.

Q: How does the FP 10000Q SP compare to the PLM 8K44 SP in a touring system?

A: The PLM 8K44 SP includes integrated Lake DSP and Dante/AES67 audio networking, making it a self-contained amplifier and processor. The FP 10000Q SP has no onboard DSP and uses NomadLink monitoring only, requiring an external processor for speaker management. The FP 10000Q SP is appropriate when an existing external DSP infrastructure is in place and a high-output four-channel amplifier is needed to complement it.

Q: How much rack space is required?

A: The FP 10000Q SP occupies 2 rack units (2 RU) in a standard 19-inch equipment rack. Rear rack support brackets are included.

Q: What is included in the box?

A: The FP 10000Q SP ships with a power cord and rear rack support brackets.
