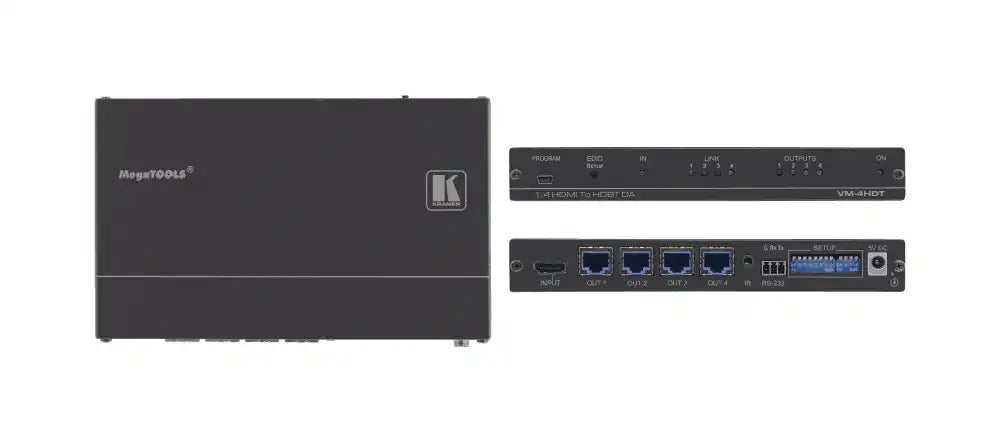

Kramer VM-4HDT 1:4 4K60 4:2:0 HDMI to Long–Reach HDBaseT Distribution Amplifier

Product Overview

The Kramer VM-4HDT is a 1:4 4K60 4:2:0 HDMI to Long-Reach HDBaseT distribution amplifier that distributes a single HDMI input to four Long-Reach HDBaseT outputs simultaneously, designed for conference rooms, corporate campuses, and commercial AV systems where one HDMI source needs to reach four remote displays over Cat cabling. Each HDBaseT output carries HDMI video, embedded audio, and control signals over a single Cat cable run to a compatible Kramer HDBaseT receiver.

Product Description

The VM-4HDT bridges the gap between a single HDMI source and four displays located at distances that exceed standard HDMI cable limits. By converting the HDMI signal to Long-Reach HDBaseT for each output, the VM-4HDT enables display placement at distances up to 70m or more from the distribution amplifier, using Cat 5e/6 infrastructure already present in most commercial buildings. This is practical for corporate facilities where a video conferencing codec, digital signage player, or presentation PC needs to feed displays in four separate locations — offices, lobbies, or meeting rooms — from a single rack-mounted distribution point. PoC (Power over Cable) support on the outputs can power compatible Kramer HDBaseT receivers without separate power supplies at each display location.

Key Features

• 1:4 HDMI to Long-Reach HDBaseT — Distributes one 4K60 4:2:0 HDMI source to four remote HDBaseT display locations.
• Long-Reach HDBaseT Outputs — Extends signals up to 70m+ per output over Cat 5e/6 cabling.
• PoC on Outputs — Powers compatible Kramer HDBaseT receivers from the DA, reducing remote installation requirements.
• 4K60 4:2:0 Signal Support — Full 4K UHD at 60Hz for current commercial display compatibility.

Typical Applications

• Corporate campus 4-destination HDMI over Cat distribution
• Conference room multi-zone display distribution
• Digital signage 4-screen HDBaseT deployment
• Training facility multi-room display systems

Technical Specifications

Frequently Asked Questions

What HDBaseT receivers are compatible?

Compatible Kramer Long-Reach HDBaseT receivers include the TP-789R, TP-580R, and similar models. Confirm PoC compatibility before finalizing receiver selection.

Can each output go to a different display location?

Yes. Each of the four HDBaseT outputs can independently run to a different display location, with each connected to its own compatible receiver.

What warranty applies?

Kramer provides a 3-year limited warranty. Contact Creation Networks for support.
