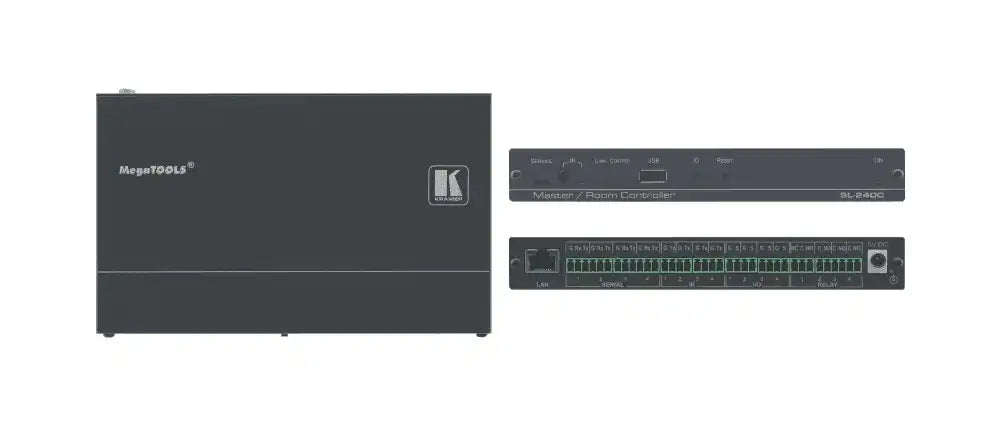

Kramer SL-240C Compact 16–Port Master / Room Controller with PoE

Product Overview

The Kramer SL-240C is a compact 16-port PoE master room controller — the Kramer Control brain in MegaTOOLS form factor — providing 4 bidirectional RS-232, 4 IR outputs, 4 GPI/O, and 4 relay ports in a single-cable PoE-powered device suited for conference rooms, huddle rooms, and smaller commercial spaces. AV integrators and IT managers deploy the SL-240C where the full 32-port SL-280 is over-specified — typically in single-room installations requiring display control, source switching, screen motor control, and basic lighting or shading automation from one compact controller. Power over Ethernet eliminates the need for a local power supply at the installation point, and the MegaTOOLS form factor allows two SL-240C units to be rack-mounted side-by-side in a 1U space using the optional RK-T2B adapter. All configuration is handled through Kramer Control's no-code browser interface.

Product Description

The SL-240C runs the same Kramer Control brain software as the larger SL-280, with the same logical flexibility for room automation — the difference being 16 I/O ports versus 32. Four RS-232 ports on 3-pin terminal blocks support bidirectional serial control of displays, projectors, and audio amplifiers. Four IR emitter outputs and a built-in IR receiver for command learning handle IR-controlled devices. Four GPI/O ports, programmable per port as digital input, digital output, or analog input, support occupancy sensors, door contacts, and lighting control interfaces. Four relay outputs on 2-pin terminal blocks handle contact closure for motorized projection screens and shading. Power over Ethernet via the RJ-45 connector delivers both data and power from the network switch, with an optional external 5V DC power supply available for additional resiliency. A mini USB port is available for firmware upgrades. LED indicators on all ports provide commissioning and diagnostic status at a glance.

Key Features

• PoE-Powered Operation — Single RJ-45 Ethernet cable provides both network connectivity and power (5V DC, 2A via PoE), eliminating local power supply requirements.
• 4 Bidirectional RS-232 Ports — 3-pin terminal block connections for two-way serial control of AV devices.
• 4 IR Emitter Outputs + IR Receiver — Controls IR devices; built-in IR receiver learns commands from remotes.
• 4 GPI/O Ports — Configurable per port for sensors, occupancy, lighting control, and building automation.
• 4 Relay Ports — Contact closure for projection screens, motorized shading, and blinds.
• MegaTOOLS Form Factor — Two units mount side-by-side in a 1U rack space with optional RK-T2B rack adapter.
• 1GHz Processor, 512MB RAM, 4GB Flash — Handles full Kramer Control room logic reliably.
• Kramer Control Compatible — Browser-based no-code room programming via Kramer Control cloud or on-premises platform.
• Expandable via Ethernet Gateways — Add I/O ports by connecting additional Kramer Ethernet control gateways.

Typical Applications

• Conference room and huddle room AV control
• Small boardroom and commercial meeting space automation
• University classroom AV control systems
• Government and municipal single-room AV control
• Training room display and source management
