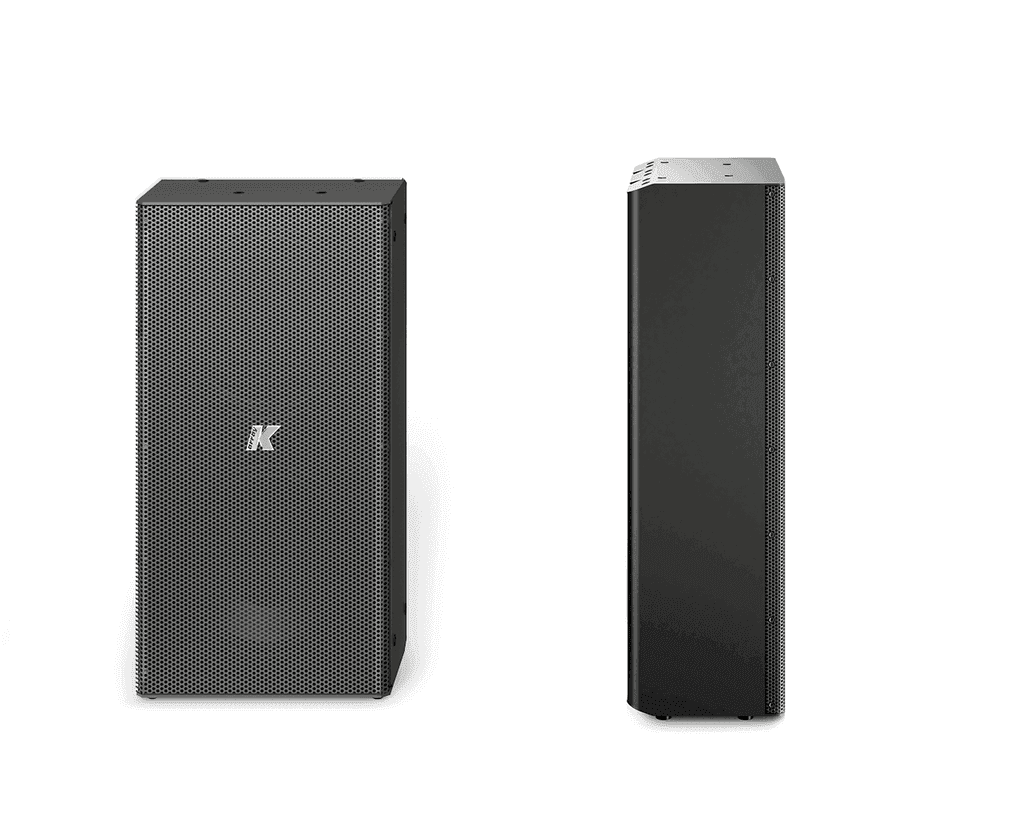

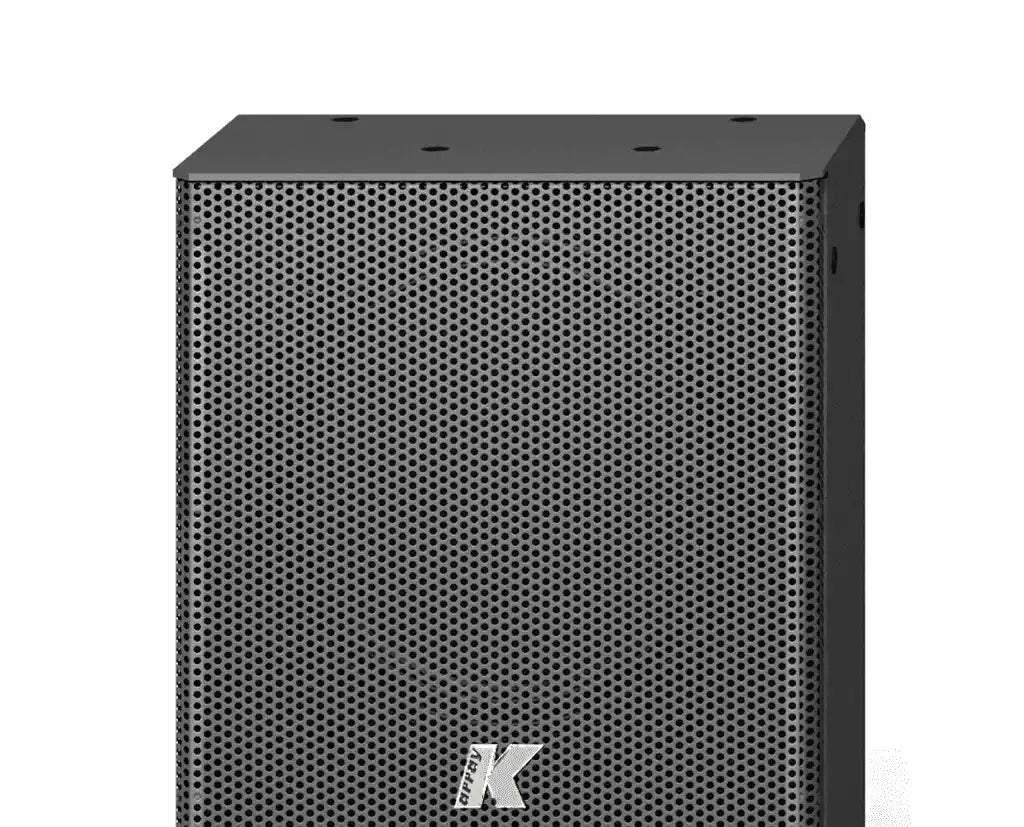

K-Array Domino KF26 – 6" Passive Stainless Steel Full-Range Speaker (Black)

Product Overview

The K-Array Domino KF26 is a compact passive stainless steel full-range speaker built for commercial AV installations where the loudspeaker must disappear into the architecture. Less than 12 cm deep, this 6-inch point source loudspeaker delivers 115 dB peak SPL and 50 Hz to 19 kHz response, making it a strong fit for conference rooms, boardrooms, and houses of worship that need clear speech and music from a low-profile wall-mount speaker. Selectable 8-ohm or 32-ohm impedance lets integrators run it as a conventional load or daisy-chain multiple units on long distributed audio lines. The 6-inch passive radiator extends bass response far enough that many rooms with subwoofer restrictions need no separate low-frequency cabinet.

Product Description

The KF26 is the smallest model in K-array's Domino full-range line, sitting below the KF210 and the KF212. A 6-inch neodymium woofer and a coaxially mounted 2-inch neodymium high-frequency driver share an internal passive crossover at 1,600 Hz, producing a coherent point source with consistent 90-degree by 90-degree coverage. Because the crossover is internal and no dedicated DSP preset is required, the KF26 is genuinely plug-and-play: it can be driven by any professional amplifier, which simplifies commercial AV system integration and retrofit projects. The stainless steel enclosure carries an IP56 rating, and the K-KUIP accessory adds further water protection for semi-outdoor zones.

Installation flexibility is a core strength. Wall brackets are included, the K-WF26 recessing frame flush-mounts the speaker into a wall, and the K-PMOUNT adapter handles pole mounting. Inserting K-array's KA1-FF amplifier module converts the passive KF26 into a self-powered speaker without changing the enclosure, a useful option when amplifier rack space is limited. For larger rooms in the same project, the Domino KF212 and mid-sized KF210 provide zone-matched coverage with the same industrial design. This listing is the black finish; the white KF26W and the full K-Array collection of amplifiers and accessories are also available at Creation Networks.

Key Features

• Coaxial 6" and 2" Neodymium Drivers — The coaxially mounted woofer and high-frequency driver act as a single point source, delivering even 90° x 90° coverage across the listening area.
• 6" Passive Radiator Bass Extension — The passive radiator extends low-frequency response to 50 Hz, making the KF26 a practical choice for rooms where a subwoofer cannot be installed.
• Selectable 8/32-Ohm Impedance — A rear-panel impedance selection lets integrators run conventional 8-ohm loads or chain multiple speakers at 32 ohms on long distributed lines.
• No DSP Preset Required — The internal passive crossover at 1,600 Hz means the KF26 can be driven by any professional amplifier without dedicated processing.
• Slim Sub-12 cm Enclosure Depth — At only 11.8 cm deep, the stainless steel cabinet mounts tight to walls and stays visually discreet in architecturally sensitive spaces.
• Convertible to Self-Powered Operation — Inserting the optional KA1-FF amplifier accessory transforms the passive KF26 into a self-powered speaker without changing the enclosure.
• IP56-Rated Stainless Steel Build — The weather-resistant chassis suits humid or covered outdoor zones, with the K-KUIP accessory available for more complete water protection.
• Wall Brackets Included — Factory wall-mount hardware ships in the box, and the K-WF26 flush-mount frame and K-PMOUNT pole adapter expand installation options.
• Euroblock Connectivity — The included 4-pin euroblock (phoenix) connector provides a secure, low-profile termination standard in fixed commercial AV installations.

Typical Applications

• Conference room and boardroom speech reinforcement
• Huddle room and commercial meeting space audio
• House of worship fill and distributed coverage
• Government space paging and program audio
• Multi-purpose room and training room sound systems
• Broadcast studio playback zones

Technical Specifications

Frequently Asked Questions

What amplifier does the Domino KF26 require?

The KF26 is a passive speaker with an internal crossover and no required DSP preset, so it can be driven by any professional amplifier rated for its 160 W power handling. K-array recommends its KA14, KA24, and KA84 platforms, and the KA1-FF accessory converts the speaker to self-powered operation.

When should I use the 32-ohm impedance setting?

Select 32 ohms when running multiple KF26 units in parallel on a single amplifier channel, such as long distributed audio lines in corridors, lobbies, or large meeting spaces. The 8-ohm setting suits conventional one-speaker-per-channel designs.

Does the KF26 need a subwoofer?

For speech and background or foreground music, usually not. The 6-inch passive radiator extends response to 50 Hz. For music-forward rooms, K-array subwoofers can be added to the system design.

Is mounting hardware included?

Yes, wall-mount brackets ship in the box. The K-WF26 flush-mount recessing frame and K-PMOUNT pole-mount adapter are available separately for recessed or pole installations.

Can the KF26 be installed in semi-outdoor spaces?

Yes. The stainless steel enclosure carries an IP56 rating, suitable for covered patios and humid environments. The K-KUIP accessory provides more complete water protection, and a dedicated marine-treated variant exists for salt-air installations.

What warranty applies to this product?

K-array provides a 5-year manufacturer warranty on its loudspeaker products. Contact Creation Networks for system design assistance, AV integration questions, or warranty service coordination.
