K-Array Domino KF212W – 12" Passive Stainless Steel Full-Range Speaker (White)

Product Overview

The K-Array Domino KF212W is the white-finish 12-inch passive stainless steel full-range speaker built for commercial AV installations where high output must come from a shallow, design-friendly enclosure. Only 20 cm deep, this 8-ohm point source loudspeaker produces 130 dB peak SPL with 40 Hz to 19 kHz response, suiting auditoriums, houses of worship, and multi-purpose rooms finished in light interior palettes. Its coaxial 12" woofer, 1.7" compression driver, and 12" passive radiator give the KF212W extended low-frequency reach that often removes the need for a separate subwoofer. Wall-mount brackets are included in the box.

Product Description

The KF212W is the largest model in K-array's Domino full-range line, delivered in a factory white finish that integrates with white walls, ceilings, and architectural features. The coaxial arrangement places the titanium-dome 1.7" compression driver at the acoustic center of the 12" woofer, yielding a uniform 90-degree horizontal by 60-degree vertical coverage pattern that holds together across the seating area. The 12" passive radiator extends bass to 40 Hz from a cabinet just 200 mm deep, so the speaker sits close to the wall in rooms where deeper cabinets would compromise sightlines or interior design. The stainless steel chassis is IP43 rated, and the Domino platform is also offered in black, custom RAL, and premium 24K gold, polished, and brushed finishes.

As a passive 8-ohm loudspeaker rated at 700 W, the KF212W works with standard professional installation amplifiers, and K-array specifies dedicated presets on its own amplifier platforms to reach published performance. Audio terminates on an included 4-pin euroblock connector, the standard for fixed commercial AV wiring. Integrators can combine the KF212W with the smaller Domino KF26 and KF210 models for zone-matched coverage throughout a facility. This listing is the white finish; the black version (KF212) is also available, and the full K-Array collection includes matching amplifiers and mounting accessories.

Key Features

• White Architectural Finish — The factory white stainless steel enclosure blends with light interiors, keeping the audio system visually unobtrusive in design-sensitive rooms.
• Coaxial 12" Driver with Compression Tweeter — A 12" woofer with coaxially mounted 1.7" titanium-dome compression driver behaves as a true point source with consistent coverage.
• 12" Passive Radiator Bass Extension — The passive radiator extends response down to 40 Hz, often eliminating a separate subwoofer in speech-and-music installations.

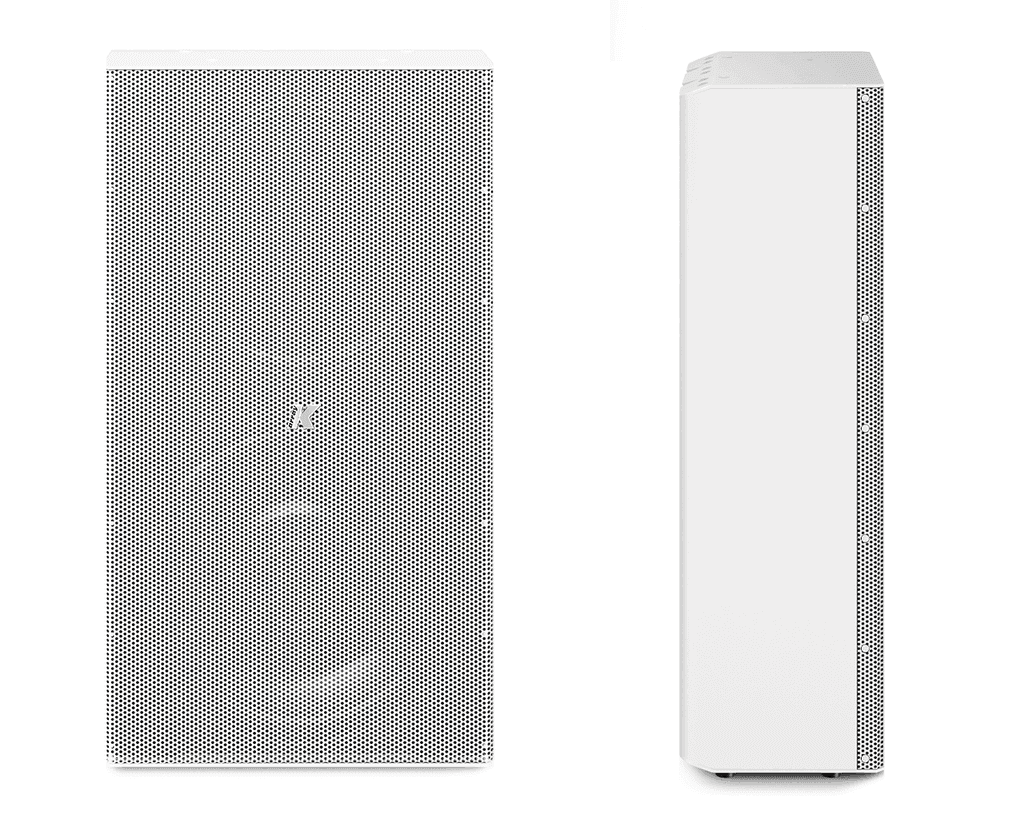

• Slim 20 cm Enclosure Depth — The shallow cabinet mounts close to walls, preserving floor space and sightlines.
• 130 dB Peak SPL Output — With 700 W power handling and 100 dB sensitivity, the KF212W provides output headroom for large commercial spaces.
• Standard 8-Ohm Passive Design — The nominal 8-ohm load integrates with professional installation amplifiers, with K-array presets available for manufacturer-specified voicing.
• Wall Brackets Included — Factory wall-mount brackets ship with the speaker, reducing installation cost and specification work.
• IP43-Rated Stainless Steel Build — The weather-resistant chassis suits humid or semi-protected environments, with additional protection available via the K-KUIP12 accessory.

Typical Applications

• Auditorium main and fill coverage
• House of worship music and speech reinforcement
• Multi-purpose room and all-hands room sound systems
• Government space audio reinforcement
• Commercial meeting space program audio
• Broadcast studio playback and monitoring zones

Technical Specifications

Frequently Asked Questions

What amplifier does the KF212W require?

The KF212W is a passive 8-ohm loudspeaker rated at 700 W. K-array specifies dedicated presets loaded on its own amplifier platforms to achieve published frequency response, though the standard 8-ohm load is compatible with professional installation amplifiers with appropriate DSP.

Is mounting hardware included?

Yes, wall-mount brackets are included in the box. Pole-mount adapters and other accessories are available separately from the K-array accessory line, including white versions to match the finish.

Does the KF212W need a subwoofer?

In many speech and foreground music designs, no. The 12" passive radiator extends response to 40 Hz. For high-output dance or live music programs, K-array subwoofers can be added with matched presets.

Can the KF212W be used in semi-outdoor spaces?

The stainless steel enclosure carries an IP43 rating, suitable for covered or semi-protected environments. K-array offers the K-KUIP12 accessory for more complete water protection.

How does the KF212W connect to the audio system?

Audio connects via a 4-pin euroblock connector, which is included. This termination is standard in fixed commercial AV installations and supports the loop-through wiring used in distributed systems.

What warranty applies to this product?

K-array provides a 5-year manufacturer warranty on its loudspeaker products. Contact Creation Networks for system design assistance, integration questions, or warranty service coordination.
