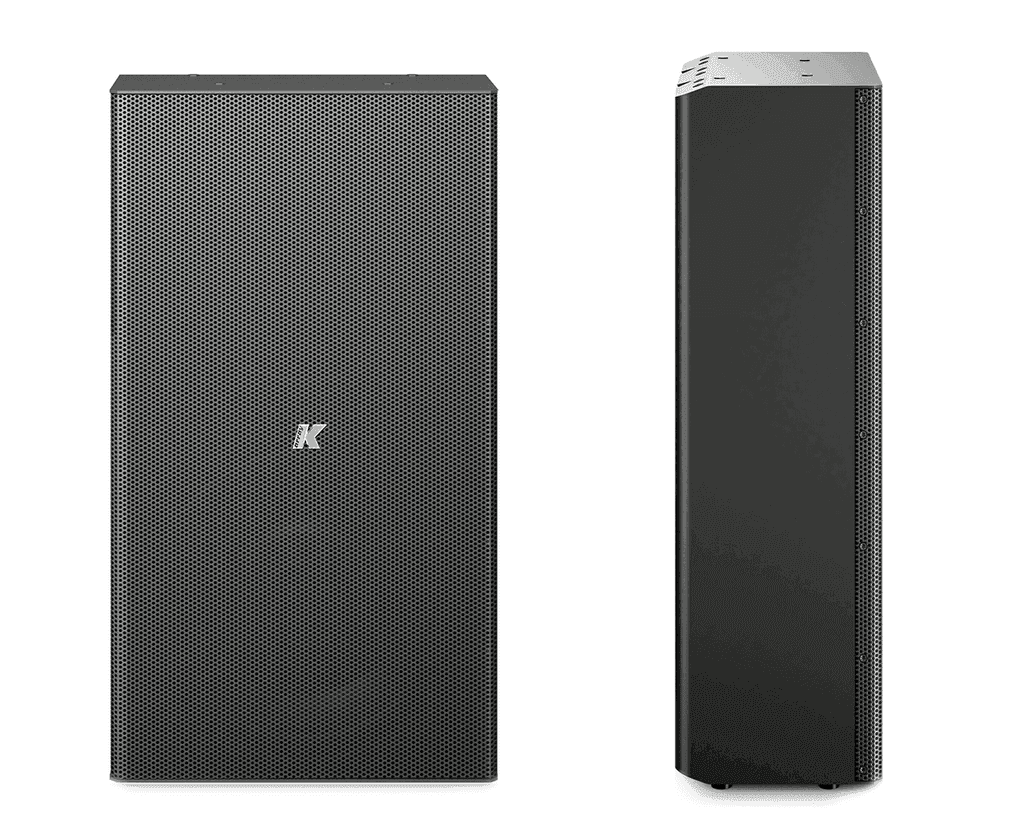

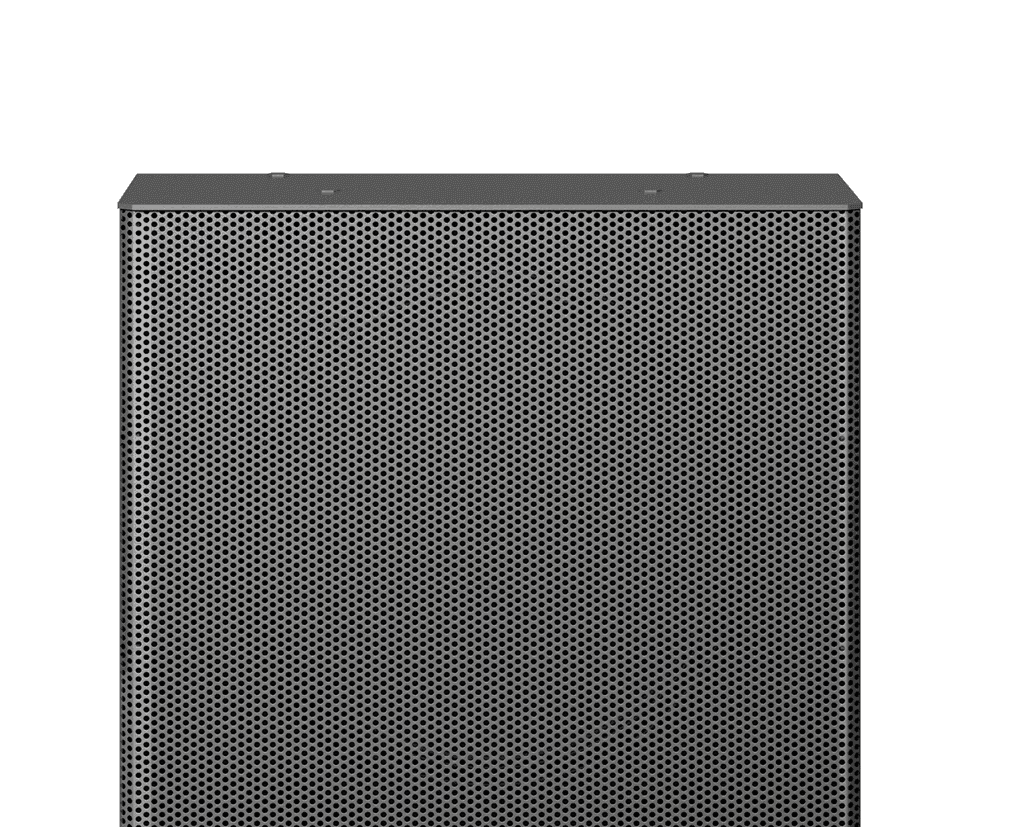

K-Array Domino KF210 – Stainless Steel Full-Range Speaker (Black)

Product Overview

The K-Array Domino KF210 is a stainless steel full-range speaker built for commercial AV installations that demand genuine 40 Hz to 19 kHz bandwidth from an enclosure only 151 mm deep. This 10-inch passive point source speaker delivers 123 dB peak SPL with symmetric 90° x 90° coverage, serving as a primary loudspeaker in auditoriums, houses of worship, and multi-purpose rooms without requiring a separate subwoofer in many designs. Its IP64-rated weather-resistant construction and selectable 4/16-ohm impedance make it equally at home in indoor and covered outdoor commercial deployment. This is the black finish; a white KF210W version is also available.

Product Description

The KF210 is the mid-size model in K-Array's Domino line, combining a 10-inch neodymium magnet woofer and a coaxially mounted 3-inch neodymium driver with a 10-inch passive radiator that extends low-frequency response down to 40 Hz — unusual reach for a cabinet under six inches deep. The coaxial point source layout produces coherent, intelligible sound both in the near field and at distance, which is why the KF210 works well in distributed systems where listeners sit close to the loudspeakers. Selectable 4-ohm or 16-ohm impedance lets integrators run a single cabinet at full output or chain multiple units on shared amplifier channels in larger rooms. The stainless steel enclosure carries an IP64 rating, with the optional K-KUIP cover extending water protection for exposed locations, and wall brackets are included in the box while the K-WF210 flush-mount frame, K-PMOUNT pole adapter, and K-FLY2U flying hardware cover recessed, pole, and suspended installations. K-Array recommends Kommander series amplification with dedicated KF210 presets — see the Kommander KA14 I — and projects needing more output can step up to the 12-inch Domino KF212.

Key Features

• True Full-Range Response — The 40 Hz to 19 kHz (-6 dB) bandwidth covers speech and full music program from one slim cabinet, often eliminating the need for a separate subwoofer.
• Coaxial Point Source Design — The 10" woofer and 3" driver share a single acoustic center for coherent imaging and high speech intelligibility at any listening distance.
• 10-Inch Passive Radiator — The integrated radiator extends bass output without ports, keeping the enclosure just 151 mm (5.9 in) deep for low-profile surface mounting.
• 123 dB Peak SPL — With 320 W rated power handling, a single KF210 covers mid-size commercial rooms at full program level.
• Selectable 4/16-Ohm Impedance — Integrators can run one cabinet at low impedance for maximum output or parallel multiple 16-ohm units on a shared amplifier channel in distributed designs.
• Symmetric 90° x 90° Coverage — Identical horizontal and vertical dispersion simplifies aiming whether the cabinet is mounted vertically or horizontally.
• IP64 Stainless Steel Construction — The weather-resistant enclosure serves covered outdoor and humid environments, with the K-KUIP accessory adding further water protection.
• Complete Mounting Ecosystem — Wall brackets ship in the box, and the K-WF210 flush-mount frame, K-PMOUNT pole adapter, and K-FLY2U flying hardware handle recessed, pole, and suspended installations.

Typical Applications

• Auditoriums and lecture halls requiring full-range reinforcement from discreet cabinets
• Houses of worship needing high speech intelligibility with music capability
• Multi-purpose rooms alternating between presentations and full program audio
• Broadcast studios where low-profile, accurate monitoring loudspeakers are required
• Commercial meeting spaces and all-hands rooms with distributed loudspeaker layouts
• Government spaces and training rooms requiring durable, installed point source audio

Technical Specifications

Frequently Asked Questions

Does the Domino KF210 need a subwoofer?

In many speech and background-music designs, no — the 10-inch passive radiator extends response to 40 Hz, covering most program material. For high-output music applications, it integrates readily with K-Array Thunder subwoofers through Kommander DSP crossover presets.

Which amplifier should drive the KF210?

K-Array recommends Kommander series amplifiers — KA14, KA24, or KA84 — which carry dedicated KF210 presets for optimized response and protection. Its passive design also accepts other professional amplifiers with appropriate power and DSP.

How does the selectable 4/16-ohm impedance help system design?

At 4 ohms a single cabinet draws maximum power from one channel; at 16 ohms up to four cabinets can parallel on a 4-ohm-stable channel, reducing amplifier count in distributed commercial installations.

Can the KF210 be used outdoors?

Yes, in protected outdoor locations. The stainless steel enclosure is rated IP64, and the optional K-KUIP cover adds water protection for more exposed positions.

What mounting options are available?

Wall brackets are included. Optional hardware covers flush in-wall recessing (K-WF210), pole mounting (K-PMOUNT), truss clamping (K-KCLAMP), and flown installation (K-FLY2U), so one loudspeaker model serves many room types.

Does it integrate with AV control systems?

When driven by Kommander electronics, the system integrates with Q-SYS, Crestron, Control4, AMX, and other commercial control platforms, plus Dante networking on supported amplifiers.

What warranty applies?

K-Array products carry a 5-year manufacturer warranty, supported by Creation Networks as an authorized dealer with design assistance before and after the sale.
