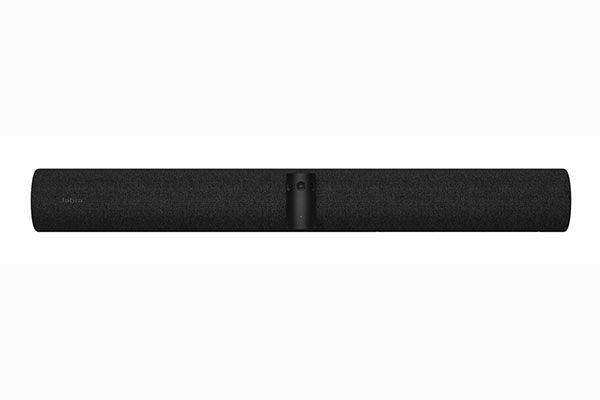

Jabra® PanaCast 50 Intelligent Video Bar - UC-SB-P50

Availability: Call for Availability
Crestron SKU: UC-SB-P50
No reviews
Price:
$1,296.00 $2,160.00

Description

Spec Sheet

The Jabra PanaCast 50 is an intelligent video bar that integrates microphones, speakers, and cameras into a single front-of-room device. Its high-quality speakers and microphones provide exceptional full-duplex performance. With three built-in conferencing cameras, it captures the entire room in panoramic 4K resolution, offering a seamless 180° horizontal field of view. Moreover, it is optimized for all major UC platforms, including Microsoft Teams Rooms and Zoom Rooms software.

  • Complete conferencing solution with speakers, microphones, and cameras in one front‑of‑room device
  • (8) microphone beamforming array
  • High‑powered 2‑way stereo speakers produce high‑quality sound
  • Full‑duplex audio performance with 2‑way voice quality
  • (3) built‑in cameras capture the room in a seamless 180° horizontal field of view
  • Panoramic 4K video resolution
  • 6x lossless digital zoom
  • Automatically adjusts the field of view to frame all participants
  • Microsoft Teams® Rooms and Zoom Rooms™ software certified
Speakers
Woofers (2) 2 in. (50 mm) woofers
Tweeters (2) 2 x 3/4 in. (50 x 20 mm) tweeters
Frequency Response 80 Hz to 20 kHz
Microphones
Microphone (8) microphone beamforming array
Pickup Range Suitable for rooms up to 15 x 15 ft
(4.5 x 4.5 m)
NOTE: Microphone pickup range may vary in rooms with highly reflective infrastructure (e.g., glass walls, metal furniture, open ceilings, etc.) or above average ambient noise.
Sensitivity -37 dBFS
Frequency Response 100 Hz to 8 kHz
Video
Cameras (3) cameras
Resolution 3840 x 1080 @ 30 fps;
13 megapixels
Field of View 180º horizontal, 54º vertical
Zoom 6x lossless digital zoom;
Automatically adjusts the field of view to frame all participants
Indicators
Status Bar (1) multicolor LED indicates connection status, in‑call mute/unmute, room capacity status, remote control pairing, and firmware update status
Connectors
POWER (1) AC power connector, female;
For included AC power pack
AUXIN (1) 3.5 mm AUX port;
For future use
USB C (1) USB‑C connector, female;
Connects to conferencing system, room controller, or laptop
ETHERNET (1) RJ‑45 connector, female;
Not used in Crestron Flex systems
Power
Power From external power pack;
Input: 100‑240VAC, 50/60 Hz;
Output: 5A @ 12V
Environmental
Temperature 41° to 95°F (5° to 35°C)
Construction

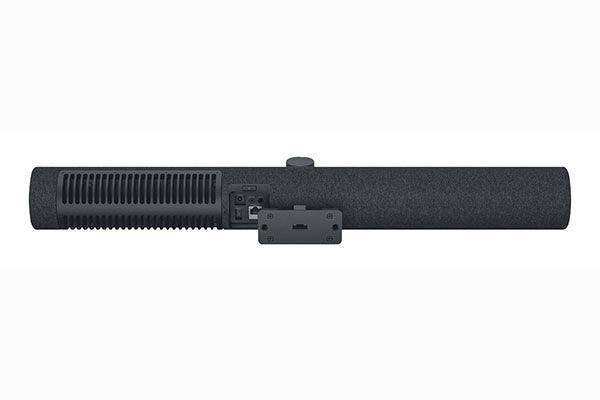

Enclosure Black speaker and camera housing, rear air vents, integrated adjustable mounting bracket
Mounting Wall mount using integrated mounting bracket;
Optional table mount or VESA® compliant screen mount (both sold separately)
Dimensions
Height 3.1 in. (90 mm)
Width 25.60 in. (650 mm)
Depth 4.90 in. (125 mm)
NOTE: Dimensions do not include the table stand or screen mount (both sold separately).
Weight
4.85 lb (2.2 kg)
