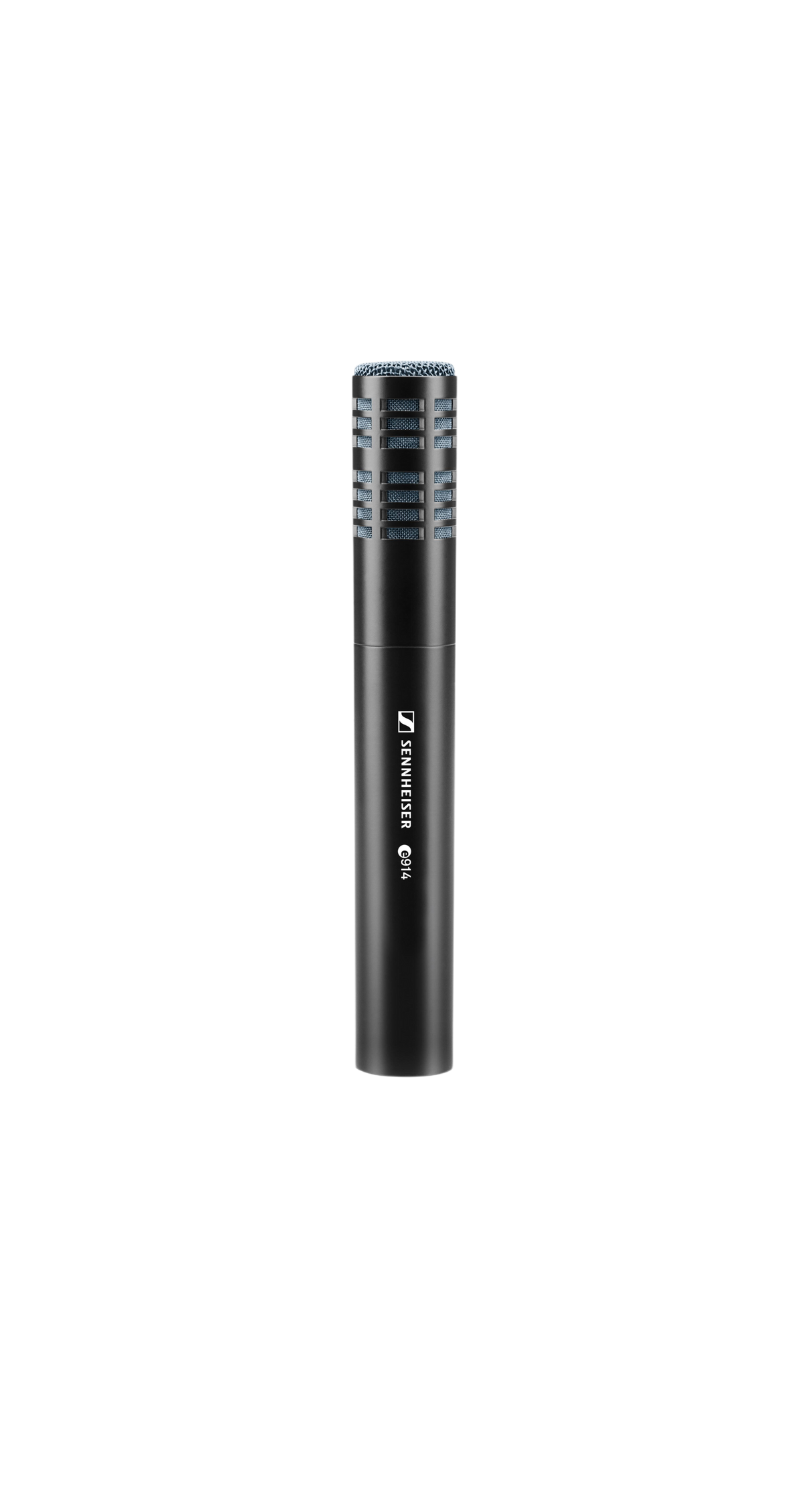

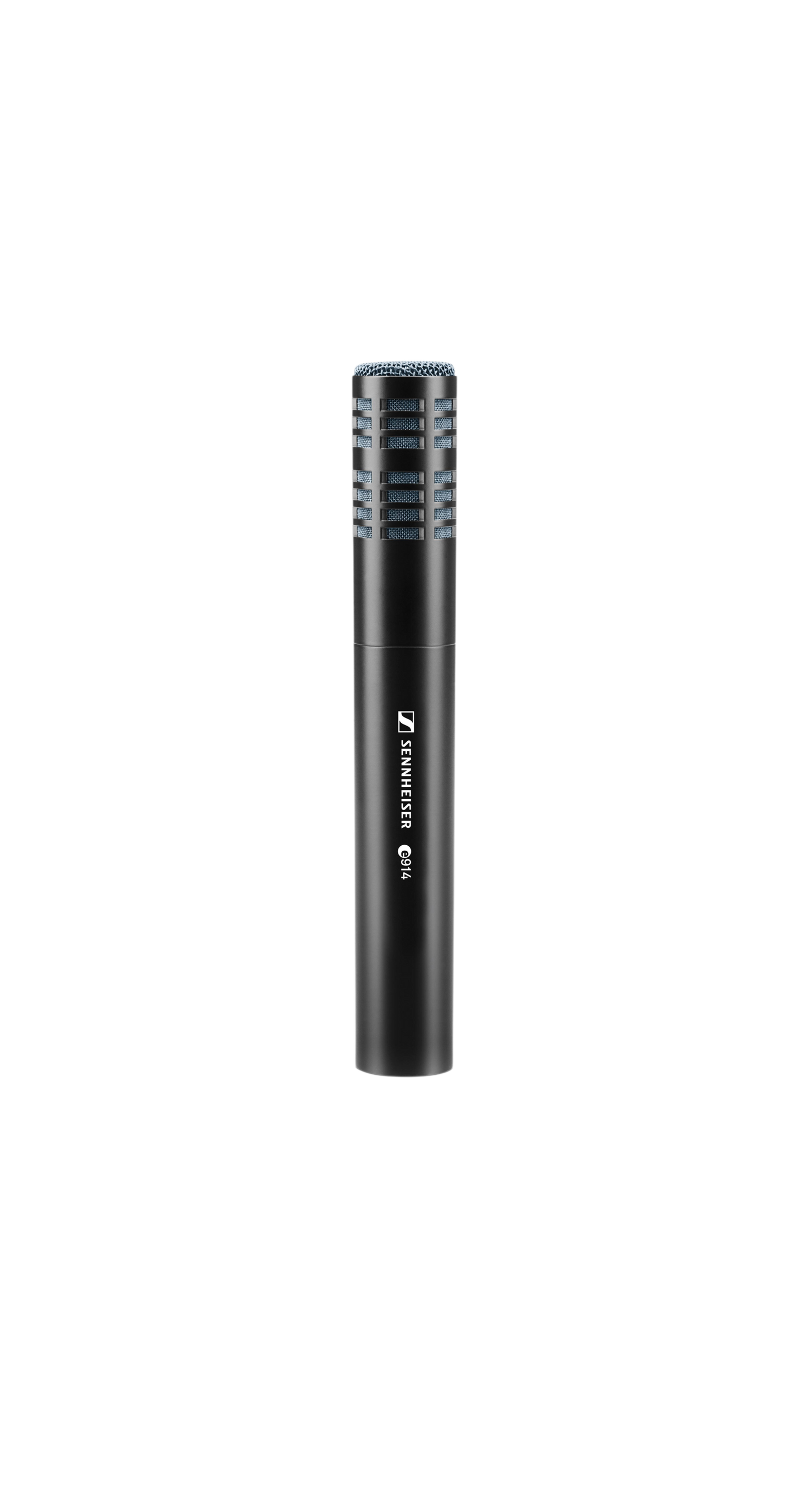

Sennheiser e 914 – Cardioid Condenser Instrument Mic

Product Overview

The Sennheiser e 914 is a cardioid condenser instrument microphone for miking acoustic instruments, overheads, and percussion in stage and studio applications. This small-diaphragm condenser captures detailed transient response and extended high-frequency detail across a 20 Hz to 20 kHz range. With switchable pre-attenuation and a bass roll-off filter, the e 914 condenser instrument microphone adapts to high-SPL sources and proximity effect. It connects via 3-pin XLR-M and runs on P48 phantom power for integration into standard balanced audio systems.

Product Description

The e 914 is a pre-polarised condenser microphone built for accurate instrument capture in live sound and recording environments. Its cardioid pick-up pattern rejects off-axis sound to control bleed and feedback when miking acoustic guitar, drum overheads, cymbals, piano, and percussion. A three-position pre-attenuation switch (0, -10, -20 dB) raises the maximum SPL handling to as high as 157 dB SPL, letting the microphone sit close to loud sources without overloading. The switchable bass filter offers a 130 Hz roll-off and an 85 Hz cut-off to manage low-end buildup and proximity effect. The capsule delivers 7 mV/Pa sensitivity with a low 24 dB(A) equivalent noise level for clean, quiet captures. A 100 ohm nominal impedance and 3-pin XLR-M connector integrate the microphone into any P48 phantom-powered console or interface. The microphone weighs 198 g and ships with an MZQ 800 clip, an MZW 64 windscreen, and a carrying pouch. It requires 48 V phantom power to operate.

Key Features

• Cardioid Condenser Capsule — The pre-polarised condenser capsule captures detailed transient response for accurate instrument reproduction.
• Switchable Pre-Attenuation — The 0/-10/-20 dB pad raises maximum SPL handling to as high as 157 dB SPL for close-miking loud sources.
• Bass Roll-Off Filter — The switchable low-cut offers a 130 Hz roll-off and 85 Hz cut-off to manage low-end buildup and proximity effect.
• Wide Frequency Response — The capsule covers 20 Hz to 20 kHz for full-range acoustic instrument capture.
• Low Self-Noise — The 24 dB(A) equivalent noise level keeps recordings clean and quiet.
• Standard XLR Integration — The 3-pin XLR-M connector and P48 phantom powering integrate the microphone into any balanced audio chain.
• Included Accessories — The microphone ships with an MZQ 800 clip, an MZW 64 windscreen, and a carrying pouch.

Typical Applications

• Broadcast studio
• Auditorium
• House of worship
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Does the e 914 require phantom power?

Yes. The e 914 is a condenser microphone and requires 48 V P48 phantom power, drawing 2.2 mA, supplied by your mixing console or audio interface.

What connector does the e 914 use?

The microphone terminates in a 3-pin XLR-M connector, so it integrates into any standard balanced XLR audio chain.

Can the e 914 handle loud sources like drums and cymbals?

Yes. The switchable pre-attenuation pad (0/-10/-20 dB) raises maximum SPL handling up to 157 dB SPL, allowing close-miking of drums, cymbals, and other high-SPL instruments.

How does the bass roll-off switch help in installation?

The switchable low-cut filter provides a 130 Hz roll-off and an 85 Hz cut-off to reduce low-frequency buildup, handling noise, and proximity effect when the microphone is placed close to a source.

What instruments is the e 914 best suited for?

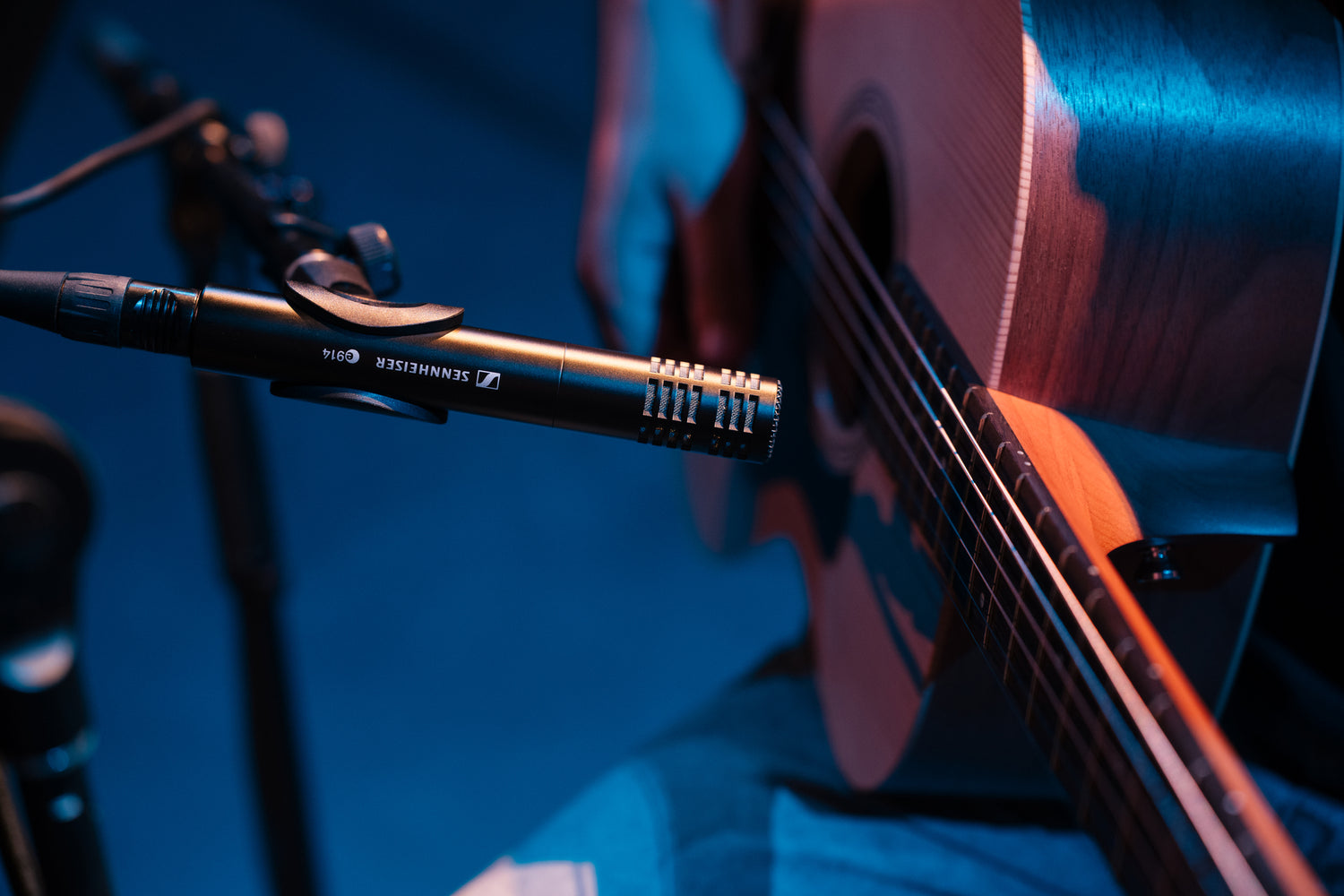

The cardioid condenser capsule suits acoustic guitar, piano, drum overheads, cymbals, and percussion where detailed transient response and off-axis rejection are needed.

Does the e 914 ship with mounting hardware?

Yes. It includes an MZQ 800 clip, an MZW 64 windscreen, and a carrying pouch for mounting, wind protection, and transport.

What support and warranty applies to the e 914?

The e 914 carries Sennheiser's standard manufacturer warranty. Contact Creation Networks at https://creationnetworks.net for warranty registration and AV system integration support.
