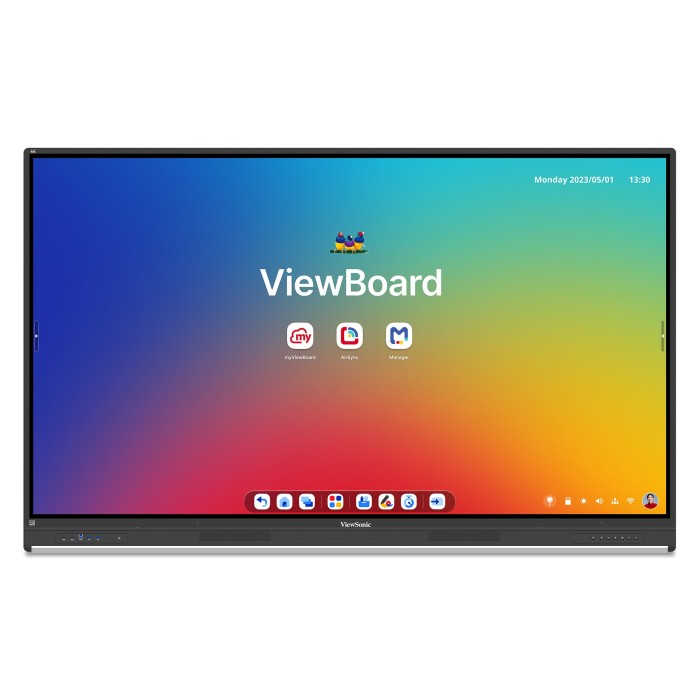

ViewSonic IFP8653-ED-M – 86-Inch Education Interactive Display

Product Overview

The ViewSonic IFP8653-ED-M is an 86-inch 4K UHD Android EDLA interactive flat panel display built for enterprise meeting rooms and institutional deployments requiring TAA compliance. As a TAA-compliant interactive flat panel, it meets U.S. government and federal procurement standards, making it well-suited for government spaces, defense contractors, and institutions with federal procurement requirements. The EDLA-certified Android platform integrates natively with Google Workspace and Microsoft 365, delivering a full-featured 4K interactive whiteboard with commercial-grade security and centralized IT management.

Product Description

The IFP8653-ED-M delivers 3840x2160 resolution on a 450 cd/m2 IPS panel with 40-point IR multi-touch, designed for shared-space collaboration in conference rooms, boardrooms, and training environments. TAA compliance (Trade Agreements Act) means this unit qualifies for GSA Schedule purchases and government contracts where domestic or compliant country-of-origin products are required.

The octa-core processor and 8GB LPDDR RAM provide fluid multitasking across productivity apps, video conferencing platforms, and ViewSonic's bundled software suite. IT administrators can deploy and manage the IFP8653-ED-M through ViewSonic Manager, Google Workspace Enterprise Management, or Microsoft Intune — all from a single dashboard. The 52W front-facing soundbar with beamforming 8-array microphone (captures voices up to 8 meters) handles hybrid meeting audio without additional peripherals.

Connectivity for AV system integrators includes four HDMI 2.1 inputs, DisplayPort, VGA, four USB-C ports, dual Gigabit Ethernet LAN, RS232 for control system integration, and an Intel OPS 80-pin slot for a slot-in PC module. Write-Away technology enables immediate annotation the moment users approach the display. NFC badge authentication, QR code sign-in, and Single Sign-On minimize session startup time in shared environments. EPEAT certification and ENERGY STAR 8.0 support sustainability procurement requirements.

Key Features

• TAA Compliant — Meets Trade Agreements Act requirements for U.S. government and federally funded institutional procurement.
• Android EDLA Certified — Full Google Play Store access with enterprise-grade security, Google Play Protect, and optional non-GMS backward-compatible mode.
• 4K UHD IPS Panel — 3840x2160 at 450 cd/m2 with 178° viewing angles for large conference room visibility.
• 40-Point IR Multi-Touch — Supports simultaneous pen and finger input with Write-Away instant annotation.
• 52W Integrated Soundbar — Front-facing audio (16W x2 + 20W subwoofer) with beamforming 8-array microphone for up to 8-meter voice capture.
• NFC + SSO Authentication — Fast login via NFC badge, QR code, or Single Sign-On for shared-space deployments.
• Dual Gigabit Ethernet — Separate network ports for Android OS and OPS PC module.
• Intel OPS Slot — 80-pin slot for Windows OPS PC modules enables hybrid Android/Windows operation.

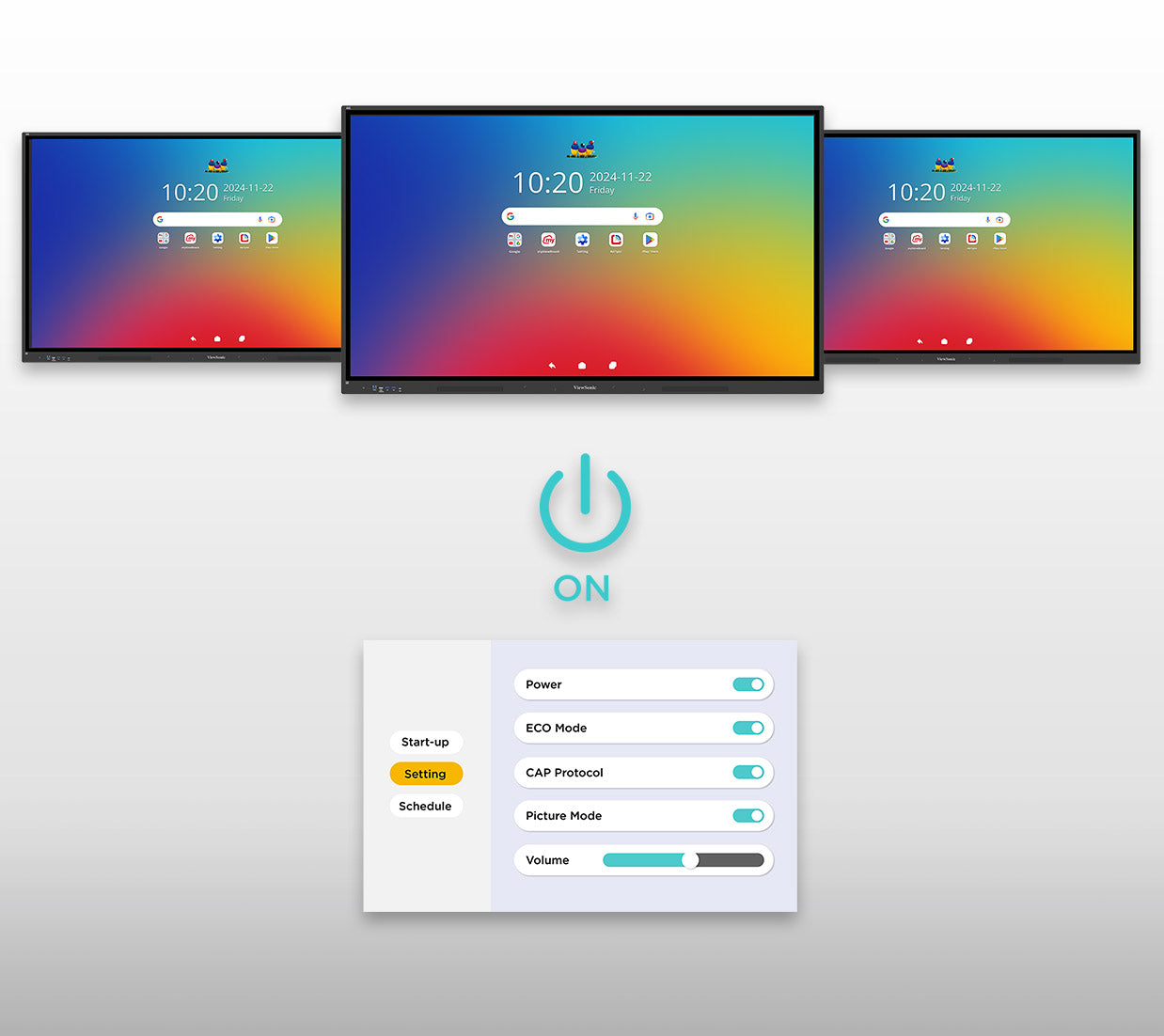

• Centralized IT Management — Compatible with ViewSonic Manager, Google Workspace Enterprise Management, and Microsoft Intune.
• EPEAT and ENERGY STAR 8.0 — Supports green procurement standards for government and enterprise buyers.
• Bundled ViewSonic Software — myViewBoard, AirSync, and Manager included at no additional cost.
• 3-Year Onsite Warranty — Parts, labor, and backlight coverage with onsite service.

Typical Applications

• Government space
• Boardroom
• Conference room
• Commercial meeting space
• Training room
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

What does TAA compliant mean for the IFP8653-ED-M?

TAA compliance means the product meets the Trade Agreements Act requirements for U.S. government procurement. It qualifies for GSA Schedule purchases and contracts requiring products manufactured in designated countries. This makes it suitable for federal agencies, defense contractors, and institutions receiving federal funding.

Is the IFP8653-ED-M compatible with government IT management platforms?

Yes. It supports Microsoft Intune for mobile device management, Google Workspace Enterprise Management, and ViewSonic Manager — all commonly used in government and enterprise IT environments for remote deployment, policy enforcement, and monitoring.

Can this display run Windows applications?

With an OPS PC module installed in the 80-pin Intel OPS slot (sold separately), the IFP8653-ED-M runs Windows 10/11 applications. Without an OPS module, it operates on the Android EDLA platform with access to the Google Play Store.

What AV control systems are compatible with the IFP8653-ED-M?

The IFP8653-ED-M includes RS232 and Ethernet connectivity for integration with Crestron, Extron, AMX, and other AV control systems via RS232 or LAN control protocols.

Does the integrated microphone support echo cancellation for video conferencing?

Yes. The 8-array beamforming microphone supports full-duplex echo cancellation and noise reduction, designed for video conferencing via Microsoft Teams, Zoom, or other platforms installed through the Google Play Store.

What is the warranty on the IFP8653-ED-M?

ViewSonic provides a 3-year limited warranty covering parts, labor, and backlight with onsite service. Government procurement officers should confirm warranty terms align with contract requirements before purchase.

Is Wi-Fi included or does it need to be purchased separately?

The VB-WIFI-005 Wi-Fi adapter (802.11ax, dual-band 2.4/5GHz, Bluetooth 5.2) is included in the box with the IFP8653-ED-M.
