Extron WPB 109 One-Gang Wallplate for HDMI, VGA, and Stereo Audio Black
Extron WPB 109 One-Gang Wallplate for HDMI, VGA, and Stereo Audio Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron WPB 109 One-Gang Wallplate for HDMI, VGA, and Stereo Audio B...

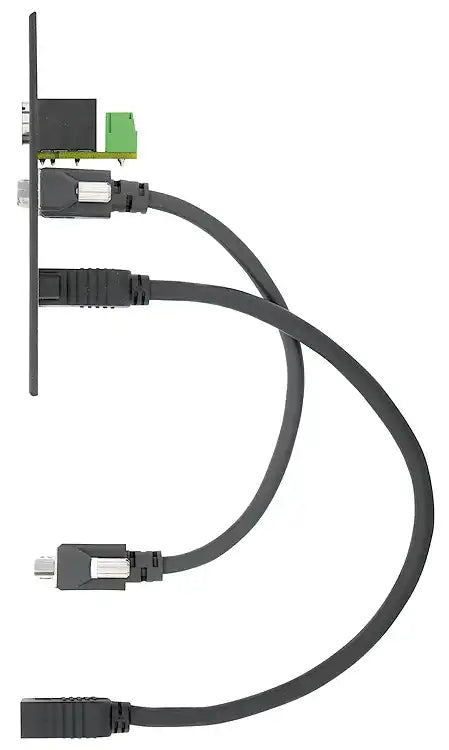

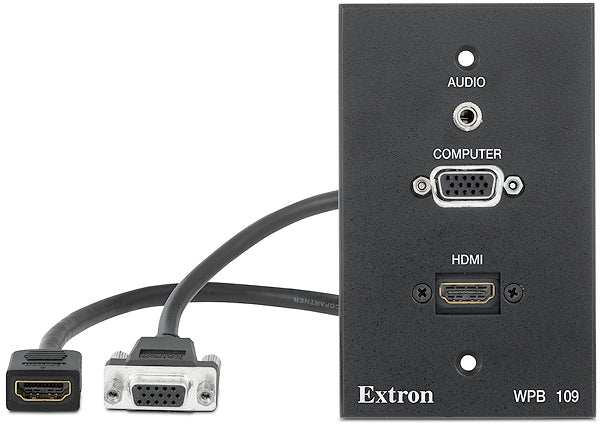

The Extron WPB 109 is a compact, one-gang wallplate providing convenient pass-through connectivity for HDMI, VGA computer video, and stereo audio in professional AV installations. It features an HDMI female to female on a 10" pigtail, VGA 15-pin female to female on a 6" pigtail, and a 3.5 mm stereo mini jack to captive screw connector, allowing seamless integration behind walls in classrooms, conference rooms, and presentation spaces. Signals pass through unprocessed while supporting DDC transmission for EDID and HDCP key exchange, ensuring reliable compatibility between sources and displays.
Constructed from durable metal with black or white finish options, the wallplate mounts directly into standard one-gang junction boxes or Extron EWB/SMB 110 series enclosures. Rear pigtails facilitate easy cable routing and management, with sufficient depth allowance for bend radii, making it ideal for clean, flush-mounted AV input points without active processing.
Features Chart
| Feature | Benefit |
|---|---|
| HDMI female to female 10" pigtail | Enables direct HDMI source connection with full signal pass-through |
| VGA 15-pin female to female 6" pigtail | Supports legacy computer video inputs with reliable connectivity |
| 3.5 mm stereo mini jack to captive screw | Provides secure, balanced or unbalanced audio input wiring |
| Supports DDC transmission | Allows EDID communication and HDCP key exchange for optimal display performance |
| HDCP compliant | Ensures protected content playback compatibility |
| Unprocessed signal pass-through | Maintains original signal integrity without conversion or degradation |
| Metal construction with black/white finish | Offers durability and aesthetic match to installation environments |
| One-gang standard mounting | Fits common junction boxes for straightforward AV wall integration |
Specifications Table
| Specification | Details |
|---|---|
| Connectors | 1 x HDMI female to HDMI female (10" pigtail); 1 x VGA 15-pin HD female to VGA 15-pin HD female (6" pigtail); 1 x 3.5 mm stereo mini jack to 3-pole captive screw |
| Signal Type | HDMI (digital video/audio); VGA (analog computer video); Stereo audio |
| Max HDMI Capabilities | Up to 4096x2160 at 30 Hz 4:4:4 8-bit; 3840x2160 at 60 Hz 4:2:0; Max data rate 10.2 Gbps |
| Enclosure Type | Metal |
| Mounting | Surface mount; one-gang junction box, Extron EWB or SMB 110 Series |
| Faceplate Dimensions | 4.5" H x 2.8" W x 1.6" D (114 mm H x 71 mm W x 41 mm D) |
| Depth for Connectors | Allow 2.25" (57 mm) for cable management |
| Product Weight | 0.2 lb (0.1 kg) |
| Regulatory Compliance | RoHS, WEEE compliant |
| Warranty | 3 years parts and labor |
Compare Chart
| Aspect | Extron WPB 109 | Extron WPB 301 (HDMI/VGA/Audio) | Kramer WP-580 (HDMI/VGA/Audio) |
|---|---|---|---|
| Ports | HDMI, VGA, Stereo Audio | HDMI, VGA, Stereo Audio | HDMI, VGA, Stereo Audio |
| Pigtail Lengths | HDMI 10", VGA 6" | Varies by model | Typically fixed connectors |
| Mounting | One-gang standard | One-gang or decorator | Multi-gang options often |
| Signal Pass-Through | Unprocessed, DDC/HDCP support | Unprocessed, DDC/HDCP | Active or pass-through models |
| Construction | Metal, black/white | Metal/plastic variants | Plastic or metal |
| Depth Requirement | 2.25" for cables | Similar | Varies |
| Max Resolution Support | Up to 4K@30Hz 4:4:4 | Up to 4K depending on model | Up to 4K in newer models |
| Warranty | 3 years | 3-7 years typical Extron | Varies by model |
FAQ
- What signals does the WPB 109 support? It provides pass-through for HDMI digital video/audio, VGA analog computer video, and stereo audio, with full DDC and HDCP compliance.
- How long are the pigtail cables? The HDMI pigtail is 10 inches, and the VGA pigtail is 6 inches, allowing flexible rear connections.
- Is any power required for the WPB 109? No, it is a passive pass-through device with no external power needed.
- What mounting options are available? It installs in standard one-gang junction boxes, Extron EWB, or SMB 110 series enclosures using the included mud ring or compatible boxes.
- Does it support 4K video? Yes, it handles up to 4096x2160 at 30 Hz with 4:4:4 chroma and 8-bit depth, subject to cable quality and data rate limits.
- How should audio connections be wired? Use the captive screw connector for balanced or unbalanced stereo audio; follow standard wiring diagrams to avoid ground issues.
