Extron VCM 200 D Volume and Mute Controller - Decorator-Style

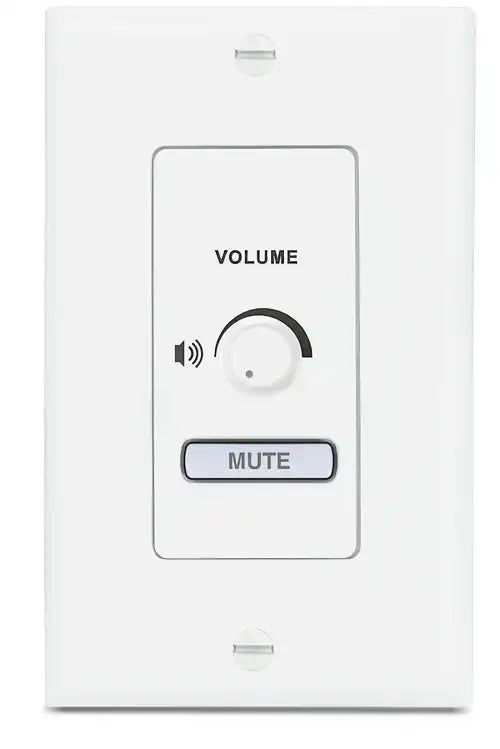

The Extron VCM 200 D is a one-gang decorator-style wall mounting kit for remote volume and mute control of select Extron power amplifiers or mic preamplifiers with a remote volume control port. It features a rotary volume control that provides smooth, precise volume levels and a dual color, illuminated soft touch button for muting. Three captive screw connectors on the back panel provide quick and easy connectivity without soldering. The controller mounts to a decorator-style wallplate, and includes black and white high-impact plastic faceplates and a one-gang mud ring kit.
Features
- Provides remote volume and mute control of select Extron power amplifiers or preamplifiers with a remote volume control port
- Continuous gain control for fine adjustment of volume
- Dual color, illuminated pushbutton for muting
- Mounts in an included decorator-style wallplate
- Mud ring included
- Includes black and white bezels and decorator-style faceplates
| VCM 200 Series | |||
| Control — peripheral audio equipment | |||
|---|---|---|---|
| |
0 to 10 VDC variable voltage, positive logic (the higher the voltage, the higher the volume) | ||
| |
Momentary push switch with latching contact closure during mute; LED mute indication | ||
| |
|||
| |
1 = GND, 2 = volume/mute (variable voltage), 3 = +10 VDC | ||
| |
1 = +10 VDC, 2 = volume/mute (variable voltage), 3 = GND | ||
| |
10 VDC | ||
| General | |||
| |
External 10 VDC supplied by the Extron device being controlled (MLP, MPA, PVS, XPA) |
||
| |
Unmute mode: 0.2 watts, 10 VDC Mute mode: 0.4 watts, 10 VDC |
||
| |
Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
||
| |
|||
| |
|||
| |
Mounts in a standard 1 gang US electrical junction box (1.50" depth) or with included mud ring. | ||
| |
Mounts in a standard 1 gang EU electrical junction box with 60 mm mounting centers (40 mm depth). An adapter plate is included. | ||
| |
Mounts to a standard 35 mm deep MK electrical junction box. An adapter plate is included. | ||
| |
Plastic | ||
| |
|||
| |
|||
| |
2.6" H* x 1.3" W x 0.3" D (6.6 cm H* x 3.3 cm W x 0.6 cm D) (Excludes knob. Fits the opening in a 1 gang decorator-style wallplate. *Overall height is 4.1" (10.4 cm) including mounting tabs. Mounting holes are 3.8" [9.5 cm] apart on center.) |
||
| |
2.8" H x 1.8" W x 0.3" D (7.0 cm H x 4.5 cm W x 0.6 cm D) (Overall rear dimensions, including connectors. Allow at least 1.5" [3.7 cm] depth in the wall or furniture for device and cable clearance.) |
||
| |
 |
||
| |
|||
| |
2.2" H x 2.2" W x 0.3" D (1 gang EU, fits a Jung AS 500 wallplate) (5.5 cm H x 5.5 cm W x 0.7 cm D) |
||
| |
VCM 200 EU: 3.2" H x 3.2" W x 0.4" D (8.1 cm H x 8.1 cm W x 1.1 cm D) VCM 200 MK: 3.4" H x 3.4" W x 0.4" D (8.6 cm H x 8.6 cm W x 1.1 cm D) |
||
| |
2.0" H x 1.8" W x 0.4" D (4.8 cm H x 4.6 cm W x 1.0 cm D) (Overall rear dimensions, including connectors. Allow at least 1.25" [3.2 cm] depth in the junction box for device and cable clearance.) |
||
| |
 |
||
| |
0.1 lb (<0.1 kg) | ||
| |
ISTA 1A in carton (International Safe Transit Association) | ||
| |
|||
| |
CE, c-UL, UL | ||
| |
CE, C-tick, FCC Class A, ICES, VCCI | ||
| |
3 years parts and labor | ||
|
|||
|
|||
| (040717-D2) | |||
| Shipping Dimensions and Weights | ||||
|---|---|---|---|---|
| Part # | Height | Width | Depth | Weight |
| 70-883-02 | 2.38" (6.0 cm) | 6.0" (15.2 cm) | 5.0" (12.7 cm) | 0.44 lbs (0.2 kg) |
