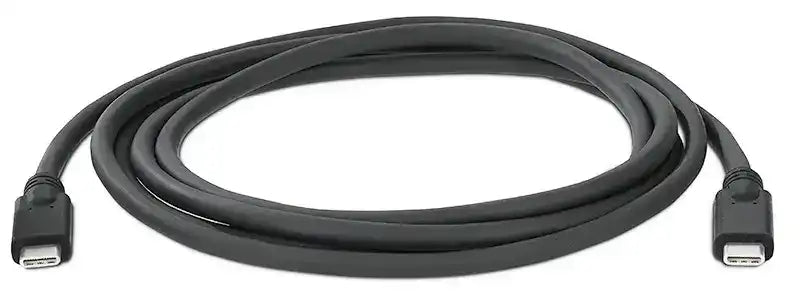

Extron USBC USB-C® 5 Gbps Cable

The Extron USBC is a USB cable with USB-C^® connectors for transmission of video, audio, data, and power signals. It supports data rates up to 5 Gbps and delivers up to 60 watts of power to charge mobile phones, external hard drives, and most laptops. Hassle-free, reversible USB‑C connectors offer ease of use. The USBC is an ideal solution for applications that require a reliable, high-performance connection between USB‑C equipped devices.

Features

• Supports USB data rates up to 5 Gbps
• USB Power Delivery up to 60 watts
• Supports DisplayPort Alt Mode outputs up to 4K/60
• New Multi-Stream Transport - MST support — The cable supports MST, which allows multiple monitors to be operated simultaneously from a single USB‑C source output.
• Supports HDCP
• Reversible USB-C^® connectors
• Gold-plated contacts
• Compatible with Thunderbolt 3 devices
• 6' (1.8 m) cable length

USBC
specification
Frame rate1	24, 25, 30, or 60 fps
Chroma sampling1	4:4:4 or 4:2:2
Color bit depth1	8, 10, or 12 bits per color
Signal Type	Up to DisplayPort 1.2 and HDCP 2.3
Max. video data rate	21.6 Gbps (5.4 Gbps Per Lane)
NOTE     1Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate.
Video
DisplayPort video	DisplayPort Alt Mode, DP 1.2 (1,2, or 4 lanes)
Maximum data rate	21.6 Gbps (5.4 Gbps Per Lane)
Resolution range	640x4808, 480p7,8, 576p6, 720p3,4,5,6,7,8,9, 1080i6,7,8, 1080p1,2,3,4,5,6,7,8,9, 2K1,2,3,4,5,6,7,8, 3840x21601,2,3,4,5, 4096x21601,2,3,4,5
Frame rate	123.98 Hz, 224 Hz, 325 Hz, 429.97 Hz, 530 Hz, 650 Hz, 759.94 Hz, 860 Hz, 9120 Hz (depending on resolution)
Color space	4:4:4 or 4:2:2
Color bit depth	8, 10, and, 12 bits per color – (Subject to maximum data rate)
Standards	Up to DisplayPort 1.2 and HDCP 2.3
Format	RGB and YCbCr digital video
Data
USB specification	USB 3.2 (Gen 1), 2.0, 1.1 Compatible
USB data rate	Up to 5 Gbps
Power
Maximum power delivery	60 W
Maximum current	3 A
Mechanical
Cable outer diameter	0.19" (4.8 mm)
Bend radius	1.90" (48 mm)
General — physical characteristics
Connectors	1 USB-C Male to 1 USB-C Male
Contacts	Gold plated
Material	Conductors: 30 AWG Tinned Copper Wires Jacket: PVC – Polyvinyl Chloride
Connector dimensions	1.60" L x 0.48" W x 0.24" thick (41 mm L x 12 mm W x 6.1 mm thick)
General
Regulatory compliance	CE, RoHS, UL-CMX, WEEE
Warranty	3 years
NOTE     Specifications are subject to change without notice.
NOTE     All nominal levels are at ±10%.
(6198-D2)
