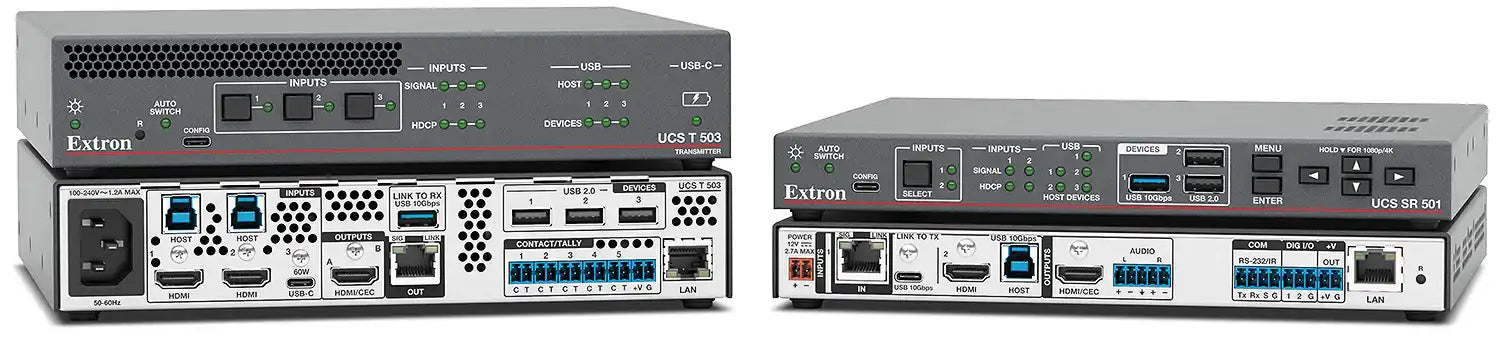

Extron UCS 504 New 4x2 4K Collaboration Switcher & Scaling Receiver

The UCS 504 is a 4K collaboration switcher and receiver kit that combines AV and USB switching with twisted pair signal extension. The transmitter supports USB‑C and dual HDMI with USB inputs for BYOM laptops. The scaling receiver provides an additional HDMI with USB input for a dedicated UC computer and an HDMI output to the room display. Six USB device connections support cameras or mics up to USB 10Gbps and HDMI outputs enable resolutions up to 4K/60. The system supports auto-switching and automation capabilities including CEC, RS‑232, or IR control to a display. The compact half‑rack width transmitter can mount under a table while the 1" (2.5 cm) high receiver easily mounts behind a display. The UCS 504 makes it easy to integrate AV sources and USB cameras for Teams® and Zoom™ meetings into conference and collaboration spaces.

With USB cameras, microphones, and other peripheral devices becoming more common in small meeting spaces, the ability to connect users' laptops to these devices has become critical to a successful meeting experience. The UCS 504 supports switching up to six USB room devices, one that supports rates up to USB 10Gbps while providing 5V, 900 mA power, and five that support rates up to High Speed (USB 2) while providing 5V, 500 mA power per port. Integrating traditional AV display switching with USB peripheral device switching in one unit takes collaboration between local and remote users to a new level.

Simplify Equipment Placement with Signal Extension

Many meeting spaces need to extend AV and USB signals between a presenter sitting or standing at a table, lectern, or other furniture to a display at the front of the room, where equipment such as a dedicated computer or USB camera may be mounted.  The UCS 504 uses a single CATx cable to extend the video and High Speed (USB 2) signals up to 330 feet (100 meters) between the transmitter and receiver for easy room installation of signals over a single cable.  For rooms that use a USB camera with rates up to USB 10Gbps (USB 3), an optional USB cable provides extension between the transmitter and receiver. The UCS 504 provides flexible signal extension, making it easy to install AV and computer equipment in multiple locations within a space.

USB Breakaway Switching

For more complex room setups that may want to switch the USB devices separately from the AV inputs, the UCS 504 offers USB breakaway switching. This enables flexibility in switching by allowing the DisplayPort Alt Mode video from the USB-C input and HDMI input video and audio to be switched to the display without the corresponding USB data bus. For example, USB devices, such as a USB camera or microphone, could be left connected to a dedicated HDMI computer in the room while video from the other inputs is sent to the room’s display via the HDMI output. This enables USB peripherals to be switched independently of video and audio signals when needed for users who may only want to use the space for a traditional BYOD presentation meeting.

Intuitive Collaboration

The user-friendly UCS 504 is easy to use in any meeting space, including simple rooms without a control system. The auto switching feature can be configured to prioritize inputs if more than one laptop or computer is connected at the same time. This can be used in rooms that have a dedicated computer connected to one input, leaving other inputs for other devices such as laptop computers. As laptops connect, the switcher will automatically switch that laptop to the display and connect the USB camera or other room devices to the laptop for use in a Teams or Zoom meeting. When a laptop is disconnected, the system will automatically switch back to the dedicated computer for users who may want to use the room without a laptop. This empowers users to collaborate intuitively, with minimal interaction with the AV hardware.

Convenient Content Sharing

Control can be brought to users’ fingertips using Show Me® cables or Retractors housed in elegant Cable Cubby or AVEdge table mounted cable access enclosures. Users simply connect their laptop computers to a Show Me cable and press the Share Button to share content to the room’s display. This can eliminate the need for a control system and button panel or touch panel for simple presentation or Bring Your Own Meeting (BYOM) spaces.

Comprehensive USB-C

The UCS 504 utilizes the full capabilities of USB-C connections, enabling transmission of all three primary AV functions, video/audio, USB data, and power over a single cable. This all-in-one connection eliminates the need for laptops to have a separate power or USB data connection and streamlines the user experience with a single cable connection.

BYOM Convenience

Bring Your Own Meeting (BYOM) rooms offer collaborative spaces for local and remote users without the need for more complicated room setups that use dedicated computers, switching, and control equipment. BYOM spaces can use USB cameras and microphones in conjunction with portable laptops brought by the users. Utilizing a collaboration switcher with extension capabilities integrates USB switching with traditional AV switching and extension, enabling the room to seamlessly switch between multiple laptops or computer sources while also providing access to USB-connected equipment. These spaces are more convenient for users, less expensive to set up and maintain, and offer more flexibility. BYOM spaces also serve a dual function and operate as traditional presentation spaces when users want to present content locally and don’t need to run a UC meeting. BYOM spaces feature powerful and effective local and remote collaboration capabilities for today’s meeting and collaboration rooms.

Features

• Switches USB devices between USB-C and three HDMI inputs with extension to a remote display
• Inputs (Transmitter): Two HDMI type A with USB Type B connectors and one USB-C connector. (Receiver) One HDMI type A with USB Type B connector
• Outputs (Transmitter): One female HDMI type A connector (Receiver): One female HDMI type A connector
• Supports computer and video resolutions up to 4K/60 @ 4:4:4 — Resolutions up to 4096x2160/60 with 4:4:4 chroma sampling at 8 bits of color.
• Provides USB device connections up to USB 10Gbps — For use with USB cameras or microphones.
• Provides up to 60 watts of power to a USB-C source — Supports USB Power Delivery to charge a laptop or other USB-C connected device.
• Auto-switching and automation capabilities — Automatically switches to the highest-numbered input with an active video signal.
• Uses a single CATx cable to extend video and High Speed (USB 2) signals up to 330 feet (100 meters) — The UCS 504 fully supports all compatible resolutions and USB data rates up to High Speed (USB 2) when used with CATx shielded twisted pair cable. Shielded twisted pair cabling with solid center conductor sizes of 22 AWG or better is recommended for optimal performance.
• Display control options including RS-232, IR, and CEC over HDMI connection
• Single connection for video, USB data, and power for USB-C source devices
• Compatible with Show Me® cables — Show Me cables provide convenient connectivity and user input selection and control for collaboration systems.
• Ethernet monitoring and control — Enables control and proactive monitoring over a LAN or WAN.
• Multiple control options including Ethernet, contact closure, front panel, and auto-input switching
• Local Transmitter Output — An HDMI output is available on the transmitter to send video to a local confidence monitor or display.
• Scaling Receiver with Advanced Extron Vector™ 4K scaling technology — Vector 4K scaling technology ensures critical-quality 4K imagery, with best‑in‑class image upscaling and downscaling, enhanced color accuracy, and picture detail for clear video content when switching inputs.
• Aspect ratio control — The aspect ratio of the scaling receiver video output can be controlled by selecting a FILL mode, which provides a full screen output, or a FOLLOW mode, which preserves the original aspect ratio of the input signal.
• Display Screen Saver — Automatically shuts down the HDMI output sync on the scaling receiver after a specified time if no input signal is present saving display energy and life.
• Extron Pro Series Secure Control — The UCS 504 is designed to work natively with Extron Pro Series control systems as an IP Link Secure Platform Device that provides encrypted communications at all times between an Extron Pro Series control processor and the UCS 504.
• HDCP 2.3 compliant — Ensures display of content-protected 4K video media and maintains interoperability with earlier versions of HDCP.
• Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12 bit, 3D, and HD lossless audio formats
• Support for HDR – High Dynamic Range video — Enables greater contrast range and wider color gamut by providing the necessary video bandwidth, color depth, and metadata interchange capability for HDR video.
• EDID Minder® automatically manages EDID communication between connected devices — EDID Minder ensures that all sources power up properly and reliably output content for display.
• User-selectable HDCP authorization — Allows individual inputs to appear HDCP compliant or non HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non HDCP mode.
• HDCP Visual Confirmation provides a green signal when encrypted content is sent to a non-compliant display — A full screen green signal is sent when HDCP encrypted content is transmitted to a non HDCP compliant display, providing immediate visual confirmation that protected content cannot be viewed on the display.
• Automatic color bit depth management — The switcher automatically adjusts color bit depth based on the display EDID, preventing color compatibility conflicts between source and display.
• Front panel LED indicators for signal presence, HDCP, USB Device connectivity, Auto Switch mode, USB-C power, and unit power — Provides visual indication of system status for real-time feedback and monitoring of key performance parameters.
• Front panel input selection buttons and on-screen display controls — Provides input selection buttons on the transmitter and receiver for local input selection as well as receiver on screen display controls for scaling receiver setup.
• Front panel security lockout — Prevents unauthorized use in non-secure environments. Set via front panel buttons or SIS commands.
• Contact closure remote control with tally output — Allows for automatic operation by an optional occupancy sensor or remote selection of an input channel by a button panel. +5 VDC is provided to light an LED to indicate the currently selected input.
• Optional 100 foot (30.4 meter), 65 foot (19.8 meter), 50 foot (15.2 meter), and 35 foot (10.7 meter) plenum-rated cable is available — Extron USBA-C ProMax Plenum cable connects USB cameras or other devices at rates up to USB 10Gbps between the transmitter and receiver.
• Meets Ecofficient Level 1 — Includes an energy-saving, externally controllable standby mode that puts the device in a low power state when not in use.
• Includes LockIt^® Plus cable lacing brackets — Securely fastens HDMI or USB-C^® cables to a device, eliminating risk of disconnection.
• Extron recommends the USBC Pro 8K Series cable for video applications or the USBC Pro Series for data applications
• Extron recommends the USBC cable for video and data applications under 6 feet (1.8 m)
• Compatible with Extron mounting solutions — Easy mounting with Extron low-profile and under-desk mounts, under-table kits, and rack-shelf options.
• 1U (Transmitter) and 1” (2.5 cm) high (Receiver), half rack width metal enclosures — Compact, low-profile enclosures allow discreet installation within furniture or behind a flat panel display.
• Internal (Transmitter) and External (Receiver) Extron Everlast™ power supplies — Provide worldwide power compatibility with high demonstrated reliability and low power consumption for reduced operating cost.
• Extron Everlast Power Supplies are covered by a 7-year parts and labor warranty

UCS 504
specification
Max. 4K Capabilities Resolution and Refresh Rate Chroma Sampling Max. Bit Depth per Color 4096x2160 at 60 Hz1 4:4:4 8 bit 3840x2160 at 60 Hz 4096x2160 at 30 Hz 12 bit 3840x2160 at 30 Hz 4096x2160 at 60 Hz 4:2:0 3840x2160 at 60 Hz
Frame rate1	24, 25, 30, 50, or 60 fps
Chroma sampling1	4:4:4 or 4:2:0
Color bit depth1	8, 10, or 12 bits per color
Signal Type	HDMI 2.0b, HDCP 2.3
Max. video data rate	18 Gbps (6 Gbps per color)
NOTE     1Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate.
Video
HDMI
Maximum data rate	18 Gbps (6 Gbps per color)
Maximum pixel clock	600 MHz
Resolution range	Up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4 chroma subsampling)
Color bit depth	8, 10, or 12 bits — subject to the max data rate
Formats	RGB and YCbCr digital video
HDR	HDR 10, HDR10+, Dolby Vision
Standards	HDMI 2.0b, DisplayPort 1.2 (Alt Mode), DVI 1.0, HDCP 1.x, HDCP 2.3, CTA-861-F

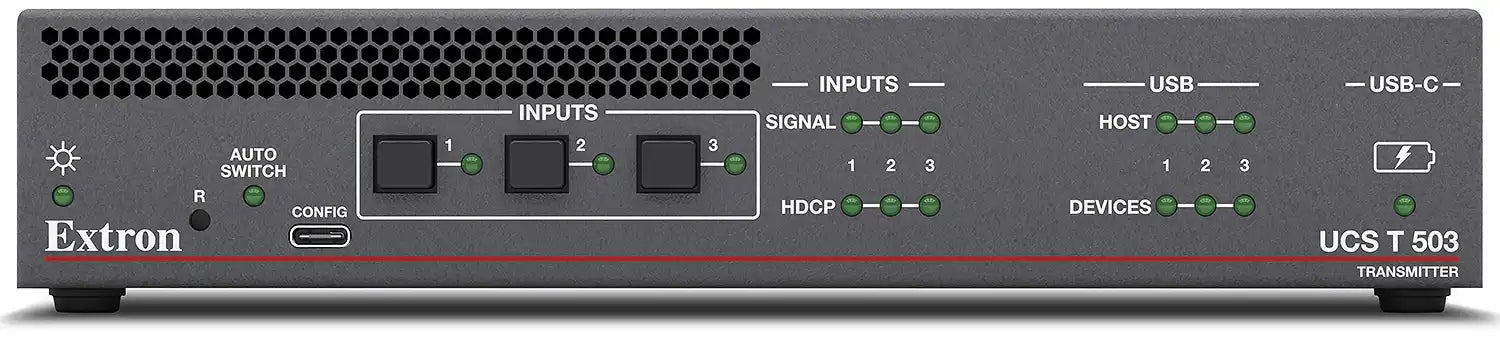

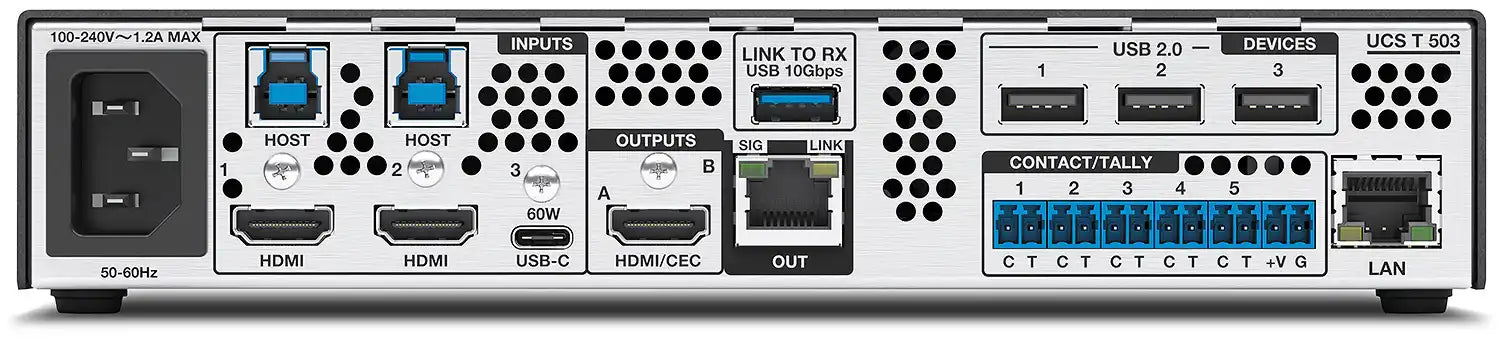

Video input — UCS T 503 transmitter
Number/signal type	2 HDMI 2.0 (or single link DVI-D with appropriate DVI-HDMI adapters)  1 DisplayPort 1.2 USB-C Alt Mode (2 or 4 lanes) RBR/1.62 Gbps, HBR/2.7 Gbps, HBR2/5.4 Gbps
Connectors	2 female HDMI type A 1 female USB type C
Horizontal frequency range	15 kHz to 270 kHz for resolutions up to 18 Gbps
Vertical frequency range	24 Hz to 240 Hz for resolutions up to 18 Gbps

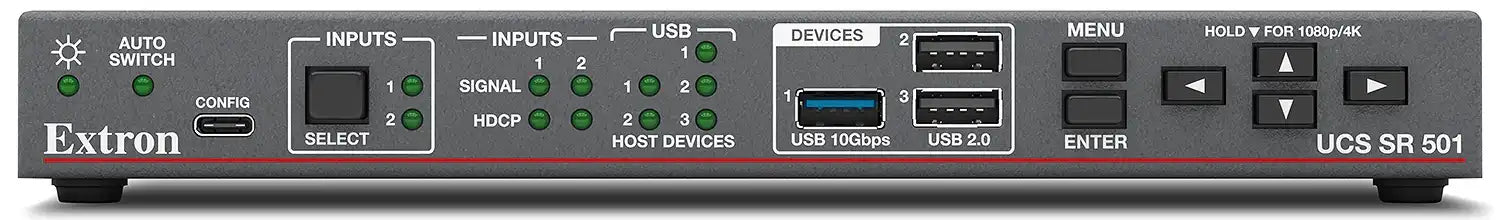

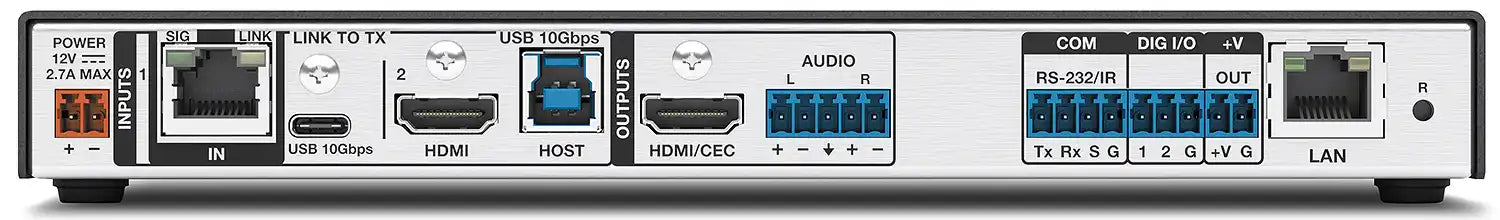

Video input — UCS SR 501 receiver
Number/signal type	1 digital twisted pair 1 HDMI
Connectors	1 female RJ-45 jack 1 female HDMI type A
Video output — UCS T 503 transmitter
Number/signal type	1 digital twisted pair 1 HDMI
Connectors	1 female RJ-45 jack 1 female HDMI type A
Interconnection between transmitter and receiver — Audio/Video
Transmission distance	Up to 330' (100 m) using shielded twisted pair (STP) or XTP DTP 22 cable
Cable requirements	Solid conductor, 22 AWG or better
Cable recommendations	500 MHz bandwidth, S/FTP
NOTE     Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance.
Output power for active cables	1.25 watts max for HDMI port
Video output — UCS SR 501 receiver
Number/signal type	1 HDMI (or single link DVI-D with appropriate DVI-HDMI adapters)
Connector	1 female HDMI type A
Audio
Gain	Unbalanced output: 0 dB; balanced output: +6 dB
Frequency response	20 Hz to 20 kHz, ±0.05 dB
THD + Noise	<0.1% @ 20 Hz to 20 kHz at nominal level
S/N	>90 dB at maximum balanced output (unweighted)
Crosstalk	≤-80 dB @ 1 kHz, fully loaded
Stereo channel separation	>80 dB @ 1 kHz
Sampling rates	32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
Bit depths	16, 20, 24 bit
Audio output
Number/signal type	1 analog stereo (2-channel), balanced/unbalanced (UCS SR 501) 1 digital audio, embedded with HDMI output (UCS SR 501 and UCS T 503)
Connectors
Analog stereo	(1) 3.5 mm captive screw connector, 5 pole, 3 pole
Digital audio	(1) female HDMI type A (shared with video output)
Supported formats (HDMI)	LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos®, Dolby® TrueHD, Dolby Digital Plus™, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio™, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel
Impedance
Analog	50 ohms unbalanced, 100 ohms balanced
Maximum level (Hi-Z)	>+12 dBV balanced; +6 dBV unbalanced
Gain error	±0.5 dB channel to channel
USB — UCS T 503 transmitter
USB-C features supported	DisplayPort alt-mode video (2-lane, 4-lane) USB data  USB-C power delivery
USB Max data rates	Up to USB 10Gbps
Data transfer types	Bulk, Control, Interrupt, and Isochronous
Maximum built-in USB hubs	2
Minimum built-in USB hubs	1
Optional built-in USB hubs	0
NOTE     The selected USB host will see a total hub layer of three, with the transmitter and receiver connected as a system, two from the transmitter and one from the receiver. The minimum hub layer is one from the physical hub on each endpoint. Please see the UCS 504 User Guide for more details.
USB host ports — UCS T 503 transmitter
Number/signal type	3 USB
Connectors	2 female USB 3.2 type B 1 female USB 3.2 type C
USB Host support	xHCI (USB 3.2) EHCI (USB 2.0) OHCI/UHCI (USB 1.1)
USB-C power delivery	Up to 60 watts power delivery at the following power profiles: (15 W) 5 VDC @ up to 3 A (27 W) 9 VDC @ up to 3 A (36 W) 12 VDC @ up to 3 A (45 W) 15 VDC @ up to 3 A (60 W) 20 VDC @ up to 3 A
USB device ports — UCS T 503 transmitter
Number/signal type	4 USB
Connectors	1 female USB 3.2 type A (Link to Rx) 3 female USB 2.0 type A 1 female USB 2.0 RJ-45 (Twisted Pair Extension Port)
USB standards	USB 3.2 USB 2.0 USB 1.x
USB Max data rates	Up to High speed (480 Mbps), local USB 2.0 device ports and twisted pair extension port Up to USB 10Gbps, local 10G Link to Rx
Available USB device power	USB-A 3.2: 900 mA (Link to Rx) USB-A 2.0: 500 mA/port
USB — UCS SR 501 receiver
USB-C features supported	USB data
USB Max data rates	Up to USB 10Gbps
Data transfer types	Bulk, Control, Interrupt, and Isochronous
Maximum built-in USB hubs	1
Minimum built-in USB hubs	1
Optional built-in hubs	0
NOTE     The selected USB host will see a total hub layer of three, with the transmitter and receiver connected as a system, two from the transmitter and one from the receiver. The minimum hub layer is one from the physical hub on each endpoint. Please see the UCS 504 User Guide for more details.
USB host ports — UCS SR 501 receiver
Number/signal type	2 USB
Connectors	1 female USB 3.2 type C (Link to Tx) 1 female USB 3.2 type B 1 female USB 2.0 RJ-45 (Twisted Pair Extension Port)
USB Host support	xHCI (USB 3.2) EHCI (USB 2.0) OHCI/UHCI (USB 1.1)
NOTE     The Twisted Pair Extension between the transmitter and receiver only supports USB 2.0. To support USB 3.2 extension between the transmitter and receiver, a USB 3.2 cable must be connected between the USB 3.2 device port of the transmitter (Link to Rx) and USB-C host port of the receiver (Link to Tx).
USB device ports — UCS SR 501 receiver
Number/signal type	3 USB
Connectors	1 female USB 3.2 type A 2 female USB 2.0 type A
USB standards	USB 3.2 USB 2.0 USB 1.x
USB Max data rates	Up to High speed (480 Mbps), local USB 2.0 ports Up to USB 10Gbps, local 10G link to Rx
Available USB power	USB-A 3.2: 900 mA USB-A 2.0: 500 mA/port
Interconnection between transmitter and receiver — USB
Connectors	1 female RJ-45 1 USB-A to USB-C
Termination standard	T568B
Signal transmission distance	RJ-45: 330' (100 m) USB: Up to 100' (30.4 m)
NOTE     For USB 10Gbps extension support a USBA-C cable supporting 10 Gbps of USB data should be used.
Communications
Transmitter
Quantity/type	1 female USB-C on front panel
Control standard	IP over USB (RNDIS)
Contact/tally ports	5 sets (2 pins each) of contact and tally ports 1 set (1 pin each) of +V and G Tally output power +5 VDC, 0.2 A
Receiver
USB
Quantity/type	1 female USB-C on front panel
Control standard	IP over USB (RNDIS)
Serial
Serial control port	1 bidirectional RS-232
Connector	(1) 3.5 mm captive screw connector, 5 pole
Baud rate and protocol (RS-232)	300 to 115200 baud (9600 baud = default) 8 (default) or 7 data bits 1 (default) or 2 stop bits No parity (default), even, or odd parity
NOTE     The 3 pole ports support software flow control. The default for both types of ports is no flow control.
IR/serial
Quantity/type	1 programmable: unidirectional RS-232 (±5 V), or TTL level (0 to 5 V) infrared (carrier and non-carrier) up to 300 kHz
Connectors	(1) 3.5 mm captive screw connector, 2 pole
Baud rate and protocol (RS-232)	300 to 115200 baud (9600 baud = default) 8 (default) or 7 data bits 1 (default) or 2 stop bits No parity (default), even, or odd parity
Pin configuration	For each port, Pin 1 = Signal, 2 = Gnd
IR output carrier frequency	30 kHz to 300 kHz
IR learning carrier frequency	30 kHz to 300 kHz
IR learning capture distance	2" (5.1 cm) to 12" (30.5 cm) from the front panel
IR/serial, on 5 pole captive screw	Pin 4 = Signal, 5 = Gnd
Digital I/O
Quantity/type	2 digital input/output (configurable)
Connector	(1) 3.5 mm captive screw connector, 3 pole
Digital inputs
Input voltage range	0 to 24 VDC, clamped at +30 VDC
Input impedance	>10k ohms
Programmable pullup	1k ohms to +5 VDC
Threshold low to high	Programmable range: 2.8 VDC
Threshold high to low	Programmable range: 2.0 VDC
Digital outputs	250 mA sink from 24 VDC max.
Pin configuration	1, 2 = Digital I/Os, 1, 2, 3 = Gnd
Transmitter/Receiver
Ethernet control port
Ethernet data rate	10/100Base-T, half/full duplex with auto detect
Ethernet protocol	DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
Default LAN settings	Link speed and duplex level = autodetected IP address = 169.168.254.250 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = off DNS = 127.0.0.0
Program control	Extron Product Control Software (PCS) Extron Simple Instruction Set (SIS™)
General
Power supply
Transmitter	Internal Input: 100 - 240 VAC, 50 - 60 Hz
Receiver	External (included) Input: 100 - 240 VAC, 50 - 60 Hz Output: 12 VDC, 4.2 A, 50 watts
Power consumption
Transmitter	92.4 watts
Receiver
Device	28.5 watts
Device and power supply	31.1watts
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling
Transmitter	2 fans, air flows from front to rear
Receiver	2 fans, air flows from top to side
Thermal dissipation
Transmitter	102.5 BTU/hour
Receiver
Device	67.4 BTU/hour
Device and power supply	83.8 BTU/hour
USB-C power delivery	5 VDC @ up to 3 A 9 VDC @ up to 3 A 12 VDC @ up to 3 A 15 VDC @ up to 3 A 20 VDC @ up to 3 A
Mounting
Rack mount	Yes, with optional 1U rack shelf
Furniture mount	Yes, with optional under-desk mounting kit
Enclosure type	Metal
Enclosure dimensions
Transmitter	1.75" H x 8.75" W x 8.5" D (1U high, half rack wide) (44 mm H x 222 mm W x 216 mm D) (Depth includes connectors.)
Receiver	1.0" H x 8.75" W x 8.5" D (1 inch high, half rack wide) (25 mm H x 222 mm W x 216 mm D) (Depth includes connectors.)
Product weight
Transmitter	4.1 lbs (1.9 kg)
Receiver	2.0 lbs (0.9 kg)
Regulatory compliance	CE, C-tick, c-UL, UL, FCC Class A, ICES, VCCI, RoHS, WEEE
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(6525-D12)
