Extron SYF BNCF 15-pin HD Female to BNC Female Mini High Resolution Cables 3' (90 cm)
Extron SYF BNCF 15-pin HD Female to BNC Female Mini High Resolution Cables 3' (90 cm) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron SYF BNCF 15-pin HD Female to BNC Female Mini High Resolution...

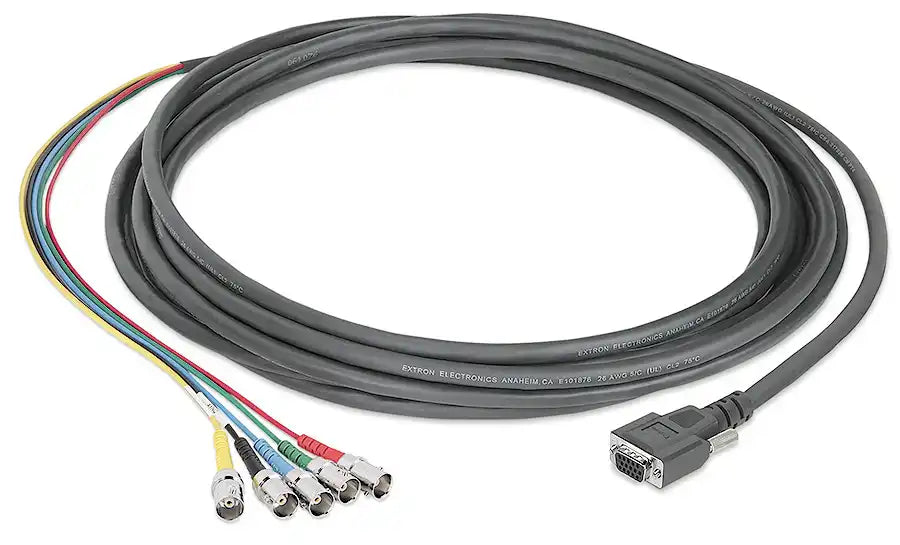

The Extron SYF BNCF Series cable assemblies utilize Extron MHR-5 mini high-resolution cable terminated with a 15-pin HD female connector on one end and five color-coded female BNC connectors on the other. These cables are engineered for high-performance transmission of analog computer video signals, including RGBHV, in professional AV installations. The smaller diameter and increased flexibility compared to standard coax cables make them easier to pull through conduits, furniture, or tight spaces while maintaining excellent signal quality and low attenuation.
Ideal for connecting VGA-equipped sources like computers or graphics cards to projectors, monitors, switchers, distribution amplifiers, or matrix switchers with BNC inputs, the cables support crisp analog video in classrooms, conference rooms, control centers, and presentation environments. The 15-pin HD female connector accepts standard VGA male cables, while the five 75 ohm BNC female connectors (R, G, B, H, V) provide secure, professional-grade termination with color-coding for accurate signal assignment.
Features Chart
| Feature | Benefit |
|---|---|
| 15-pin HD Female to 5 BNC Female | Connects VGA male cables to BNC-terminated equipment |
| Extron MHR-5 Mini High-Resolution Cable | Delivers superior analog video performance with low crosstalk |
| Smaller Diameter and Flexible Design | Easier pulling and routing in confined spaces or conduits |
| Color-Coded BNC Connectors (R,G,B,H,V) | Simplifies correct RGBHV signal assignment and reduces errors |
| 75 Ohm BNC Female Connectors | Ensures impedance-matched, high-quality connections for pro AV |
| VGA Shell Grounded for ESD Protection | Provides electrostatic discharge protection for connected devices |
| NEC CL2 Rated | Suitable for in-wall or general building installations |
| High-Quality Molded Connectors | Offers durability and reliable, low-loss terminations |
Specifications Table
| Specification | Details |
|---|---|
| Connector A | 15-pin HD Female (VGA) |
| Connector B | Five 75 ohm BNC Female (color-coded R, G, B, H, V) |
| Cable Type | Mini High Resolution (MHR-5) |
| Conductor Gauge | Appropriate for MHR-5 (high-res coax) |
| Shielding | High-performance shielding per conductor |
| Compliance | NEC CL2 rated; ESD protected VGA shell |
| Applications | Analog computer video from VGA source to BNC display/equipment |
| Compatibility | Standard VGA male cables; BNC-terminated AV devices |
Compare Chart
| Aspect | Extron SYF BNCF | Extron SY VGAM-RGBHVF | Kramer VGA to 5 BNC Female |
|---|---|---|---|
| Connector A | 15-pin HD Female | 15-pin HD Male | VGA Male typical |
| Connector B | 5 BNC Female | 5 BNC Female | 5 BNC Female |
| Cable Construction | MHR-5 mini high-res | MHR-5 | Standard coax |
| Flexibility/Diameter | Smaller, more flexible | Standard MHR | Varies |
| ESD Protection | VGA shell grounded | Not specified | Varies |
| Rating | NEC CL2 | Varies | Often CL2 or plenum |
| Primary Use | VGA input to BNC equipment | VGA output to BNC equipment | General VGA to BNC breakout |
| Color-Coded BNC | Yes | Yes | Yes |
FAQ
- What is the main purpose of the SYF BNCF cables? They connect a standard VGA male cable (from a computer or source) to equipment with five BNC inputs for analog RGBHV video signals.
- How are the BNC connectors assigned? They are color-coded for red (R), green (G), blue (B), horizontal sync (H), and vertical sync (V) to ensure accurate RGBHV wiring.
- What makes these cables easier to install? The MHR-5 cable has a smaller diameter and greater flexibility than regular coax, simplifying pulling through conduits or tight spaces.
- Is the cable rated for in-wall use? Yes, it is NEC CL2 rated, suitable for in-wall or general building installations per applicable codes.
- Does it provide ESD protection? Yes, the VGA shell is grounded for electrostatic discharge protection on connected devices.
- What signal type is supported? These cables transmit high-performance analog computer video (RGBHV) signals reliably in professional AV setups.
