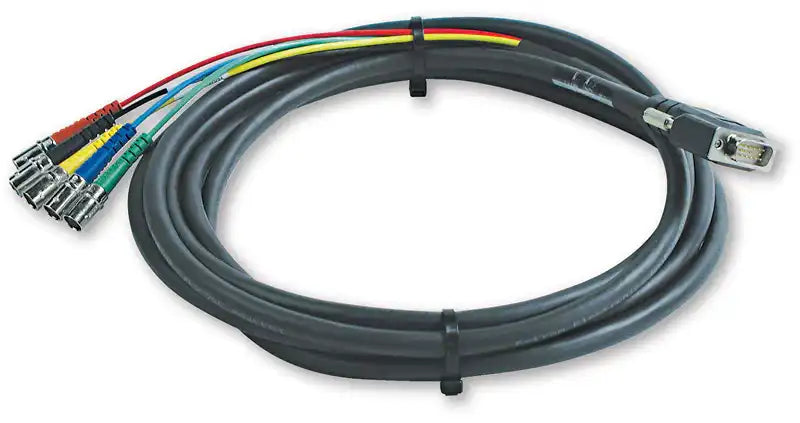

Extron SY VGAM-RGBHVF Male to 5 BNC Female Mini High Resolution Cables
The Extron SY VGAM-RGBHVF Series cables are high-performance breakout assemblies that convert a standard 15-pin HD VGA male connector to five color-coded female BNC connectors for analog RGBHV video signals. Built with Extron's premium MHR-5 mini high-resolution cable, these assemblies deliver superior analog video quality with low crosstalk, minimal attenuation, and excellent EMI/RFI rejection. The smaller diameter and increased flexibility of the MHR-5 cable make it easier to route through conduits, furniture, or tight installation spaces compared to traditional coax breakout cables.
Ideal for connecting VGA-equipped sources such as computers, laptops, or graphics workstations to professional AV equipment with BNC inputs—including projectors, monitors, switchers, distribution amplifiers, scalers, and matrix switchers—these cables support crisp, high-resolution analog video in classrooms, conference rooms, control centers, broadcast facilities, and presentation environments. The 15-pin HD male connector plugs directly into VGA outputs, while the five 75 ohm BNC female connectors (R, G, B, H, V) provide secure, professional-grade termination with color-coding for accurate signal assignment.
Features Chart
| Feature | Benefit |
|---|---|
| 15-pin HD Male to 5 BNC Female Breakout | Connects VGA sources directly to BNC-terminated equipment |
| Extron MHR-5 Mini High-Resolution Cable | Ensures superior analog RGBHV performance with low noise and crosstalk |
| Smaller Diameter & Flexible Design | Simplifies pulling and routing in confined spaces or conduits |
| Color-Coded BNC Connectors (R,G,B,H,V) | Enables quick, error-free assignment of RGBHV signals |
| 75 Ohm BNC Female Connectors | Provides impedance-matched, high-quality professional connections |
| High-Quality Molded VGA Connector | Offers durability, secure fit, and reliable signal integrity |
| NEC CL2 Rated | Suitable for in-wall or general building installations |
| Plug-and-Play Simplicity | No adapters or configuration needed for fast AV setups |
Specifications Table
| Specification | Details |
|---|---|
| Connector A | 15-pin HD Male (VGA) |
| Connector B | Five 75 ohm BNC Female (color-coded R, G, B, H, V) |
| Cable Type | Mini High Resolution (MHR-5) |
| Conductor Gauge | Optimized for MHR-5 high-res coax |
| Shielding | Triple shielding per conductor |
| Compliance | NEC CL2 rated |
| Applications | Analog RGBHV from VGA source to BNC display/equipment |
| Compatibility | Standard VGA outputs; BNC-terminated AV devices |
Compare Chart
| Aspect | Extron SY VGAM-RGBHVF | Extron SYF BNCF (Female) | Kramer VGA to 5 BNC Female |
|---|---|---|---|
| Connector A | 15-pin HD Male | 15-pin HD Female | VGA Male typical |
| Connector B | 5 BNC Female | 5 BNC Female | 5 BNC Female |
| Cable Construction | MHR-5 mini high-res | MHR-5 mini high-res | Standard coax |
| Flexibility/Diameter | Smaller, more flexible | Smaller, more flexible | Varies |
| Rating | NEC CL2 | NEC CL2 | Often CL2 or plenum |
| Primary Use | VGA output to BNC equipment | VGA input to BNC equipment | General VGA breakout |
| Color-Coded BNC | Yes | Yes | Yes |
| Extron Optimization | Yes | Yes | No |
FAQ
- What is the primary function of the SY VGAM-RGBHVF cables? They break out analog RGBHV video from a VGA male connector (source side) to five BNC female connectors for connection to professional AV equipment with BNC inputs.
- How are the BNC connectors labeled? They are color-coded for red (R), green (G), blue (B), horizontal sync (H), and vertical sync (V) to ensure accurate and quick signal assignment.
- What advantages does the MHR-5 cable offer? Its smaller diameter and greater flexibility make it easier to install in tight spaces, conduits, or furniture while maintaining high-quality analog video performance.
- Is this cable rated for in-wall installation? Yes, it is NEC CL2 rated, making it suitable for in-wall or general building use per applicable electrical codes.
- What resolutions are supported? These cables handle standard and extended analog VGA resolutions (up to 1920x1200 or equivalent) with excellent signal integrity in professional setups.
- Can these cables be used in reverse (BNC to VGA)? No, they are designed for VGA source output to BNC equipment input; reverse use is not recommended due to connector gender and signal direction considerations.
