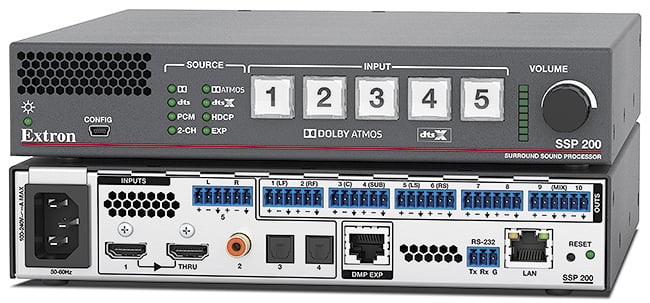

Extron SSP 200 Surround Sound Processor

Product Overview

The Extron SSP 200 is a high-performance Surround Sound Processor engineered specifically for Pro AV applications in corporate and commercial environments. This Extron surround sound processor automatically decodes Dolby and DTS audio formats from an HDMI source to discrete outputs, bringing immersive Dolby Atmos and DTS:X audio to boardrooms and auditoriums without the bulk of a consumer AV receiver.

Product Description

Consumer surround receivers are built for living rooms, not equipment racks — they are oversized, consumer-facing, and awkward to integrate into a professional control system. The SSP 200 solves that by putting HDMI-based surround decoding into a compact, half-rack 1U enclosure designed for commercial installation. It accepts one HDMI input with a loop-through output, decodes embedded Dolby and DTS soundtracks including the immersive Dolby Atmos and DTS:X formats, and distributes up to twelve channels of surround sound plus a stereo downmix across ten built-in analog line-level outputs. An upmix function synthesizes convincing multichannel audio from ordinary stereo content, which matters when a boardroom's source material is a stereo video conference rather than a cinema soundtrack. An EXP expansion port connects directly to Extron's DMP Series audio DSP processors, so the SSP 200 can hand its decoded channels off to a full digital signal processing chain for equalization, level control, and zone routing rather than operating as an isolated box. Control is available over RS-232 serial or a standard Ethernet connection using Extron's SIS command set, so the SSP 200 integrates into an existing control system rather than requiring a dedicated remote.

Key Features

• Dolby and DTS decoding — Automatically decodes Dolby and DTS formats, including Dolby Atmos and DTS:X, from an HDMI source.
• Ten built-in outputs — Distributes up to twelve channels of surround sound plus a stereo downmix across ten analog line-level outputs.
• Stereo upmix — Synthesizes multichannel surround sound from stereo content.
• DMP EXP port — Connects directly to Extron DMP Series audio DSP processors for further signal processing.
• Compact commercial form factor — Half-rack, 1U enclosure built for equipment racks rather than a living room.
• RS-232 and Ethernet control — Integrates into an existing control system using Extron SIS commands.

Typical Applications

• Boardrooms and executive briefing centers with immersive audio playback
• Auditoriums and large presentation spaces
• Corporate training rooms with cinema-grade content playback

Technical Specifications

Frequently Asked Questions

Does the SSP 200 need a separate DSP processor to work?
No, it operates standalone as a surround decoder with ten line-level outputs. The DMP EXP port is optional, for projects that also want Extron DMP Series DSP processing downstream.

Does it support Dolby Atmos and DTS:X?
Yes, both immersive formats are supported in addition to standard Dolby and DTS decoding.

What resolutions does the HDMI input support?
Up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling, at data rates up to 18 Gbps.

Can Creation Networks help design a boardroom or auditorium audio system around this?
Yes. As a certified Extron integrator, Creation Networks designs, commissions, and supports immersive audio systems end to end — see the full Extron catalog or contact our team for a system design consultation.
