Extron IPCP Pro S1 xi IPCP Pro xi Control Proc., LL UI Upgrade

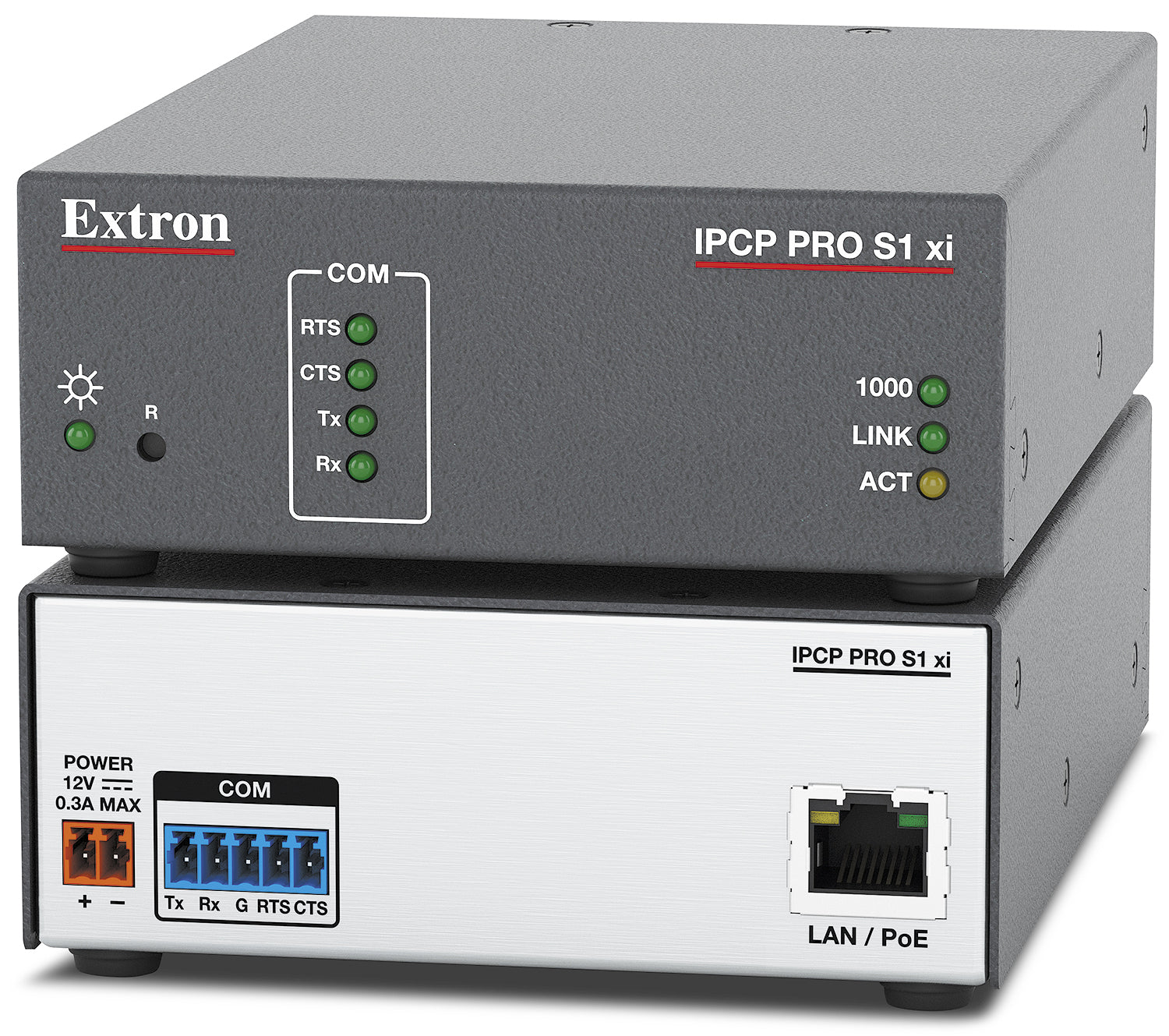

The Extron IPCP Pro S1 xi is a high-performance, compact control processor designed for centralized AV control in small to medium-size applications. It features enhanced performance with greater processing power and twice the memory of our IP Link Pro series. The IPCP Pro S1 xi also features advanced security standards and Gigabit Ethernet, which ensures compatibility with multiple TouchLink® Pro touchpanels, Network Button Panels, and IPL EXP expansion interfaces using a standard network infrastructure. The IPCP Pro S1 xi is an ideal choice for AV applications that require a powerful yet compact control processor.
The Extron IPCP Pro S1 xi can be configured using Global Configurator® Plus or Global Configurator Professional software or programmed using Extron ControlScript programming. For enterprise-wide applications, GlobalViewer® Enterprise can provide centralized AV resource monitoring, management, and control over a computer network. In addition, the IPCP Pro S1 xi supports Extron LinkLicense®, which further enhances the capabilities of Extron Pro Series control systems.
Features
- Supports TouchLink Pro touchpanels, Network Button Panels, and IPL EXP expansion interfaces
- Supports secure industry standard communications protocols — All IP Link Pro models use industry standard communication protocols, including HTTP (insecure), HTTPS, SSH, SFTP, SMTP, NTP, Discovery Service, DHCP, DNS, ICMP, 802.1X, and IPv4.
- Ethernet monitoring and control — Manage, monitor, and control AV devices using a standard Ethernet network.
- One bidirectional RS-232/RS-422/RS-485 serial port with hardware and software handshaking
- Supports 10/100/1000Base-T
- Supports popular BMS – Building Management System protocols, such as BACnet, KNX, and DALI — These protocols allow for centralized monitoring and control of mechanical and electrical systems that include HVAC, lighting, power, fire, and security.
- Supports LinkLicense — Extron LinkLicense unlocks features that add convenience, expand system functionality, and enhance the capabilities of Extron products.
- Central Deployment - Use the primary control processor to deploy all system files, configurations and programs — Quickly deploy the control system by uploading all project files to the primary control processor. The primary control processor will automatically transfer files to the other touchpanels, control processors and button panels in that system once they come online.
- Supports Ethernet-controllable devices — Allows for control of multiple Ethernet-enabled AV devices such as displays, switchers, and sources.
- Automatic clock synchronization allows touchpanel to display the accurate time and date
- Supports control system synchronization — Synchronization will allow users to retain and recover the state of their configured endpoints in case of network or power failure.
- Front panel port status indicators
- Multi-level password protection — Allows security to be set based on user roles.
- Fully customizable using Extron control system software — GUI Designer combined with Global Configurator Plus, Global Configurator Professional, or ControlScript programming.
- Library of Pro Series device drivers and modules for use with Global Configurator and ControlScript programming, respectively — Start and execute projects quickly using Extron Global Configurator device drivers and Extron device modules to control various display and source devices, such as projectors, flat-panel displays, and Blu-ray players. Extron offers fully tested Ethernet, serial, and IR device drivers and modules.
- Supports 802.1X Authentication — Provides support for IEEE 802.1X authentication standard for port-based Network Access Control.
- Compact, 1U, quarter rack width metal enclosure
- External Extron Everlast™ power supply included, replacement part #70-1174-01 — Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption
- Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty
- TAA Compliant version available — Please inform your local Extron representative if your order requires compliance with TAA regulations.
| IPCP Pro S1 xi | |||
| Memory | |||
|---|---|---|---|
| |
1 GB | ||
| |
8 GB | ||
| Software | |||
| |
Global Configurator® Plus and Professional | ||
| |
Global Scripter® | ||
| |
Extron Control | ||
| |
GlobalViewer® Enterprise | ||
| |
Toolbelt, embedded web page | ||
| Hardware user interface | |||
| |
TouchLink® Pro touchpanels, Network Button Panels, or eBUS® button panels | ||
| Ethernet | |||
| |
1: 1 LAN | ||
| |
1 female RJ-45 connector | ||
| |
10/100/1000Base-T, half/full duplex with autodetect | ||
| |
ARP, DHCP, DNS, HTTP, HTTPS (redirect), ICMP, IEEE 802.1X , NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP | ||
| |
Link speed and duplex level = autodetected IP address = 192.168.254.250 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = off DNS = 127.0.0.1 |
||
| Serial | |||
| |
1 bidirectional RS-232, RS-422, RS-485 | ||
| |
(1) 3.5 mm captive screw connector, 5 pole | ||
| |
300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits; no parity (default), even, or odd parity |
||
|
|||
| |
|||
| Serial, 5-pole captive screw | |||
| |
Pin 1 = Tx, 2 = Rx, 3 = Gnd, 4 = RTS, 5 = CTS | ||
| |
Pin 1 = Tx-, 2 = Rx-, 3 = Gnd, 4 = Tx+, 5 = Rx+ | ||
| |
Pins 1 and 2 (tied together) = data-, 3 = Gnd, 4 and 5 (tied together) = data+ | ||
| General | |||
| |
External, included Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 0.5 A, 6 watts |
||
| |
12 VDC, 1 A, 12 watts, max. Or Power over Ethernet (PoE) (complies with PoE 802.3af, class 3) |
||
| |
|||
| |
2.2 watts, 12 VDC | ||
| |
2.8 watts, 100-240 VAC, 50-60 Hz | ||
| |
Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
||
| |
Convection, no vents | ||
| |
|||
| |
7.4 BTU/ hr | ||
| |
9.4 BTU/hr | ||
| |
|||
| |
Yes, with optional 1U rack shelf | ||
| |
Yes, with optional bracket kit | ||
| |
Metal | ||
| |
1.7" H x 4.3" W x 6.0" D (1U high, quarter rack wide) (43 mm H x 109 mm W x 152 mm D) (Depth excludes connectors.) |
||
| |
0.7 lbs (0.3 kg) | ||
| |
CE, C-Tick, c-UL, FCC Class A, ICES, VCCI UL Listed for use in plenum air handling spaces: meets UL 2043 for heat and smoke release. Complies with the appropriate requirements of RoHS, WEEE |
||
| |
3 years parts and labor | ||
| |
7 years parts and labor | ||
|
|||
|
|||
| (6119-D3) | |||
| Shipping Dimensions and Weights | ||||
|---|---|---|---|---|
| Part # | Height | Width | Depth | Weight |
| 60-1979-01 | 2.94" (7.5 cm) | 10.5" (26.7 cm) | 7.5" (19.1 cm) | 1.95 lbs (0.88 kg) |
| 60-1979-01A | 3.0" (7.6 cm) | 7.5" (19.1 cm) | 10.5" (26.7 cm) | 1.55 lbs (0.7 kg) |
