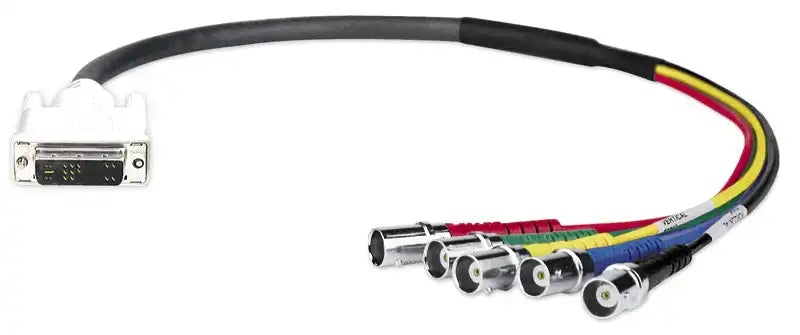

Extron DVI-A to BNC Adapter Cable - Analog RGBHV Breakout 6" pigtail
Extron DVI-A to BNC Adapter Cable - Analog RGBHV Breakout 6" pigtail is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron DVI-A to BNC Adapter Cable - Analog RGBHV Breakout 6" p...
The Extron DVI-A to BNC Adapter Cable converts analog RGBHV signals from a DVI-A (analog-only) connector to five separate BNC connectors for red, green, blue, horizontal sync, and vertical sync. This breakout cable enables integration of DVI-A equipped sources—such as legacy graphics cards, computers, or signal generators—with professional AV equipment featuring BNC inputs, including switchers, distribution amplifiers, matrix switchers, scalers, and projectors in broadcast, control rooms, command centers, medical imaging, and high-end presentation environments requiring analog component or RGBHV connectivity.
The adapter features a DVI-A male connector on one end and five color-coded BNC male connectors (R, G, B, H, V) on the other, with precise impedance matching and high-quality shielding to preserve signal integrity and minimize noise or crosstalk. Its compact, durable construction supports plug-and-play operation without external power, making it an efficient solution for integrators bridging analog DVI sources to BNC-terminated infrastructure while maintaining excellent video quality for resolutions up to 1920x1200 or equivalent analog formats.
Features Chart
| Feature | Benefit |
|---|---|
| DVI-A Male to 5 BNC Male Breakout | Converts analog RGBHV from DVI-A to separate BNC for pro AV equipment |
| Color-Coded BNC Connectors (R,G,B,H,V) | Simplifies correct signal assignment and reduces termination errors |
| High-Quality Analog Signal Path | Maintains sharp, noise-free video with minimal degradation |
| Precise Impedance Matching | Ensures optimal signal transfer and compatibility with 75-ohm systems |
| Shielded Construction | Reduces EMI/RFI interference for clean analog transmission |
| Plug-and-Play Operation | No external power or configuration required |
| Compact and Durable Design | Easy integration in racks, panels, or desktop setups |
| Supports High Resolutions | Handles up to 1920x1200 analog video reliably |
Specifications Table
| Specification | Details |
|---|---|
| Connector A | DVI-A Male (analog-only, 12+5 pins) |
| Connector B | Five BNC Male (R, G, B, H, V; color-coded) |
| Cable Type | Analog RGBHV breakout adapter |
| Signal Type | Analog RGBHV (red, green, blue, horizontal sync, vertical sync) |
| Maximum Resolution | Up to 1920 x 1200 @ 60 Hz (analog) |
| Impedance | 75 ohms |
| Applications | Analog DVI source to BNC-equipped switchers/DA/matrix |
| Compatibility | DVI-A analog outputs; BNC-terminated AV devices |
| Power Requirement | None (passive) |
Compare Chart
| Aspect | Extron DVI-A to BNC Adapter | Extron VGA to BNC Adapter | Kramer DVI-A to 5 BNC Cable |
|---|---|---|---|
| Connector A | DVI-A Male | 15-pin HD Male | DVI-A Male |
| Connector B | 5 BNC Male (R,G,B,H,V) | 5 BNC Male | 5 BNC Male |
| Signal Type | Analog RGBHV | Analog RGBHV | Analog RGBHV |
| Length | Short adapter cable | Varies | Varies, often longer |
| Color-Coded BNC | Yes | Yes | Yes |
| Primary Use | Legacy DVI-A to BNC bridging | Standard VGA to BNC | General DVI-A breakout |
| Shielding/Quality | High-quality shielded | High-quality | Professional |
| Extron Optimization | Yes | Yes | No |
FAQ
- What is the main function of the DVI-A to BNC adapter cable? It breaks out analog RGBHV signals from a DVI-A connector to five separate BNC connectors for connection to professional AV equipment with BNC inputs.
- Which signals are carried on the BNC connectors? The five BNC connectors handle red (R), green (G), blue (B), horizontal sync (H), and vertical sync (V) for full analog RGBHV transmission.
- What resolutions does this adapter support? It supports analog video up to 1920x1200 @ 60 Hz or equivalent formats, depending on source and display capabilities.
- Is external power required? No, the adapter is fully passive and requires no power source.
- Are the BNC connectors color-coded? Yes, they are color-coded for R, G, B, H, and V to make correct signal assignment quick and error-free.
- What equipment is typically compatible? It works with any DVI-A analog output (e.g., legacy graphics cards or computers) and BNC-equipped devices like Extron switchers, matrix switchers, distribution amplifiers, or scalers.
