Extron DTP2 R 211 4K/60 HDMI DTP2 Receiver with Audio De-Embedding

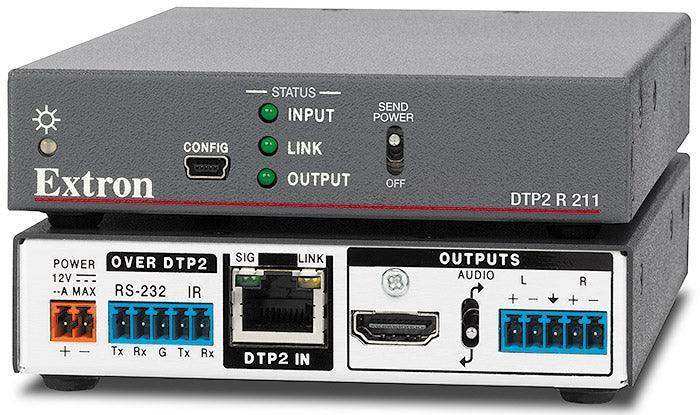

The Extron DTP2 R 211 is a long-distance digital twisted pair receiver that receives HDMI, analog audio, and bidirectional RS-232 and IR control signals up to 330 feet (100 meters) over shielded CATx cable from Extron DTP2-enabled products. Supporting 4K/60 at 4:4:4 chroma sampling and HDCP 2.3, with stereo audio de-embedding and remote power capability, it is designed for discreet placement behind flat-panel displays, in lecterns, and in equipment racks as part of a commercial DTP2 AV distribution system. Order code 60-1631-63 — confirm configuration details with Creation Networks.
Product Overview
The Extron DTP2 R 211 (order code 60-1631-63) is a 4K/60 HDMI DTP2 receiver for commercial AV installations requiring long-distance signal extension over shielded CATx infrastructure. It receives HDMI video at resolutions up to 4K/60 at 4:4:4 from any DTP2-enabled Extron product — including DTP CrossPoint matrix switchers and the IN1808 presentation switcher — across runs up to 330 feet (100 m). The stereo audio output is selectable between de-embedded digital audio or pass-through analog, delivered on a captive screw connector without a separate audio cable run. The quarter rack width, 1-inch high metal enclosure and remote power capability make it practical for behind-display and lectern installations where space and cabling are constrained.
Product Description
The DTP2 R 211 is the display-end component in an Extron DTP2 signal extension system, receiving the full HDMI 2.0b signal — including HDR, Deep Color up to 12-bit, HD lossless audio formats, and CEC pass-through — over a single shielded twisted pair cable run. HDCP 2.3 compliance maintains content protection interoperability with all earlier HDCP versions, and HDCP Visual Confirmation outputs a full-screen green signal if protected content reaches a non-compliant display. EDID Minder continuously maintains DDC communication between the source and display across the extension link to prevent signal handshake failures on power-up or input switch. Bidirectional RS-232 and IR pass-through allow a control system to operate display devices over the same cable without additional cabling. The DTP2 R 211 can be remotely powered by a DTP2-enabled source product over the twisted pair connection, and can be configured to supply power to a connected DTP2 transmitter for a shared single-supply installation. Extron recommends XTP DTP 24 shielded twisted pair cable, certified to 475 MHz and engineered for DTP signal integrity. Available at Creation Networks.
Key Features
- 330-Foot (100 m) HDMI Extension over Shielded CATx — Receives HDMI video, analog audio, and bidirectional RS-232/IR control over a single shielded CATx cable run for economical long-distance AV distribution.
- 4K/60 at 4:4:4 Support — Supports 4K/60 at full 4:4:4 chroma sampling when paired with a matching DTP2-enabled source product.
- Stereo Audio De-Embedding — Captive screw stereo audio output selectable between de-embedded digital audio or pass-through analog, delivered without a separate audio cable run.
- HDCP 2.3 Compliant — Ensures display of content-protected 4K video with backward interoperability with earlier HDCP versions.
- HDR and Deep Color Support — Full HDMI 2.0b compliance delivers HDR, Deep Color up to 12-bit, 3D, and HD lossless audio formats.
- Remote Power Capability — Can be powered by a DTP2-enabled product over the twisted pair connection and configured to supply power to a connected DTP2 transmitter for shared single-supply installations.
- Bidirectional RS-232 and IR Pass-Through — Transmits control signals alongside video for remote display operation without additional cabling.
- EDID Minder — Continuously maintains DDC communication across the DTP2 link to prevent handshake failures at power-up or input change.
- Quarter Rack Width, 1-Inch High Metal Enclosure — Low-profile design for discreet behind-display, lectern, or rack installation.
- JITC Certified — Completed interoperability and information assurance testing for government and mission-critical environments.
- LockIt HDMI Cable Lacing Brackets Included — Secures HDMI connector at the output to prevent disconnection in permanent installations.
Technical Specifications
| Specification | Value |
|---|---|
| Input | 1x DTP2 twisted pair (RJ-45) |
| Outputs | 1x HDMI; 1x stereo audio (captive screw, balanced or unbalanced) |
| Maximum Video Resolution | 4K/60 at 4:4:4 (requires DTP2-enabled source) |
| HDMI Specification | HDMI 2.0b — up to 18 Gbps; HDR; Deep Color 12-bit; 3D; HD lossless audio; CEC |
| HDCP Compliance | HDCP 2.3 (backwards compatible) |
| Transmission Distance | 330 ft (100 m) over shielded CATx |
| Recommended Cable | Extron XTP DTP 24 (SF/UTP, 24 AWG, certified to 475 MHz) |
| Audio Output | Stereo analog, de-embedded or pass-through (selectable) |
| Control Pass-Through | Bidirectional RS-232 and IR |
| Power | Remote power from DTP2-enabled product; optional external Everlast PSU (part #70-1174-01) |
| Enclosure | 1 in (2.5 cm) high, quarter rack width, metal |
| SKU | 60-1631-63 |
| Certifications | HDCP 2.3, JITC |
