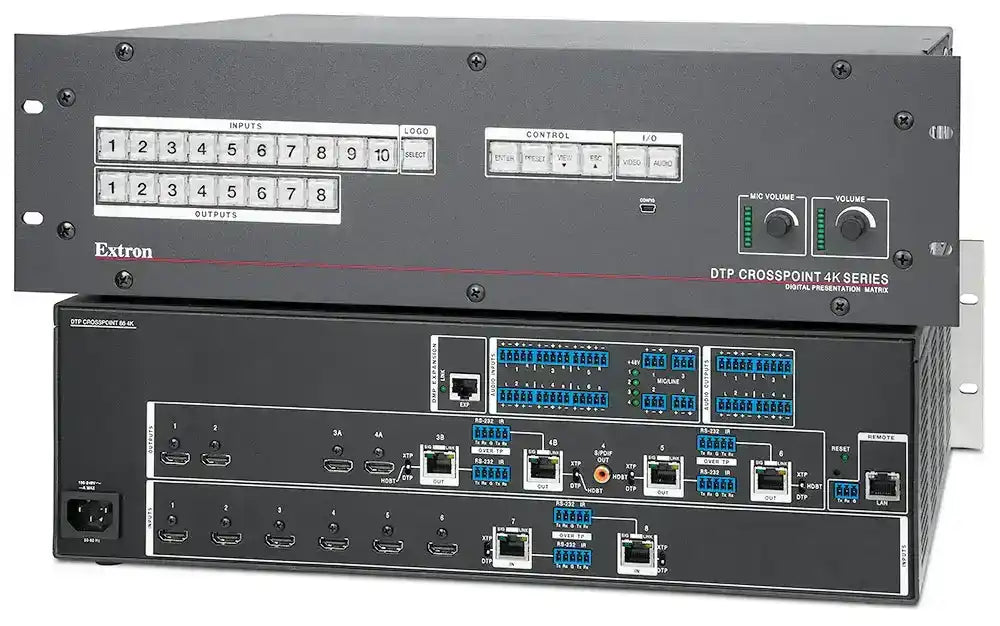

Extron DTP CrossPoint 86 4K IPCP Q MA 70 100 Watt 70 V Mono Amp, AV LAN

Product Overview

The Extron DTP CrossPoint 86 4K IPCP Q MA 70 is an 8x6 4K presentation matrix switcher that integrates DTP signal extension, Vector 4K scaling, ProDSP audio processing with AEC, a 100W mono Class D amplifier at 70V, and the IPCP Pro 355MQ xi quad-core control processor in a single 3U rack-mount enclosure. Six HDMI and two DTP inputs route to two non-scaled HDMI and four independently scaled DTP outputs, with DTP extension to 330 feet over shielded CATx. Available at Creation Networks.

Product Description

The DTP CrossPoint 86 4K IPCP Q MA 70 consolidates 8x6 4K matrix switching, DTP signal extension, ProDSP conferencing audio, 70V sound reinforcement, and full AV system control into a single 3U rack unit — eliminating the need for a separate matrix switcher, DSP, amplifier, and control processor. The 8x6 matrix routes six HDMI and two DTP inputs to two non-scaled HDMI and four independently scaled DTP outputs, with the Vector 4K engine delivering 30-bit precision scaling at 4:4:4 chroma sampling per output. DTP outputs extend video, audio, and bidirectional RS-232/IR up to 330 feet over shielded CATx to DTP 230/330 endpoints, XTP CrossPoint switchers, and HDBaseT displays. ProDSP provides 32/64-bit floating point processing with four-channel AEC, eight-group automixer, four mic/line inputs with 48V phantom power, and 32 configurable presets. The integrated 100W mono Class D amplifier at 70V uses Extron CDRS ripple suppression for clean sound reinforcement to ceiling speaker distribution systems. The IPCP Pro 355MQ xi quad-core control processor provides 2 GB RAM, 8 GB Flash, a three-port isolated AV LAN switch, three serial ports, four digital I/O, four relays, and two IR ports for complete room automation. Available at Creation Networks.

Key Features

• 8x6 4K Matrix Switcher — Routes six HDMI and two DTP twisted pair inputs to two non-scaled HDMI and four independently scaled DTP outputs in a 3U full-rack-width enclosure for multi-display presentation environments.
• Vector 4K Scaling Engine — Independent per-output 4K scaling on all four DTP outputs using 30-bit precision processing and 4:4:4 chroma sampling; supports resolutions from 640x480 through 4K (3840x2160 and 4096x2160).
• Four Scaled DTP Outputs — Two additional scaled outputs versus the 84 4K model; supports up to four remote displays via DTP 230/330 endpoints or HDBaseT-enabled displays from a single rack unit.
• DTP Signal Extension to 330 Feet — Two DTP inputs and four DTP outputs extend HDMI, DisplayPort, DVI, or VGA signals up to 330 feet (100 m) over shielded CATx with embedded audio, bidirectional RS-232, IR, and remote power on the same cable.
• HDBaseT-Compatible DTP Outputs — All four DTP outputs can be configured for HDBaseT mode to drive compatible displays directly without a dedicated receiver.
• ProDSP 32/64-Bit Floating Point Audio Processor — Full DSP with 24-bit/48 kHz conversion, EQ, dynamics, delay, feedback suppression, ducking, group masters, and matrix mixing.
• Four-Channel Acoustic Echo Cancellation (AEC) — Independent AEC per channel for clear conferencing audio in double-talk conditions and with wireless microphones in use at the near end.
• Eight-Group Automixer — Gated and gain-sharing modes with per-channel adjustable threshold and timing for natural microphone management in multi-mic rooms.
• Four Mic/Line Inputs with 48V Phantom Power — Accepts condenser microphones; matrix mixable into any output bus with -18 dB to +80 dB input gain adjustment in 0.1 dB steps.
• Integrated 100W Class D Mono Amplifier at 70V — Drives 70V ceiling speaker distribution systems using Extron CDRS ripple suppression for clean output without a separate rack-mount amplifier.
• IPCP Pro 355MQ xi Quad-Core Control Processor — Built-in processor with 2 GB RAM, 8 GB Flash, three-port isolated AV LAN switch, three serial ports, four digital I/O, four relays, and two IR ports for complete room automation.
• Three-Port Isolated AV LAN Switch — Keeps AV device traffic on a dedicated network segment, protecting endpoints from corporate network intrusion while enabling Extron PCS and DSP Configurator access from the LAN.
• EDID Minder, Key Minder, and SpeedSwitch — EDID Minder ensures reliable source power-up; Key Minder maintains continuous HDCP encryption; SpeedSwitch delivers fast switching for HDCP-protected content.
• Digital Audio Expansion Port (EXP) — RJ-45 port for 16x16 I/O channel transport to an Extron DMP 128 Plus processor over shielded CAT 6 (up to 10 m) for scalable audio in larger installations.
• QS-FPC Front Panel Controller — Tri-color backlit discrete input/output buttons; front panel security lockout prevents unauthorized switching.
• Extron Everlast Internal Power Supply — Universal power compatibility with 7-year parts and labor warranty.

Technical Specifications

Typical Application

The DTP CrossPoint 86 4K IPCP Q MA 70 is deployed in corporate conference rooms, government meeting facilities, divisible training rooms, and lecture halls where 4K source switching across six displays, DTP signal extension, conferencing DSP with AEC, 70V sound reinforcement, and programmable AV control are required from a single 3U rack device. It replaces separate matrix switcher, DSP, 70V amplifier, and control processor components.

Spec Sheet PDF Download

Download the Extron DTP CrossPoint 86 4K Series Spec Sheet (PDF)
