Extron DisplayPort Series DPMM Cables - DP Male to Male 25' (7....

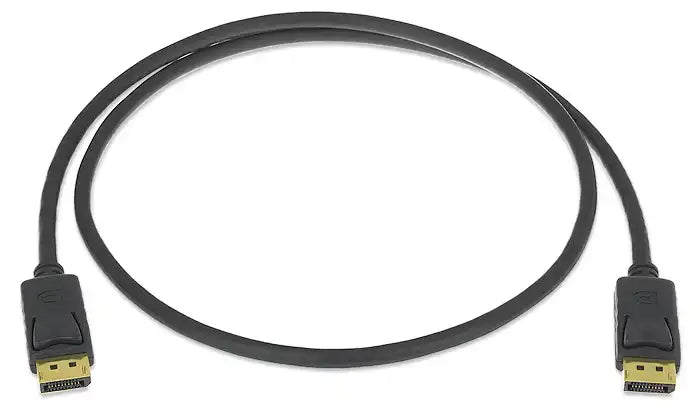

Extron DisplayPort Series cables deliver reliable, high-performance digital video connections between DisplayPort-enabled sources and displays, fully compliant with the DisplayPort 1.2 standard. These cables support demanding applications with flawless transmission of high-resolution signals, including 4K content at elevated refresh rates, deeper color depths, and higher bandwidth requirements. With latching DisplayPort male connectors on both ends, they ensure a secure, locked connection that prevents accidental disconnection in professional AV setups such as control rooms, conference systems, digital signage, broadcast environments, and high-end presentation installations.
Constructed with 28 AWG copper wire for optimal signal integrity, the cables maintain excellent performance across available lengths: shorter runs (3' and 12') handle resolutions up to 4K/60 Hz (4096x2160), while the longer 25' version supports up to 4K/30 Hz. This versatility makes them ideal for integrators needing dependable DisplayPort interconnects that preserve video quality without compression or artifacts, compatible with a broad range of DisplayPort sources like computers, media players, and graphics workstations connected to monitors, projectors, or video walls.
Features Chart
| Feature | Benefit |
|---|---|
| DisplayPort 1.2 Compliance | Supports advanced features like higher bandwidth and multi-stream transport |
| 4K Verified Performance | Guarantees reliable transmission of 4K content at specified resolutions |
| Latching DisplayPort Connectors | Provides secure, locked connections to prevent accidental unplugging |
| 28 AWG Copper Wire Construction | Ensures low attenuation and consistent signal quality over distance |
| Resolutions up to 4K/60 Hz | Handles high-refresh-rate 4K video on shorter lengths for crisp visuals |
| Multiple Length Options | Offers flexibility for compact or extended installations without excess |
| Male to Male Configuration | Direct source-to-display connectivity for standard DisplayPort setups |
| Professional AV-Grade Build | Built for durability and reliability in demanding commercial environments |
Specifications Table
| Specification | Details |
|---|---|
| Connector Type | DisplayPort Male (latching) on both ends |
| Cable Standard | DisplayPort 1.2 compliant |
| Available Lengths | 3' (90 cm), 12' (3.6 m), 25' (7.6 m) |
| Maximum Resolution (up to 12') | 4096 x 2160 @ 60 Hz (4K/60) |
| Maximum Resolution (25') | 4096 x 2160 @ 30 Hz (4K/30) |
| Wire Gauge | 28 AWG copper |
| Applications | Digital video interconnection in AV systems |
| Compatibility | DisplayPort-enabled sources and displays |
Compare Chart
| Aspect | Extron DisplayPort Series | Monoprice DisplayPort Cables | Cable Matters DisplayPort |
|---|---|---|---|
| Standard Compliance | DisplayPort 1.2 | DisplayPort 1.2/1.4 variants | DisplayPort 1.2/1.4 |
| Latching Connectors | Yes | Varies (some non-latching) | Some models latching |
| 4K/60 Hz Support Length | Up to 12' (3.6 m) | Up to 10-15' typical | Up to 6-10' for full 4K/60 |
| Longest Length Option | 25' (4K/30 Hz) | Up to 25'+ in some series | Up to 15-25' |
| Wire Construction | 28 AWG copper | Varies (often 28-30 AWG) | 28 AWG typical |
| Primary Use | Professional AV installations | Consumer/general use | Consumer/prosumer AV |
| Resolution Reliability | 4K Verified | Claims 4K support | Claims 4K/60 support |
| Secure Connection | Latching for lock | Standard friction fit | Varies |
FAQ
- What resolutions do the Extron DisplayPort cables support? Lengths up to 12' (3.6 m) support up to 4K @ 60 Hz (4096x2160), while the 25' (7.6 m) version supports up to 4K @ 30 Hz.
- Do these cables feature latching connectors? Yes, they include latching DisplayPort connectors for a secure, locked connection that resists accidental disconnection.
- What lengths are available in the DisplayPort Series? Options include 3' (90 cm), 12' (3.6 m), and 25' (7.6 m) to suit different installation distances.
- Are these cables compatible with DisplayPort 1.4 devices? They are DisplayPort 1.2 compliant and backward/forward compatible with most DisplayPort devices, though maximum performance aligns with 1.2 specs.
- What makes these cables suitable for professional AV use? Their 4K verification, latching design, and robust copper construction ensure reliable, high-quality signal transmission in demanding environments.
- Can these cables be used for multi-monitor setups? Yes, they support DisplayPort features like multi-stream transport when used with compatible hardware for daisy-chaining or multi-display configurations.
