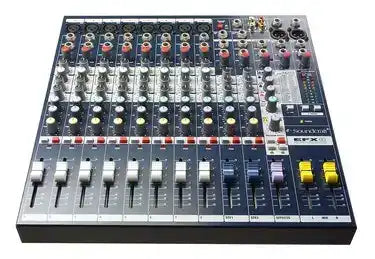

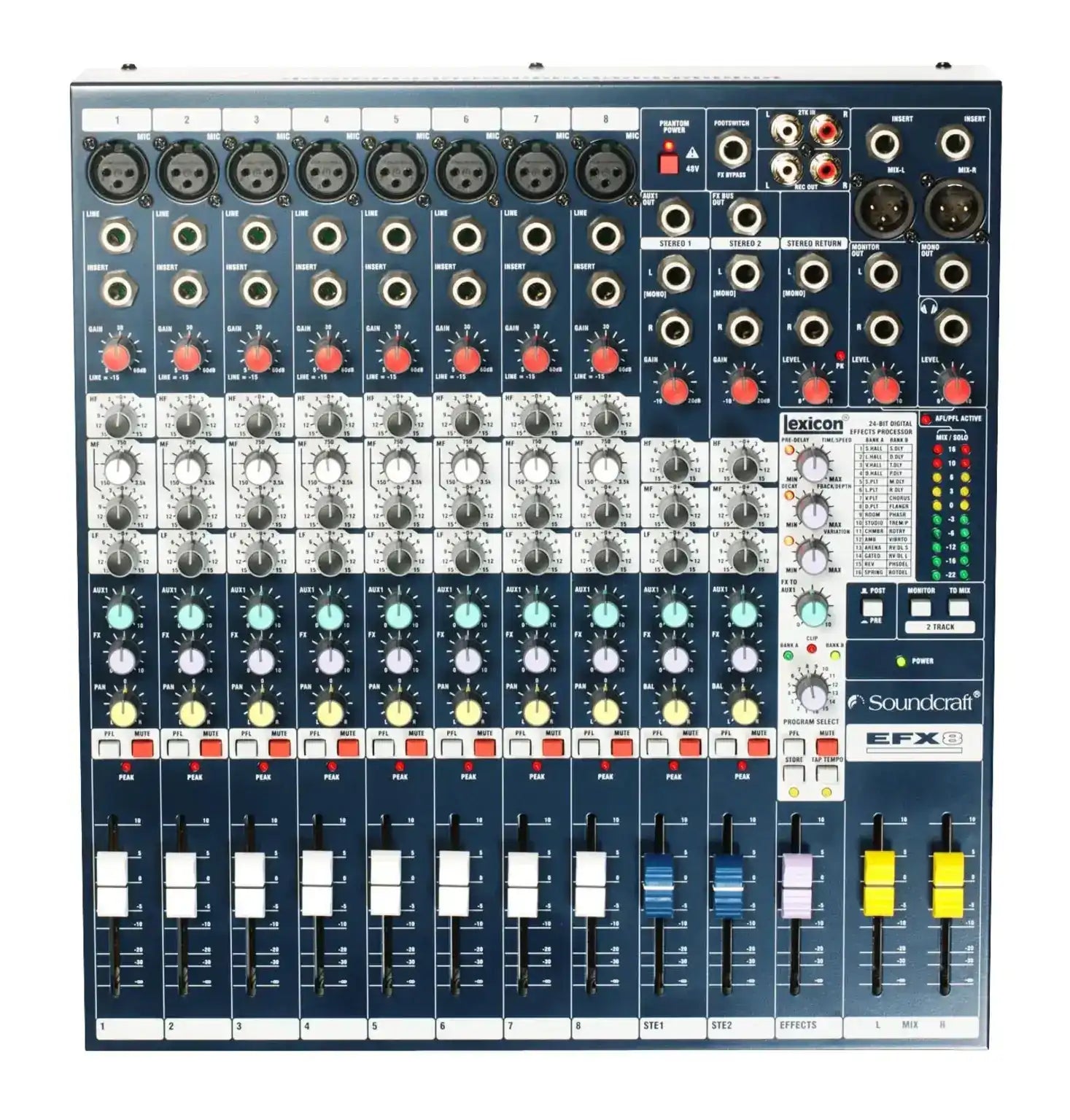

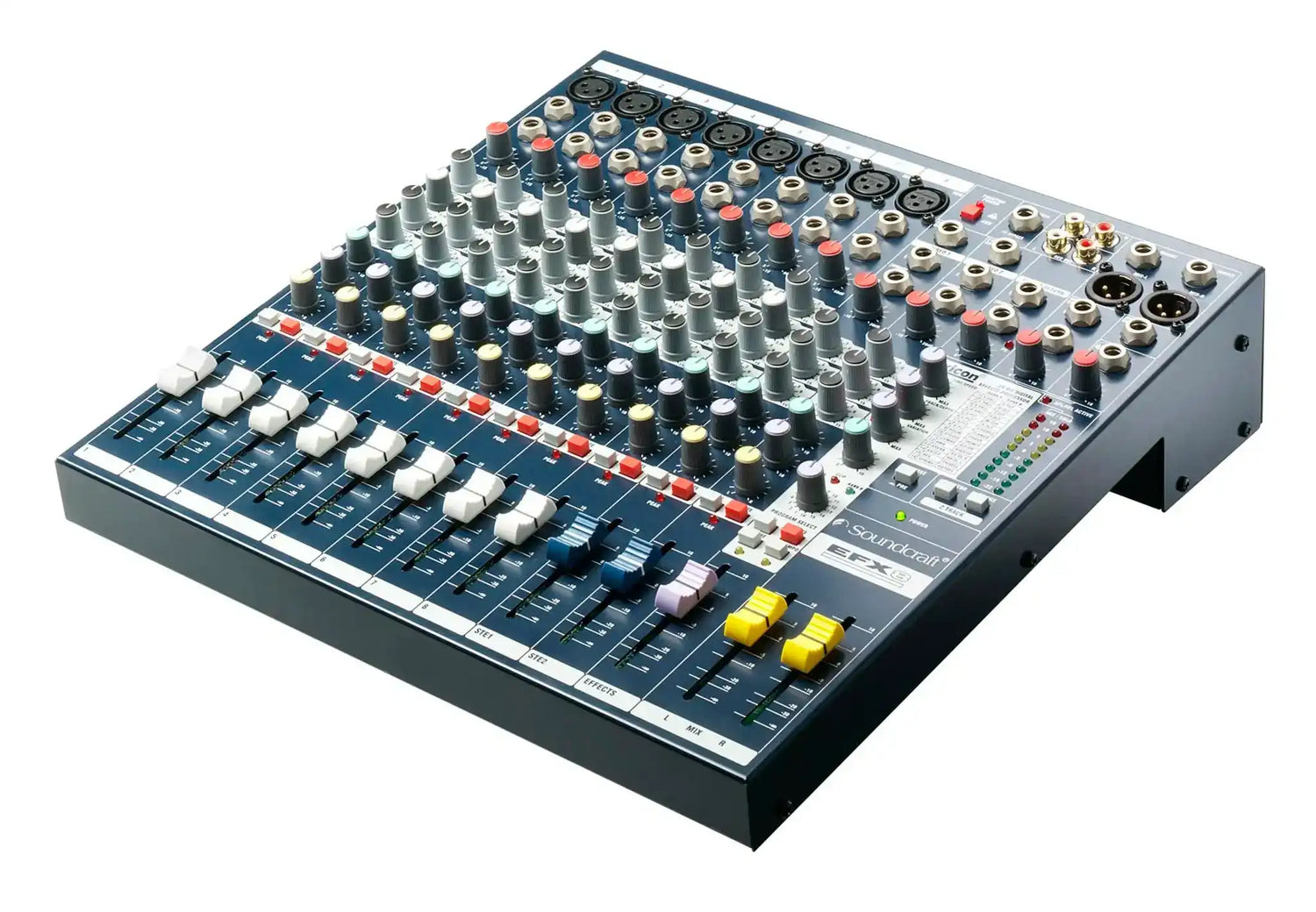

Soundcraft EFX8 – 8-Channel Analog Mixer with Lexicon Effects

Product Overview

The Soundcraft EFX8 is an 8-channel analog mixer with a built-in 24-bit Lexicon digital effects processor, designed for live music, houses of worship, and multi-speaker AV installations. It shares the same AudioDNA-based effects engine as the EFX12 and EPM-derived preamp platform, offering professional audio performance in a compact, rack-mountable form. The EFX8 is a practical choice for engineers who need onboard reverb and delay without connecting external effects gear. Its 8+2 channel layout covers the most common source counts for small-to-medium live sound setups.

Product Description

The EFX8 uses the GB30 mic preamp — the same design used in Soundcraft's larger LX7ii and GB Series professional consoles — providing transparent gain across a 55dB range with +22dB of headroom. The onboard effects section is powered by the Lexicon AudioDNA processor, the same chip used in the Lexicon MX400, offering 32 effects presets covering reverb, delay, chorus, and other programs including a karaoke preset. Tap tempo enables BPM-synchronized delay, and the user effects store function saves one custom preset for recall.

Each channel includes an FX send to route signal to the onboard effects bus, a 3-band EQ with swept mid (on mono inputs), and a TRS insert point for inline processing. The two stereo input channels feature 3-band EQ. A single configurable auxiliary bus handles monitor sends or external processing. RCA phono stereo inputs and record outputs connect consumer playback sources. Ten-segment LED output metering and a headphone output with level control complete the feature set. The EFX8 is rack mountable for installed AV deployments and is currently on sale at Creation Networks.

Key Features

• 8+2 Channel Frame — 8 mono XLR/TRS inputs plus 2 stereo channels for compact live sound setups.
• 24-Bit Lexicon Digital Effects Processor — AudioDNA chip delivers studio-quality reverb, delay, and chorus.
• 32 Effects Presets — Includes specialty programs and a custom karaoke preset.
• Tap Tempo — Real-time BPM synchronization for delay effects.
• GB30 Mic Preamp — High-headroom (+22dB), transparent design from Soundcraft's professional console range.
• 1 Configurable Auxiliary Bus — For monitor or outboard processor sends.
• TRS Insert Points on All Mono Inputs — Inline dynamics and EQ processing.
• 3-Band EQ with Swept Mid — On all mono input channels.
• RCA Phono Stereo I/O — Consumer playback input and record output.
• Ten-Segment LED Output Metering — Visual output level monitoring.
• Rack Mountable — Fits standard 19" racks.
• Headphone Output — Independent monitoring with level control.

Typical Applications

• House of Worship
• Music Venues
• Multi-Purpose Room
• Auditorium
• Training Room

Technical Specifications

Frequently Asked Questions

What is the difference between the EFX8 and EFX12?

The EFX8 has an 8+2 channel frame (8 mono inputs) while the EFX12 has a 12+2 frame (12 mono inputs). Both share the same Lexicon AudioDNA effects processor, GB30 preamps, and feature set.

Is the EFX8 rack mountable?

Yes. The EFX8 supports rack mounting, making it suitable for installed AV environments in addition to portable live sound use.

Does the EFX8 have phantom power?

Yes. 48-volt phantom power is available for condenser microphones on XLR inputs.

How many effects programs does the EFX8 have?

The EFX8 includes 32 effects presets covering reverb, delay, chorus, specialty programs, and a karaoke preset, with tap tempo and one user-storable effects setting.

Can the EFX8 be used in a multi-speaker system?

Yes. The configurable auxiliary bus and insert points allow signal routing to zone amplifiers or outboard processing for multi-speaker AV installations.
